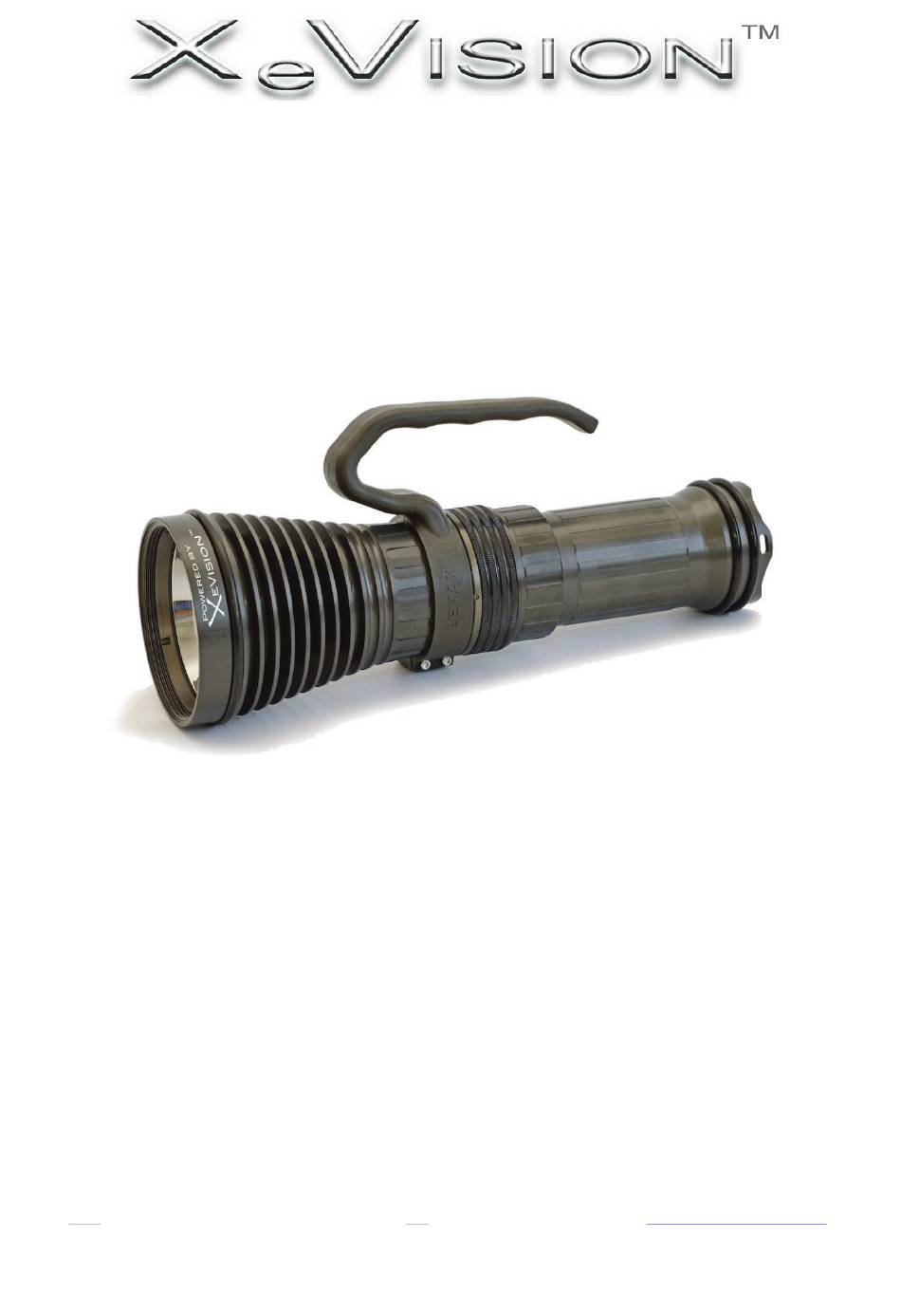

XeVision™ XeRay™ XV-LX50 HID Searchlight
User's Manual
Doc: XVLX50-HC-MAN – Version Sep 2013
Barn Burner on Steroids
XeVision
4245 Airport Rd.
Ogden, UT 84405-3301, USA
info: +1 (801) 622-7000
1-800-366-4415
fax: +1 (801) 622-7277
http://www.xevision.com
1
Advertisement
Table of Contents
Related Manuals for XeVision XeRay XV-LX50
Summary of Contents for XeVision XeRay XV-LX50
-
Page 1: Maintenance
HID Xenon & LED Lighting Technology for Aerospace, Military and Industry XeVision™ XeRay™ XV-LX50 HID Searchlight User‘s Manual Doc: XVLX50-HC-MAN – Version Sep 2013 Barn Burner on Steroids XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000... -
Page 2: Table Of Contents
Warranty ............................ 1 1 Product d isposal ........................... 1 1 Product o rigin .......................... 1 1 XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000... -
Page 3: For Y Our S Afety
• Do not disassemble the searchlight! It is designed to fulfill the demands for operation in extreme conditions. Disassembly not performed by professionals may result in product failure of sensitive internal parts of the searchlight. Contact XeVision for necessary repairs. - Page 4 Do not use the charger if the cable or any part of the charger has been damaged. Damaged parts should be replaced by XeVision. • Do not disassemble the charger. Any kind of repairs must be done by XeVision. Incorrect assembly or disassembly or other incorrect manipulation may cause short circuit and complete failure of the searchlight.
- Page 5 Warning Do NOT touch the gold contact areas of the battery. This could cause!" short • circuit and may damage the battery!!!!#$%&'()*!"+,$!+-".-,!"!/-,(0%-!$1!2$03!$(+,! 1/$4!3$%/!1()*-/,5 XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000 1-800-366-4415 fax: +1 (801) 622-7277...
-
Page 6: User´s M Anual
XeRay™ XV-LX50 : 1940 g [4.3 lb] Charger: 345 g [0.76 lb] Rechargeable batteries Life cycles: 1000 Charge time: Approx. 350 min (at 20°C) XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000 1-800-366-4415 fax: +1 (801) 622-7277... -
Page 7: Dimensions
IR Filter (Note: use 35 W Mode only due to excessive heat at 50 W) Yellow (fog) filter UV - Black-light filter (Note: use at 35 W mode only due to excessive heat at 50 W) Diffuser lens XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000... -
Page 8: Operation
6. Before connecting the battery back to the searchlight XV-XV-LX50, oil the sealing ring and also the screw thread if necessary. XeRay™ XV-LX50 charging – do not touch the gold contact circles! XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA... -
Page 9: On-Off Switch
35 W – Quickly rotate the dial counterclockwise 360 – Quickly rotate the dial in opposite direction of the selected wattage Note: Quick movements are necessary to switch the searchlight ON or OFF. XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA... -
Page 10: Additional Power Functions
This setting is defined by selection of switch 3 and switch 4, and will be released in the near future (status aug. 2013). It will control external power sources and remote control. Internal battery mode (factory setting) Switch 3 Switch 4 XeVision 4245 Airport Rd. Ogden, UT 84405-3301, USA info: +1 (801) 622-7000 1-800-366-4415 fax: +1 (801) 622-7277 http://www.xevision.com... - Page 11 The following apply only to users in European countries: • This product is designated for separate disposal at an appropriate collection point. Do not dispose together with household waste. • For more information, contact XeVision or the local authorities in charge of waste management. K&%L(6-!%&5E51! This product is assembled in USA by XeVision™.
