Suncorp S0380-0000 Instructions

Rivet Nut Installation Tool (S0380-0000) Instructions
Rivet Nut Installation Tool Kit Components
•
Rivet Nut Installation Tool
•
Wrench
•
Mandrel – 1/4"-28 RH
•
Mandrel – 1/4"-28 LH
•
Mandrel – 3/16" 10-24 RH
•
Mandrel – 1/4"-20 RH
•
Mandrel – 5/16"-18 RH
•
Mandrel – 3/8"-16 RH
Rivet Nut Installation Tool Features
1. Installation Knob
2. Mandrel Stem
3. Outer & Inner
Sheath
4. Locking Nut
5. Scale Identification
6. Mandrel Nozzle
SUNCOR STAINLESS, INC.
•
Mandrel – 1/4"-20 LH
•
Mandrel – M3 x .5
•
Mandrel – M4 x .7
•
Mandrel – M5 x .8
•
Mandrel – M6 x 1.0
•
Mandrel – M8 x 1.25
•
Mandrel – M10 x 1.5
•
Mandrel – M12 x 1.75
■
Rivet Nut Installation Tool (S0380-0000) Instructions
©2016 Suncor Stainless, Inc.
SUNCOR STAINLESS, INC.
Customer Service
(800) 394-2222
(508) 732-9191
Facsimile
(508) 732-9798
Web Address
www.suncorstainless.com
Mailing Address
Suncor Stainless, Inc.
70 Armstrong Rd.
Plymouth, MA 02360
Table of Contents
Rivet Nut Installation Tool Kit Components
Rivet Nut Installation Tool Features
Installation Steps
Changing the Mandrel
Manual Release of the Rivet Nut Installation Tool

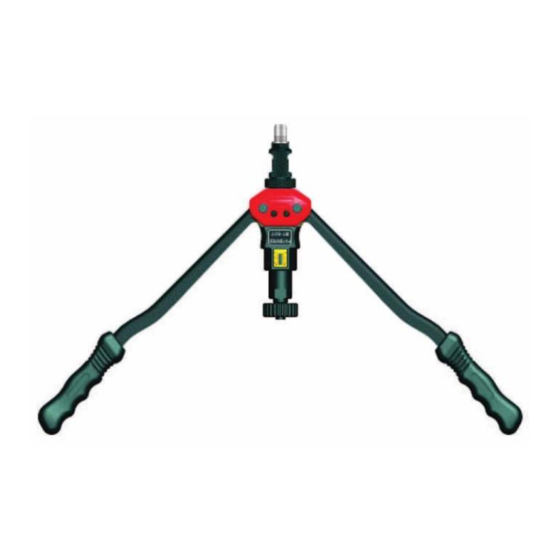

Figure A. Open the handles to thread the rivet nut onto the mandrel
stem.
Figure B. Rotating the outer sheath outward or inward will cause the
working stroke to become longer or shorter respectively.
■
www.suncorstainless.com
Contact Information
1
1
2
2
2
■
August, 2016
