Robus R888GZ3LED Quick Start Manual

Specification:

Installation:

1. Please note the requirement to dispose of Waste Electrical & Electronic Equipment separately from household
waste (WEEE marked with crossed out wheelie bin symbol).
2. Please consider your role in contributing to re-use and recycling by returning this product at end of life to a
collection centre for waste electrical equipment or a Civic Amenity site, or to a retail outlet from which you are
purchasing a replacement.
3. This equipment may contain substances that are hazardous to health and the environment if disposed of
carelessly. It is important that it is separated from normal household waste and recycled in the WEEE chain
4. The "crossed out wheelie bin symbol" on a product indicates this equipment must not be disposed of in normal
household waste, but should be disposed of according to local WEEE regulations
The Installation must be carried out by an electrician
LED Group
Western Retail Park
Nangor Road
Dublin 12
Ireland
Issue 1 300312

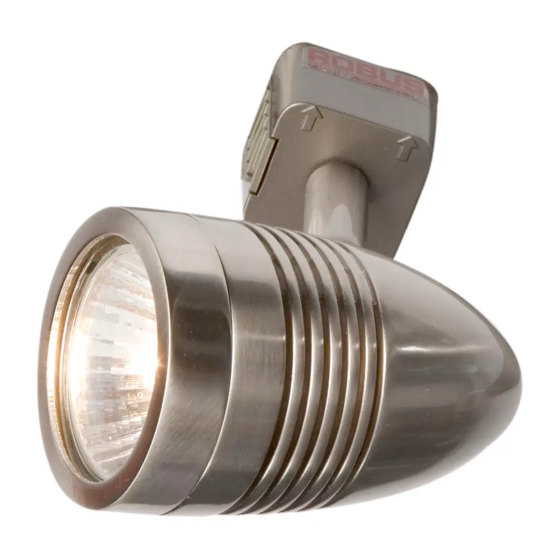

ACORN TRACKPACK SPOTLIGHT
C/W 3 x WARM WHITE 4W GU10
LED LAMPS
R888GZ3LED
Please read instructions before commencing installation
and retain for future reference
Protection against electric shock: Class I
Track must be earthed!
Lamp type:
Dimensions:
Temperature range:
Supply:
Suitable for mounting on normally flammable surface
Minimum distance from illuminated object is 0.5 metre
Complies with EN60598 (BS4533)
!Electrical products can cause death, injury or damage to property. If in any
doubt about the installation or use of this product, consult a competent
electrician.
1 Ensure mains supply is switched off
2 Fix track with countersunk screws to mounting
3 Fit live end adaptor (RLE-01/04) and dead end to track end, wiring live
end to a fused supply
4 To attach luminaires to the track, offer it up at 90° to the track and rotate until
parallel to the track and the lock tab engages. Note: The track is not
symmetric. There are two conductors on one side, and one on the other.
Check alignment of luminaire before rotating into position
5 Lamp installation and replacement:
!Ensure mains supply is off. !When operating luminaire is too hot to touch.
Switch off and allow to cool before undertaking any maintenance work.
Remove the front ring (if need). Insert lamp and replace ring

Information for the Product user

Tel: +353 1 7099000
Fax: +353 1 7099060
Email: info@led.ie
Website: www.led.ie
240V GU10
Overall depth 150mm
5°C < ta < 40°C
230/240V (from mains track)
ISO 9001:2008
Q UAL IT Y ASSU RE D CO MPANY
Page 1
