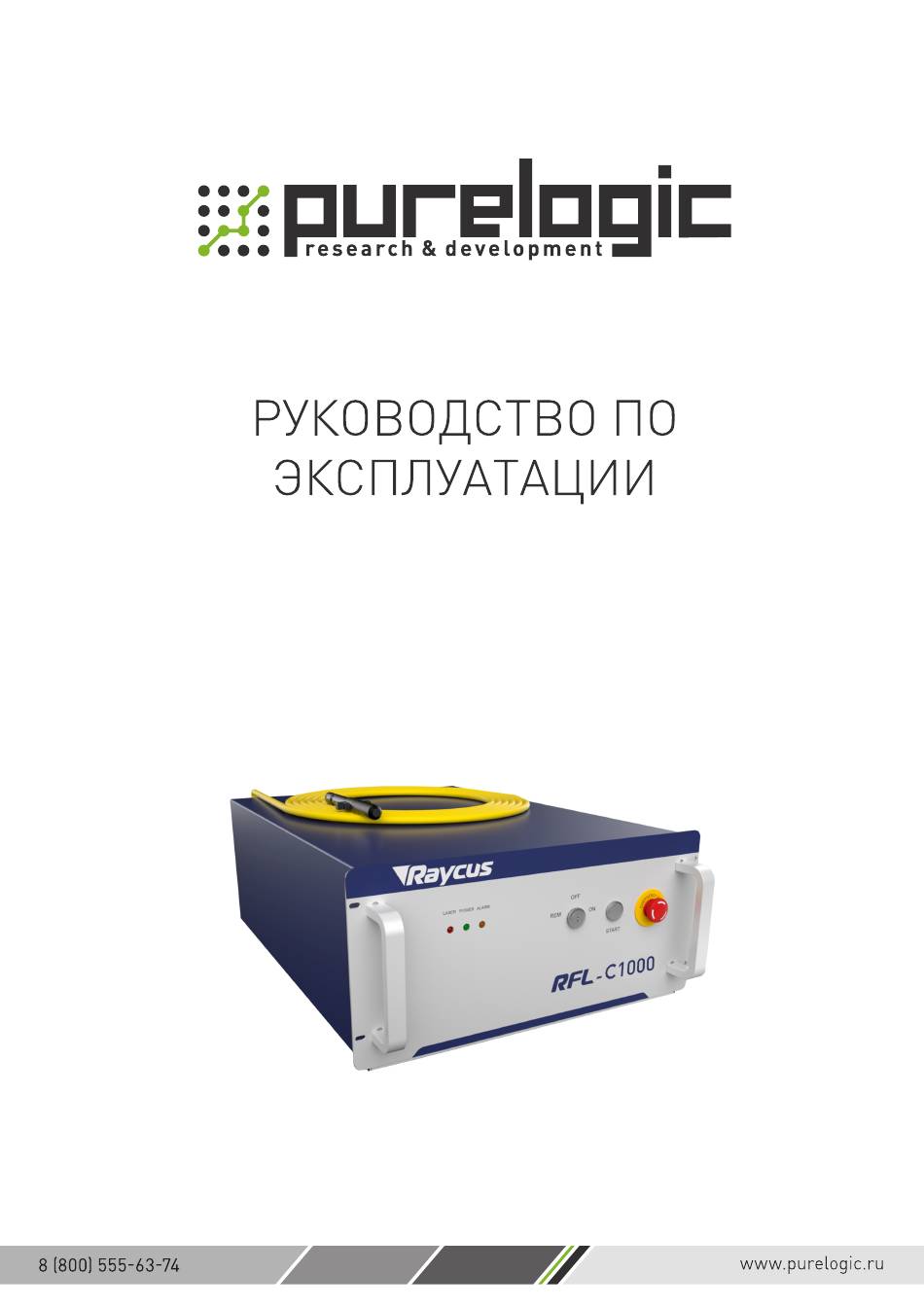

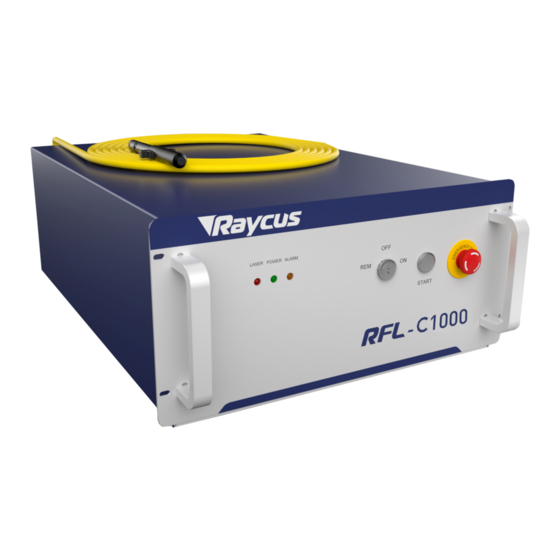

  • Page 1 Лазерный источник RAYCUS RFL-C1000W+H...

  • Page 2: Table Of Contents

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser TABLE OF CONTENTS 1 Safety Information........................4 1.1 Security Identifiers.........................4 1.2 Laser Safety Grade........................ 4 1.3 Security Identifiers.........................5 1.4 Optical Safety........................6 1.5 Electrical Safety........................6 1.6 Other Safety Rules.........................7 2 Product Description........................7 2.1 Features..........................7 2.2 Model description........................
  • Page 3 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 4.7 Control mode selection......................30 4.7.1 Control mode wiring diagram..................30 4.7.2 Stand-alone mode (internal control mode) (connect 4.6 in sequence)......31 4.7.3 External control mode (sequentially connected to 4.6)..........32 4.7.4 AD Mode........................

  • Page 4: Safety Information

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 1 Safety Information Thank you for choosing Raycus fiber laser. This User Guide provides important safety, operation, maintenance and other information. Please read it carefully before using this product. In order to ensure safe operation and optimal performance of the product, please follow the warnings, cautions, operating procedures and other instructions accordingly.

  • Page 5: Security Identifiers

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser  WARNING: Users must use appropriate laser goggles when operating this device. The laser goggles are selected according to the range of wavelength emitted from this product. Users must select the appropriate laser goggles according to the entire range of laser wavelengths.

  • Page 6: Optical Safety

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 2: Type 4 Laser 3: Class 2M Laser Product 1: Laser Output Head Product Label-1mW Red Laser 4: CE Authentication 5: ID Label 6: Laser Radiation 7: Electrical Hazard Hazard 1.4 Optical Safety...

  • Page 7: Other Safety Rules

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser  CAUTION: Wrong wiring mode or power supply voltage will cause an irrecoverable damage to the laser device. There are no devices that need to be used by operator in the laser. Please do not try to open the laser cover, otherwise it may cause electric shock and the warranty will be invalid accordingly.

  • Page 8: Model Description

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser  Excellent beam quality  High reliable and sealing  High power stability  Power continuously adjustable and fast switch response  Maintenance-free operation  High Electro-optical Conversion Efficiency ...

  • Page 9: Package Accessories

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Power indicator, including 100, 200L, 200, 300L, 300, 500, 750, 1000, 1500W respectively representing 100W; 170W; 200W; 250W; 300W; 500W; 750W; 1000W; 1500 power laser Wavelength, ‘B’ represents a wavelength of 1080nm Output cable length, unit meter, including 15 meters and 20 meters, also can be customized length Cooling method, ‘W’...

  • Page 10: Operation Environment

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser excessive bend to the cable will damage the instrument. 2.5 Operation Environment The operation conditions are listed as the following table: Table 3: The Operation Environment Conditions for the Laser Model 1000 220±10% V AC...

  • Page 11: Attentions

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 5）Do not look into the output head directly. Wear appropriate protective eye glasses all the time when operating the laser  Do not expose this product to high humidity (humidity> 95%).

  • Page 12: Specifications

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 2.7 Specifications Model C100 C200L C200 C300L C300 C500 C750 C1000 Test Conditions Optical Characteristics Nominal Output Power(W) 100 170 200 250 300 500 750 1000 Operation Mode CW/Modulated Polarization State Random...

  • Page 13: Installation

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 3 Installation 3.1 Dimensions 3.1.1 Overall dimensions of RFL-C1000 cutting laser Figure 2 shows the external dimensions of the RFL-C1000 laser. Figure 2 (a) Front view (Unit: mm) Figure 2 (b) Rear view (unit: mm)

  • Page 14: Size And Installation Of Output Optical Cable

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Figure 2 (c) Top view (Unit: mm) 3.2 Size and installation of output optical cable Raycus continuous wave fiber laser uses different laser output cables according to different laser models. 3.2.1 RFL-C1000 Output Optical Cable The output cables of Raycus RFL-C1000 cutting fiber lasers are self-made IQB output cables.

  • Page 15: Cooling System Installation And Requirements

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Figure 4 Dimensional drawing of welding IQB output optical cable  For IQB output optical cables, the two copper contacts (InterLock pins) on the output head must be shorted before the laser works, otherwise the laser will not work properly.
  • Page 16 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 1) Temperature setting of cooling water:  22±1℃（does not need to change in summer） 2) Requirements on Cooling Water:  Purified water should be used.  In order to prevent the growth of mold that may lead to blockage, adding alcohol solution to about 10% of the total volume is recommended.

  • Page 17: Installation Rules

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser cause irrecoverable damage to the laser.  Before staring the laser, the cooling system must work properly and the water temperature reaches a suitable temperature. 3.4 Installation rules 1) Place the product in an appropriate position, immobilize it if necessary.
  • Page 18 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 7) Please handle the laser output cable carefully, and do not receive vibration during the installation and disassemble. 8) Make sure the environment is clean, or the output head may be contaminated.

  • Page 19: Using The Product

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 4 Using the Product The Raycus continuous wave laser (with network port) has stopped using the super terminal. After the laser is powered on, there is no display on the super terminal. Please log in to the official website of Raycus to download the new version of the upper computer software and upper computer software instruction manual.
  • Page 20 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Figure 6 RFL-C1000 laser real panel 1. Alarm：Laser fault indicator 2. Laser：Laser output indicator 3. Power： Power Indicator, indicates that the power is switched on when the LED illumines.

  • Page 21: Power Connection

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 4.3 Power Connection  Before connecting the AC power supply, please check whether the laser model and the AC power supply provided are consistent with those listed in Table 3 or table 5.

  • Page 22: Interface Definition

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Table 7 Power connection requirements Model RFL-C1000 220±10% V AC Power supply 50/60Hz Power cord Power cord Three strands, marked L, N and PE respectively L->Phase line (brown) Label N ->Neutral (blue) description...
  • Page 23 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Input Electric NAME Function Typical current output Reserve interlock Short circuit Reserve interlock Reserve long-dista nce power supply Short circuit Reserve long-dista nce power supply Reserve Short emergency circuit stop...

  • Page 24: Rs-232 Serial Port

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Digital EGND 17, 18, 21 pin return ground Digital EX_RST Laser fault reset 5-24V <10mA input Laser Digital Laser fault output EVCC <100mA Error output signal External voltage for Digital EVCC output of Ready and...

  • Page 25: Ethernet Tcp / Ip Interface And Connection Steps

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser others None A three-core (RxD, TxD, GND) interface is used. For specific commands and descriptions, please refer to the software manual of the host computer or ask a Raycus technician for a communication protocol.

  • Page 26: Ethernet Tcp / Ip Interface And Connection Steps

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Table 11 Ethernet interface pin definition Feature Description Transmit Data+ Transmit Data- Receive Data+ Not Connected Not Connected Receive Data - Not Connected Not Connected If conditions permit, please use this interface first to get better communication stability.
  • Page 27 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Fourth Step: Configure the Ethernet network connection on the PC side, select "Use the following IP address:", and manually assign the IP address. The PC side IP address must be on the same network segment as the laser IP address, and assign a subnet mask address.

  • Page 28: Installation Instruction

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Figure 10 Ethernet connection steps 4.5 Installation Instruction 1) Take out the laser carefully, move it to the installation position, remove the handle, and use the handle to install the hole position to fix it with screws.

  • Page 29: Start Operation Sequence

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser After installing and arranging the output optical cable, remove the protective cap, and check whether the output lens is clean again, and then install the output head; 4) Connect the laser cooling water pipe;...

  • Page 30: Control Mode Selection

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 4.7 Control mode selection 4.7.1 Control mode wiring diagram RS232 or Ethernet Connector Control card AC input/ regulator Figure 11 Wiring diagram in RS-232 mode Note: In the above mode, the upper computer of Raycus should be used to modify the mode: turn off the external red light control, external light out enable and external AD, and only keep the modulation mode.

  • Page 31: Stand-Alone Mode (Internal Control Mode) (Connect 4.6 In Sequence)

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser RS232 or Ethernet Connector External red laser control External enable Control card AC input/ regulator Figure 12 Wiring diagram in AD mode 4.7.2 Stand-alone mode (internal control mode) (connect 4.6 in sequence) 1) Turn on the rocker switch, and the panel "power"...

  • Page 32: External Control Mode (Sequentially Connected To 4.6)

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 6) The serial port or the Ethernet interface sends a shutter opening command to output the laser, and sends a shutter closing command to turn off the laser.

  • Page 33: Ad Mode

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 7) Set laser power (laser power is set by 0-10V analog when AD mode is enabled, laser power is set by serial port or Ethernet when AD mode is off) 8) Send a light enable signal to the laser in one of the following ways ●Interface gives light enabling signal (connect 24V between pin18 and...

  • Page 34: Controlling Time-Series Chart

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 4.7.5 controlling time-series chart Figure 13 Standalone mode—Continuous sequence diagram Figure 14 Standalone mode – Pluse sequence diagram Raycus User Guide | Using the Product...

  • Page 35: Red Light Control

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Figure 15 Modulation—sequence diagram Figure 16 Gate mode –sequence diagram 4.7.6 Red Light Control Turn on the rocker switch, the green "POWER" indicator light is on, wait for 20s, the laser enters the red-light external control mode, and a high level of 5-24V is given before the 17-20 pin.

  • Page 36: Turning Off The Laser

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser  Laser indicator light output simultaneously Turning off the laser: Please turn off the laser in the following sequence 1) Turn off the laser output enable 2) Turn off the rocker switch 3) Turn off the chiller 4) If the laser is not equipped with air conditioner, please ignore this step;...

  • Page 37: Common Alarms And Solutions

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser 5 Common Alarms and solutions 5.1 Alarm display Connect the computer and open the PC software (download the PC software and its instruction manual, please log on the Raycus official website), after the laser and client software establish normal communication.
  • Page 38 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Table12 Error instructions and possible solutions Error instructions and possible solutions Alarm message Instruction: Internal clock abnormal System Timer Alarm Solutions: When this alarm occurs, please contact Raycus directly Instruction: This alarm occurs when the light exit button on the front panel of the laser has been pressed before powering on...
  • Page 39 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Instruction: The laser will get this alarm when it can not detect any laser light signal. Laser out alarm occurs only when the laser is emitting light Laser OutAlarm Solutions: Restart the Device.
  • Page 40 Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser Instruction: Laser low / high temperature alarm occurs when the sensor in the laser detects that the internal temperature of the laser is abnormal.A high-temperature / low-temperature error occurs when the temperature at the monitoring point exceeds the set upper / lower limit.

  • Page 41: Warranty, Return And Maintenance

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser In addition to the above, if there are any other questions or errors, please contact Raycus to get help. 6 Warranty, Return and Maintenance 6.1 General Warranty Raycus warrants that all Raycus fiber laser products areconformed to applicable product specifications under normal use and are free from defects in materials and workmanship.

  • Page 42: Service And Repair

    Wuhan Raycus Fiber Laser Technologies Co., Ltd User Guide of 1000W CW laser  WARNING: It is the customer’s responsibility to understand and follow operating instructions in this User Guide and specifications prior to operation-failure to do so may void this warranty. Accessories and fiber connectors are not covered by this warranty.
