- Page 2 PRACTICE SAFE SOUND Continuous exposure to sound pressure levels over 100dB may cause permanent hearing loss. High powered auto sound systems may produce sound pressure levels well over 130dB. Use common sense and practice safe sound. PRATIQUEZ UNE ÉCOUTE SANS RISQUES Une exposition continue à...

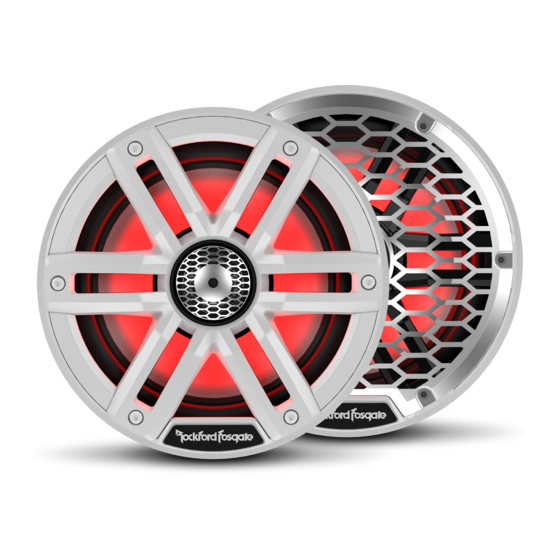

- Page 3 M2-65 M2-8 M2-8H M2-10H M2-TS Model M2-65B M2-8B M2-8HB M2-10HB 6.5” 8” 8” 10” 1” Nominal Size - inch (mm) (165mm) (203mm) (203mm) (254mm) (25.4mm) Description 2-Way 2-Way 2-Way 2-Way 1-Way Nominal Impedance 4Ω 4Ω 4Ω 4Ω 4Ω (Ohms) Frequency Response (Hz) 40-24kHz 35-24kHz 20-25kHz...
- Page 4 Model M2-65 M2-8 M2-8H M2-10H M2-65B M2-8B M2-8HB M2-10HB Overall Diameter 7.05” 9.07” 9.07” 11.53” (179.12mm) (230.4mm) (230.4mm) (292.8mm) Screw Mounting 6.12” 7.76” 7.76” 10.08” Diameter (B) (155.5mm) (197mm) (197mm) (256mm) Mounting Screw 6@60° 6@60° 6@60° 6@60° Angle (C) Overall Height 3.54”...
- Page 7 Flush Mount 0.9” 2.1” 0.4” (23mm) (54mm) (9mm) 1.8” (44mm) Optional Horn Loading Mounting Flange 2.4” Dia. (60mm) 4.3” (110mm) 3.9” Dia. (100mm) 2.8” 3.6” (71mm) (91mm) 2.8” 0.3” 1.4” (71mm) (6mm) (37mm) Crossover 1.3” (33mm) 3.7” (93mm) 1.5” (39mm) 4.3”...
- Page 8 COLOR OPTIX™ WIRING OPTIONS LED OUTPUT COLOR CONNECT THIS COLOR WIRE TO GROUND GREEN GREEN BLUE BLUE YELLOW RED & GREEN PINK RED & BLUE AQUA GREEN & BLUE WHITE RED, GREEN & BLUE Connect colored wires on right to make output color on left.
- Page 10 Flush Mount Clamp Use tip of small flat screwdriver to remove tweeter Panel Flush Mount Clamp Use tip of small flat screwdriver to remove tweeter Optional Horn Loading Mounting Flange Panel Retainer Tweeter O-ring Optional Horn Loading Mounting Flange Flange Retainer Tweeter O-ring...
- Page 11 Add On M2T-S Tweeter with M2 Speaker Full-Range Speaker (M2) Full Range Amplifier Tweeter Crossover 2Ω - When above 3KHz NOTE: Your amplifier needs to be 2Ω stable per channel when wired in this configuration. Individual Tweeter Full Range Amplifier Tweeter Crossover 4Ω...
- Page 13 Installation assistance available at...
