Summary of Contents for AREQUIPMENT P500

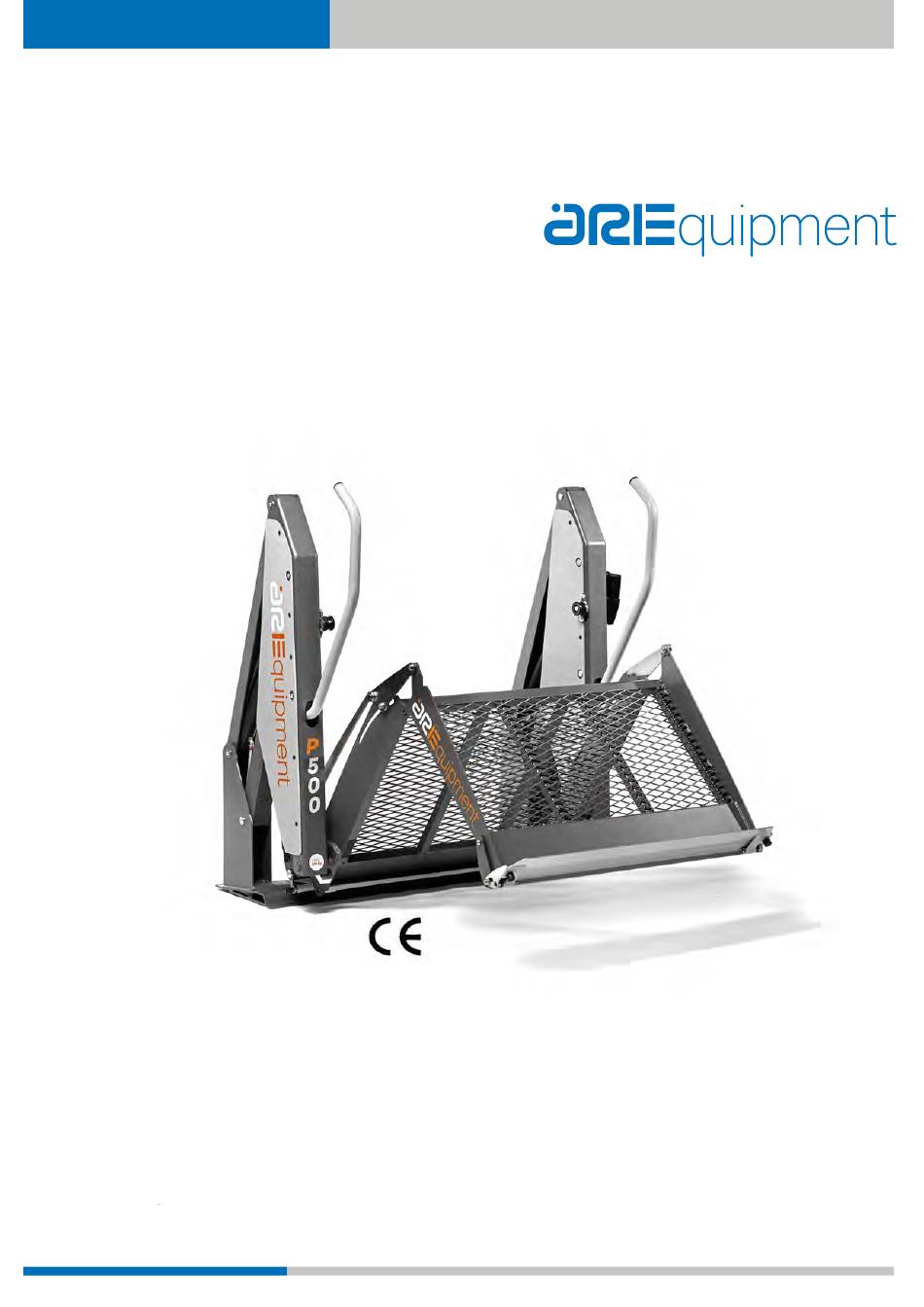

- Page 1 Wheelchair lift USE AND MAINTENANCE MANUAL Patented MAN AR 56/05/16/00 MAN AR (Manual Reference /Month of Revision/ Year of Revision / Revision)
- Page 2 4411-701 Canelas VNG Portugal T. +351 227 157 100 F. +351 227 121 144 autoribeiro@autoribeiro.com South delegation Rua Olival Minas, nº. 7 Quintanilho Apartado 02, EC Vialonga 2626-908 Vialonga T. +351 210 998 814 Use and Maintenance Manual- P500 / Weelchair lift...
- Page 3 TAll the information for the operator and his competence. There is also the description of the unit movements. Section E (Maintenance) All the information related to the unit regular maintenance Section F (Warranty) Use and Maintenance Manual- P500 / Weelchair lift...
-
Page 4: Table Of Contents
C.03 Safety devices C.04 Emergency SECTION D OPERATOR D.01 Necessary requirements SECTION E MAINTENANCE E.01 General instructions for the maintenance E.02 Frequence of maintenance E.03 Service table E.04 Disposal SECTION F WARRANTY F.01 Warranty Use and Maintenance Manual- P500 / Weelchair lift... -
Page 5: Section A Information
This is used to inform the operator about situations or conditions that may result dangerous for himself or for the load. DANGER Way of use may result dangerous for the operator or other person in the surroundings of the unit. Use and Maintenance Manual- P500 / Weelchair lift... - Page 6 The patented working system is actuated by a remote control which releases the opening a nd lowering of the platform till it reaches the ground and the subsequent lifting and closing of the platform. It works by an electro-hydraulic box powered by the vehicle battery. Use and Maintenance Manual- P500 / Weelchair lift...
- Page 7 Section A.03 (stickers and plates) Use and Maintenance Manual- P500 / Weelchair lift...
-
Page 8: Information For The User
- Avoid using the lift if anomalies in the systems are noticed. - Stop any type of operation if a risk of fall for the disabled person or di iculties by the operator are noticed . Use and Maintenance Manual- P500 / Weelchair lift... - Page 9 The operator must know the safety rules, the relevant devices and the correct usage of the controls. Responsibility: The operator is directly responsible for the proper unit use ,maintenance and any action related to the above-mentioned uses . Use and Maintenance Manual- P500 / Weelchair lift...
-
Page 10: Section B Performances And Specifications
EN 12182-2012 Section B.02 (Technical features) Power 12/24 VOLT Weight capacity 360 KG Max lifting height 110 cm Total weight of the unit 135 KG Motor Power 0.5 kW Emergency pump YES Use and Maintenance Manual- P500 / Weelchair lift... - Page 11 Section B.03 (Dimensions) 1030 mm 1030 mm 1250 mm 1250 mm 350 mm 350 mm 1170 mm 1170 mm 800 mm 800 mm Use and Maintenance Manual- P500 / Weelchair lift...
- Page 12 Secção B.04 (Diagramas) POWER EMERGENCY BUTTON PRESSURE SWITCH BOMB ELECTROVALVE ENTRY HOME SECONDARY PANEL LIGHT Use and Maintenance Manual- P500 / Weelchair lift...
-
Page 13: Controls And Movements
CONTROLS: The remote control which is connected with the electric box allows the operator to control the unit from a safety distance . It works when the main switch is in “ON ” position. Button 1. PLATFORM OPENING /LOWERING. 2. LIFTING/PLATFORM CLOSING. Use and Maintenance Manual- P500 / Weelchair lift... -
Page 14: Safety Devices
2 again and keep it pressed until the complete platform closing. Section C.03 (Safety devices) The wheelchair lift P500 is equipped with special safety devices: - Outer ramp, it allows the wheelchair to get onto and out of the platform; it is positioned... -
Page 15: Emergency
LIFTING/CLOSING - Make sure tap (2) is perfectly closed. Introduce the supplied pipe into the dedicated housing (1) ,and move it vertically to lift and close the platform. Use and Maintenance Manual- P500 / Weelchair lift... -
Page 16: Section D Operator
. Once the di erent parts of this manual have been read and understood, the operator should try the lift in EMPTY conditions several times in order to get acquainted with the movements and controls. Use and Maintenance Manual- P500 / Weelchair lift... -
Page 17: Section E Maintenance
- check the electrical connections - lubricate the platform hinges. Every 12 months: - check the seal of oil cylinders; - Check the oil level in the tank when the platform is at the ground level. Use and Maintenance Manual- P500 / Weelchair lift... -
Page 18: Disposal
Manufacturer has no responsibility if the unit installation has not been carried out correctly and if the instructions of this manual have not been followed properly. Use and Maintenance Manual- P500 / Weelchair lift...
