Stylo Heavy-Duty
Compatibility Kit
Installation Guide

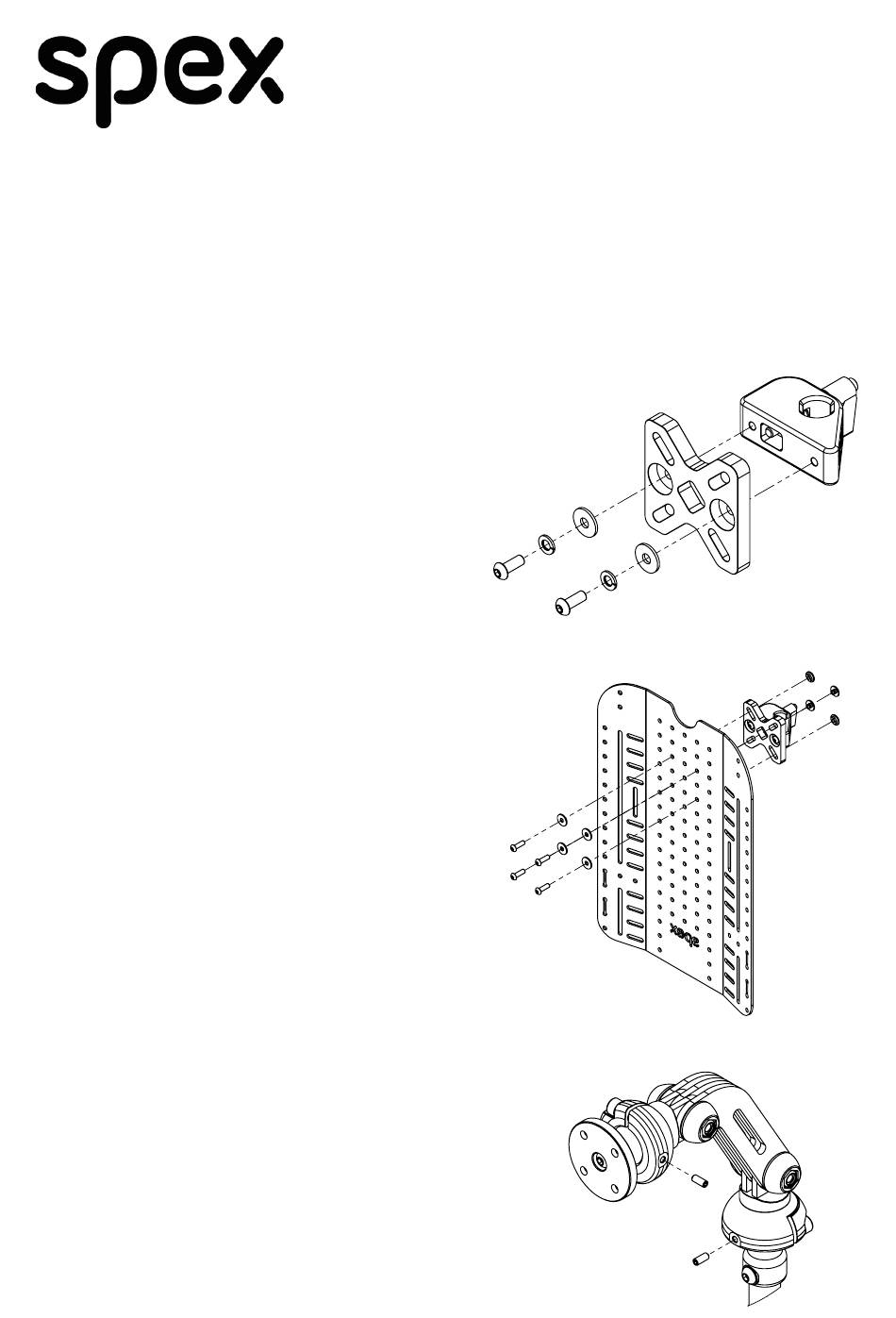

1. Attach the Mounting Block to the
Stylo HDCK Plate, using the M6 x
25mm screws and washers that
come with the Mounting Block.
Use a 4mm hex key to tighten the
screws.
2. Attach the Stylo HDCK Plate to
the Back Support, using the M6 x
25mm bolt and washers provided in
the fastener kit.
Use a 4mm hex key to tighten the
bolts.
3. With the ball clamped in the
Stylo 160 or Stylo 260 mechanism,
insert the M4 x 10mm grub screws
into the threaded hole opposite the
clamp. Tighten against the ball to
further lock the ball. Use a 2mm
hex key to tighten the screws.
A
B
This is a supplementary installation guide,
for full information and warnings refer to
Head Support User Manual provided with
your Head Support.
