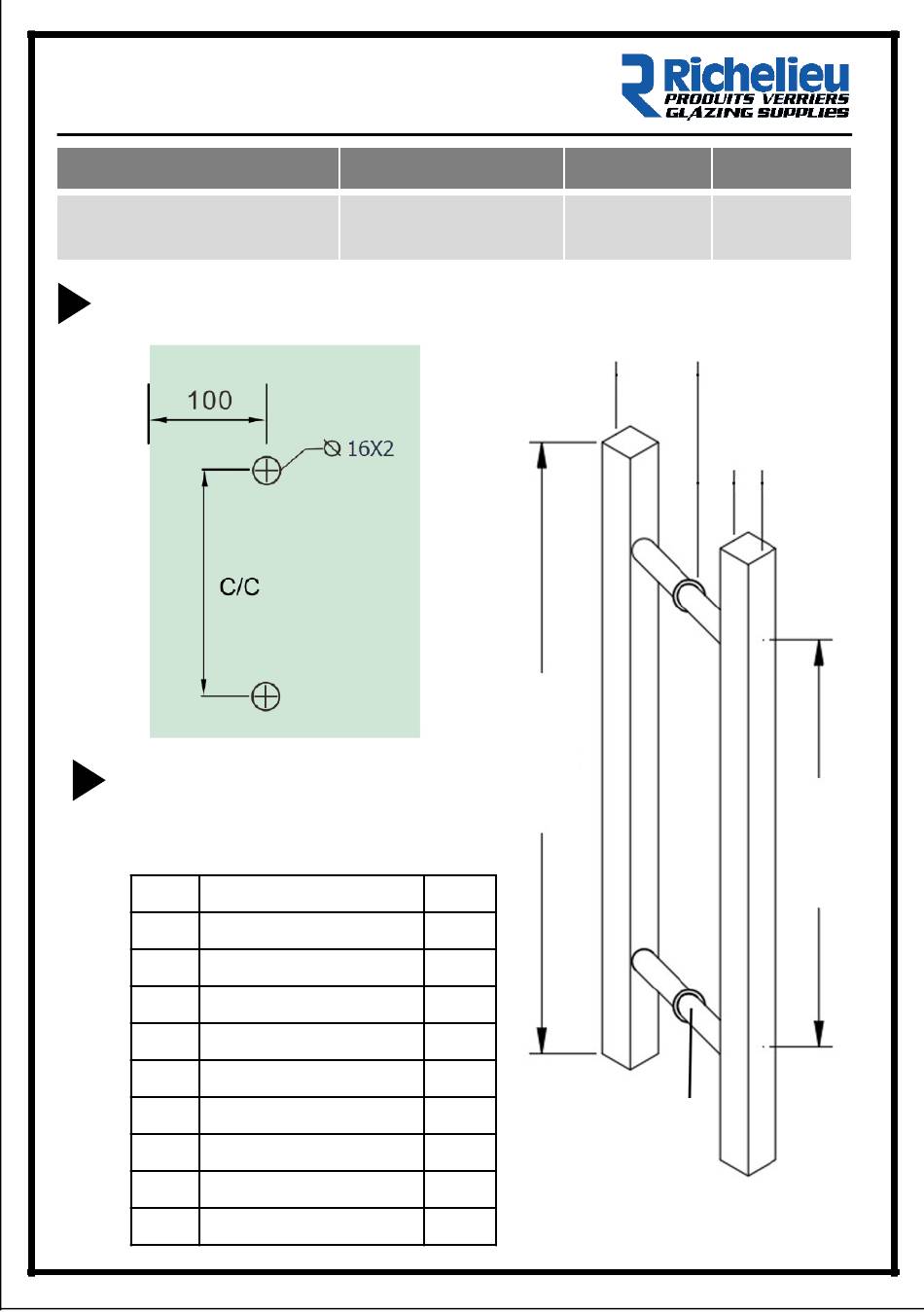

Sqaure Ladder Handle
Code
701SQ32R36xxx
Measurements
*
*mm
Components
#
1
2
3
4
5
6
7
8
9
Material
SS316
*
Name
Exterior Handle
Interior Handle
Gasket
Metal Washer
Set Screw
Collar
Screw M6x50mm
Screw M6x90mm
Allen Key 3mm
(36'')
914 mm
(3-1/4'')
H
Qty
1
1
4
4
4
2
2
2
1
H
C/C
(24'')
609 mm
82 mm
(1-1/4'')
32 mm
C/C
Ø (1'')
25.4 mm
Advertisement
Table of Contents
Related Manuals for Richelieu 701SQ32R36 Series
Summary of Contents for Richelieu 701SQ32R36 Series
- Page 1 Sqaure Ladder Handle Code Material (36’’) (24’’) 701SQ32R36xxx SS316 914 mm 609 mm Measurements (3-1/4’’) 82 mm (1-1/4’’) 32 mm Components Name Exterior Handle Interior Handle Gasket Metal Washer Set Screw Collar Ø (1’’) 25.4 mm Screw M6x50mm Screw M6x90mm Allen Key 3mm...
- Page 2 Square Ladder Handle Installation Install the exterior handle as shown with one gasket and metal washer on each side of the glass. *Philips screwdriver not included *Use the 50mm screw for glass doors 10-12mm thick *Use the 90mm screw for wood doors 35-50mm thick Install the interior handle onto the collars.
- Page 3 Poignée échelle carrée Code Matériel (36’’) (24’’) 701SQ32R36xxx SS316 914 mm 609 mm Dimensions (3-1/4’’) 82 mm (1-1/4’’) 32 mm Composantes Qté Poignée extérieure Poignée intérieure Joint Rondelle en metal Vis d’assemblage Collier Ø (1’’) 25.4 mm Vis M6x50mm Vis M6x90mm Clé...
- Page 4 Poignée échelle carrée Installation Installez la poignée extérieure comme illustré avec un joint et une rondelle métallique de chaque côté du verre. *Tournevis Philips non inclus *Utilisez la vis de 50 mm pour les portes en verre de 10-12 mm *Utilisez la vis de 90 mm pour les portes en bois de 35-50 mm Installez la poignée intérieure sur les colliers.
