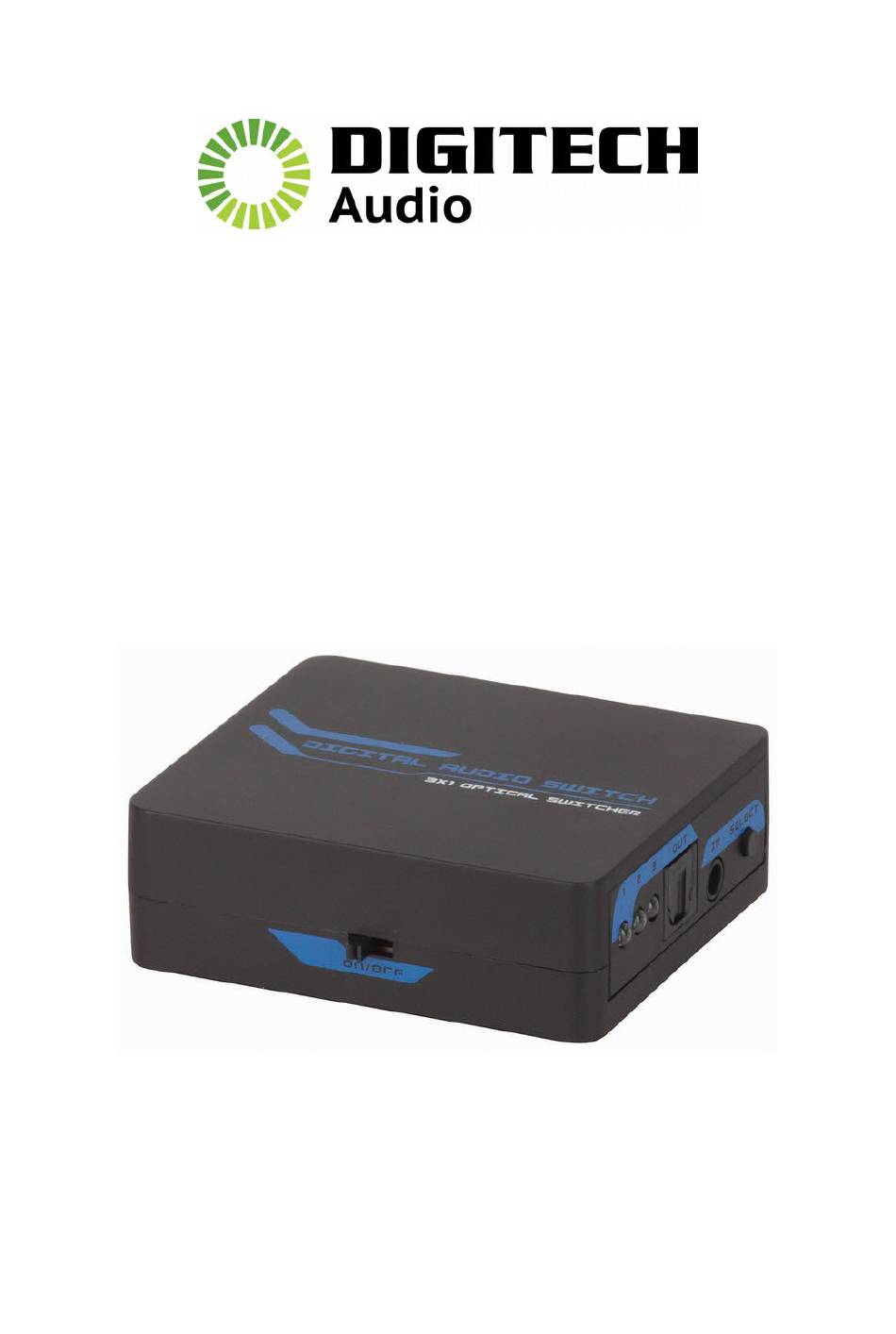

- Page 1 TOSLINK AUDIO SWITCH AC-1594 USER MANUAL...

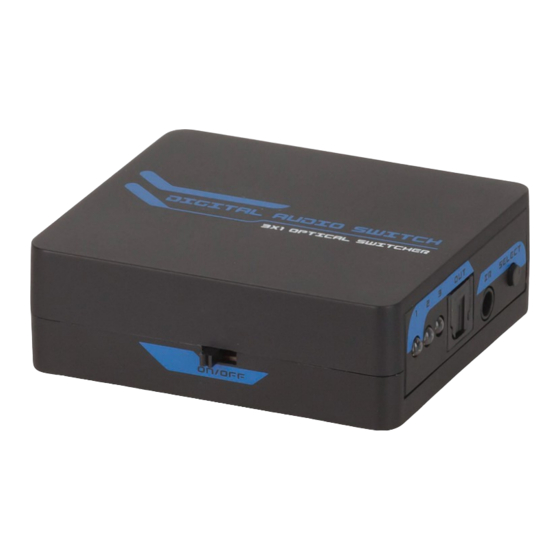

- Page 2 This Digitech Toslink Audio Switcher with Infrared enables you to connect three digital optical Toslink sources – such as a DVD player or PS4 - to one optical Toslink input on your AV amplifier or TV. Please refer to the following instructions for how to use the switcher.
- Page 3 NOTE: • If no sound is detected; 1) Check the cables are connected securely 2) Ensure the connected equipment is in good working order 3) Check the signal source is on 4) Check the volume is turned up to the correct level BOX CONTENTS 1 x TOSLINK Switch...
- Page 4 SPECIFICATIONS Supported Audio Format: LPCM2.0/DTS Dolby-AC3 Peak Wavelength: 650nm Max Baud Rate: 16Mbps Output Cable Distance: ≤40m Power Supply: USB Power Cable Operating Temp: 0°C~40°C Operating Humidity: 5~90% RH Dimensions: Switch: 60(L) x 54(W) x 20(H)mm Remote: 85(L) x 40(W) x 5(H)mm USB Cable: 700mm long IR Extender/Receiver: 470mm long DISTRIBUTED BY:...
