Summary of Contents for MORPHO SAFRAN

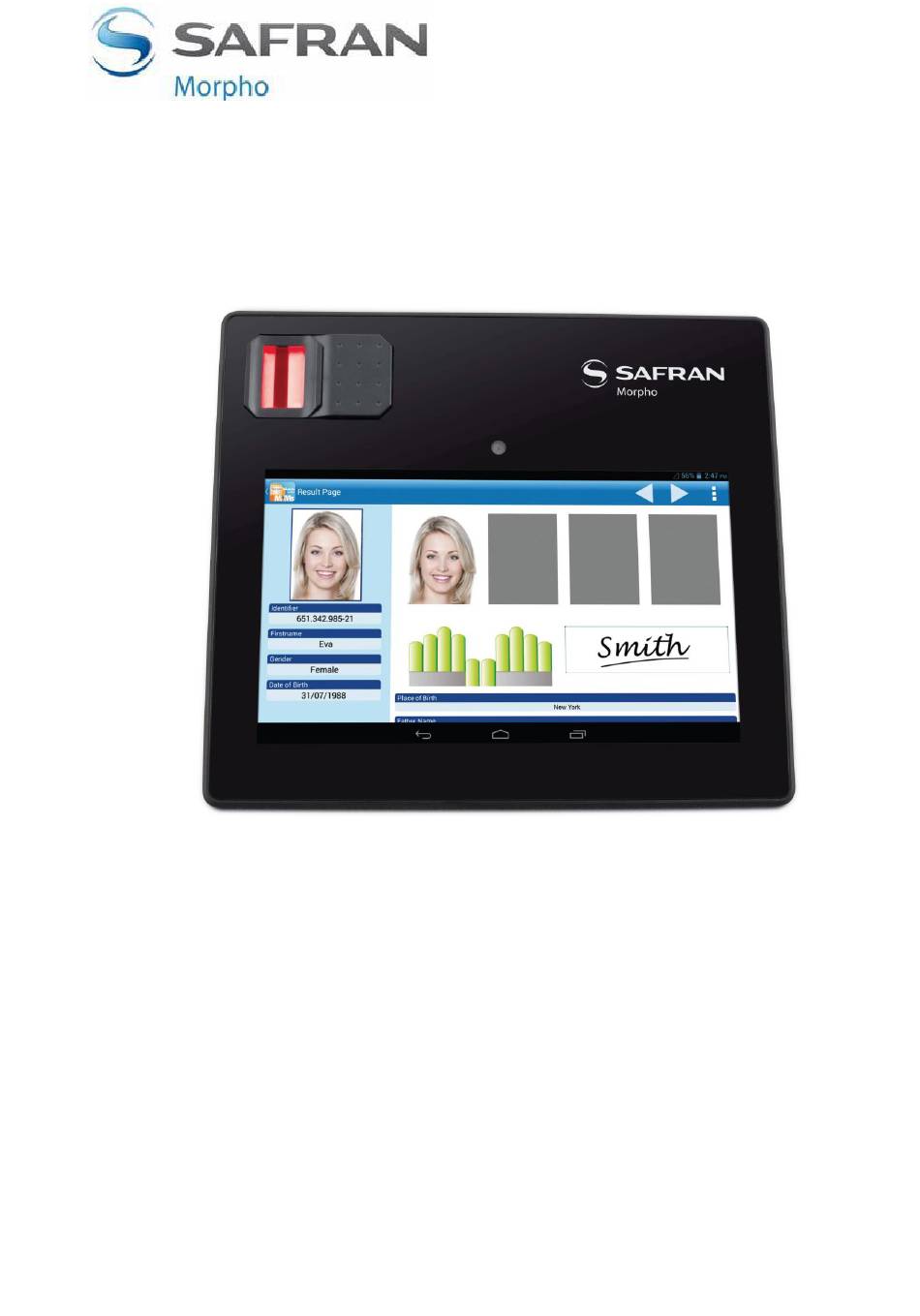

Page 1 USER GUIDE Document Number: SSE-0000101061-03...
Page 2 Information in this document is subject to change without notice and does not represent a commitment on the part of Morpho. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying or recording, for any purpose without the express written permission of Morpho.
Page 3: Table Of Contents
SECTION 6 Recommendations ................21 Safety ....................21 Batteries ....................23 FCC Conformity Declaration................. 23 SECTION 7 Technical specifications ..............25 SECTION 8 Annex................... 27 SECTION 9 Glossary ..................30 Page 1 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 4: Introduction
NOTE Fingerprint sensor is FBI and STQC certified. Limited Warranty The device comes with a limited warranty of one year from the date of original purchase. Page 2 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 5: Do's And Don'ts
The device is neither waterproof nor water resistant. Please keep it away from water. ADVICE Charging with the standard adapter using AC mains will be faster compared to charging the device using a USB host (for e.g. Personal computer). Page 3 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 6 Do not disassemble or attempt to repair the unit or components. Do not attempt to charge the device from USB Type A port. Do not use the Morpho AC Charger outdoors. WARNING Fingerprint sensor cover should not be opened. If the Fingerprint sensor doesn't work, please contact Morpho support.
Page 7: Presentation
Product images are for illustration purposes only. Actual product may differ from the images shown in the user guide. Specifications are subject to change without notice. Morpho may make changes to specifications and product descriptions at any time, without notice.
Page 8 To scan various electronic documents. LED charging To indicate that the device battery is indicator charging or fully charged LED Red color – Charging LED Green color – Fully charged. Page 6 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 9 To insert or remove the SIM card. microSD card slot To insert or remove the microSD card. Rear camera (5MP) To capture pictures and videos. with LED flash Loud speaker Audio output. USB docking connector Page 7 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 10 Audio jack (3.5 mm) Audio output/input peripheral. Power ON / OFF To switch ON / OFF the device. button Volume UP / DOWN To increase or decrease the volume. keys Page 8 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 11 Open the list of recent applications and to Recent Apps close applications running in background. Indicator icons Icon Definition Wi-Fi connected Bluetooth feature activated GPS-based services in use Connected to computer Airplane mode Page 9 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 12: Getting Started
Observe the charging indicator LED on your device to know when it is completely charged. Red LED light – The device is charging Green LED light – Device is fully charged. Page 10 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 13 It may also charge slowly when you connect it to a USB 2.0 port on your computer. How to save battery 1. By ensuring un-used communication features or radio links are 'OFF'. 2. Use Auto-brightness. 3. Usage of sleep mode. Page 11 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 14: Switching On/Off And Unlock The Device
NOTE Different screen/device unlocking mechanisms configured through the Settings menu. Go to Settings  Security The different screen unlock mechanisms are Slide, Pattern, PIN and Password. Page 12 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 15: Definition For The Icons Of The Functions
Show current power status Back Google search Notifications Menu Note when the system finds new devices Menu for Functions Block Speech to text Bluetooth, Wi-Fi, EDGE/3G, Power, Time Status Bar Page 13 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 16: Touch Screen
The touch screen is equipped with a screen guard protecting NOTE the screen from scratches and marks. In case the screen guard is damaged, please contact Morpho support for the replacement of screen guard. 5. Installing Modules SIM CARD: Turn the device OFF pressing the “POWER”...
Page 17 Do not pull out the card when operating (reading, copying), or it may cause data error. Do not use the microSD card under high temperature condition. Keep the microSD card far from liquid and erosive materials. Page 15 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 18 Push the SAM card into the slot until it clicks into the place. To remove the SAM card, push it gently into the slot. Release your finger when SAM card clicks out of place. Page 16 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 19: Device Interfaces
The USB connector on the device is used as USB Host. (2) MicroUSB Type B 2.0 OTG connector The micro USB connector on the device is used as USB Host and Slave. Page 17 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 20: Instructions For Use
To scan the card through contactless, proceed as follows: Screen Action Flash the card on or closer to SAFRAN Morpho logo. Note: The types of NFC tags which can be read by the contactless sensor are given below. 1) Type 1 & 2 (based on ISO/IEC 14443-A)
Page 21: Usb Host Type A Connector
Placement of Finger on the biometric sensor of the device: Place the finger on the fingerprint sensor of your device as follows: FINGERPRINT INFORMATION This is the area on the finger where maximum information can be captured. Page 19 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 22 To get maximum information, keep your finger in the ideal position on the sensor. FINGER POSITIONING – FINGER ROTATION To get maximum information, keep your finger in the ideal position on the sensor. Page 20 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 23: Recommendations
Your device is fitted with an internal Lithium-Polymer (Li-Po) which should only be accessed by a qualified Morpho authorized technician. The device is fitted with battery specially designed for the operation.  Only use the appropriate chargers and batteries listed in the Morpho’s catalogue.  Do not disassemble.
Page 24  Do not charge the device near dangerous material, explosive or inflammable product Morpho is not responsible for the performance or safety of products not manufactured or approved by Morpho. NOTE The optimal conditions for battery charging are as follows: ...
Page 25 In case of a medical emergency, please consult a physician or seek an appropriate medical aid for an appropriate advice. Page 23 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 26: Batteries
Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.  Consult the dealer or an experienced radio/TV technician for help. Page 24 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 27 Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna. Page 25 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 28: Technical Specifications
Dual Core Cortex A9 1 GHz with NEON support. 2. Operating System  Android 4.1.2, enhanced with enterprise functionality. 3. Memory  1GB RAM, 8GB Flash, user accessible microSD card slot (supports up to 32GB). Page 26 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 29 Tamper resistant secure element. 2. Crypto-processor  H/W based security schemes - 2048 bit PKI, 256 bit AES, Base64, SHA 256, 3DES. 3. Fingerprint sensor  On-board as per CBM E2 standards. Page 27 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 30: Annex
User Guide Annex SECTION 8 ANNEX Accessories list Universal adapter with USB Cord Earphones Page 28 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 31 Protective Screen Guard ADVICE Make sure that the Screen Guard is intact on your device. The Screen Guard protects the touch screen of the device from scratches and marks. Page 29 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 32 User Guide Annex Protective Sleeve The protective sleeve is not part of the standard equipment. NOTE Page 30 SSE-0000101061-03 2014 Morpho Document - Reproduction and Disclosure Prohibited.
Page 33: Glossary
Near Field Communication On-The-Go Personal computer Random Access memory Secure Access Module Secure Digital Subscriber identity module STQC Standardization Testing and Quality Certification UMTS Universal Mobile Telecommunications System Universal Serial Bus Page 31 SSE-0000101061-02 2014 Morpho Document - Reproduction and Disclosure Prohibited.
