Demedash Effects T-60 ANALOG MODULATOR Manual

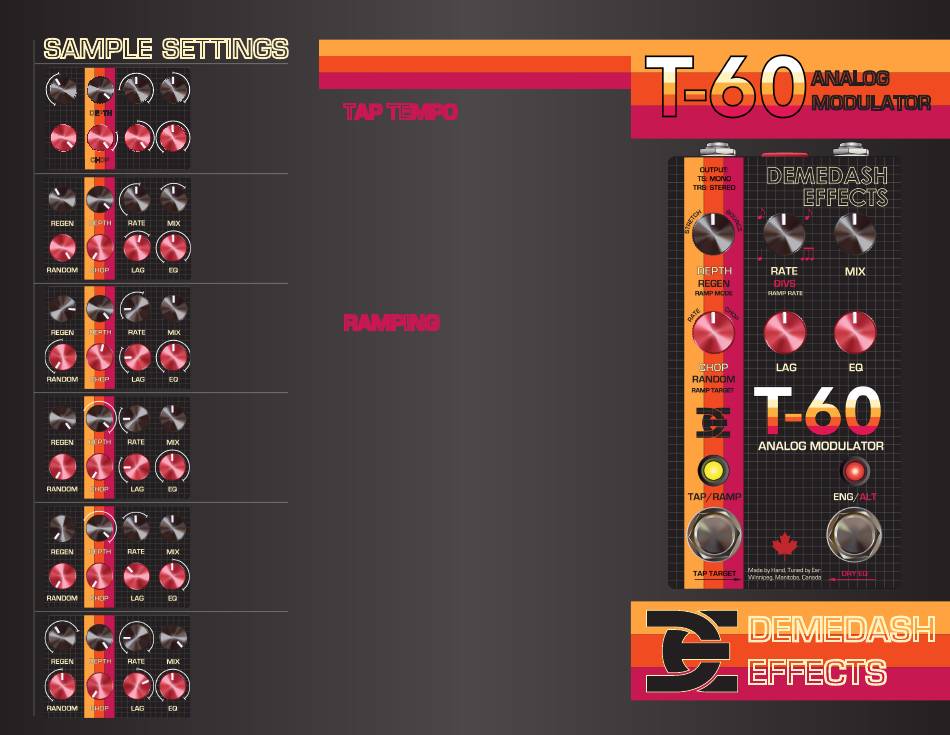

sAMpLe seTTiNGs
ANALOG
REGEN Depth Rate Mix
COMPUTER
RANDOM Chop Lag Eq
MOTIONLESS
CHORUS
GLITCHY
FLANGER
SWEEPING
RESONANT
FILTER
GLOSSY
CHORUS
WIDE
VIBRATO
T T & R
ap empo
TAP TEMPO
Sets either LFO speed or chop rate, depending on 'Tempo Target'
selection. Honors last two stomps.
The LED indicator will blink red & yellow at the entered tempo until 3
seconds after the last tap have elapsed. If the unit is in bypass, the
indicator will alternate between yellow & off to indicate the tempo.
The divisions setting does not affect the rate of the flashing LED.
Notes:
When "Chop" is the tap parameter, the tempo entered is subdivided
by the divisions selection and then further subdivided by 4 before being
applied.
Tapping a rate/chop value into the Random LFO causes it to output
samples at a regular (rather than semi-random) interval - 4 samples will
be output per tap interval (or per the interval given after applying the
current subdivision setting).
RAMPING
Hold the Tap/Ramp footswitch down to begin ramping. The Rate/Chop
setting will either begin increasing (if the Rate/Chop knob is left of noon)
or decreasing (if the Rate/Chop knob is at or above noon). When the
up/lower-most value is reached, the led quickly blinks yellow. Release
to exit the ramp, and Rate/Chop will drift back up/down to the original
setting (whether that was set via tap tempo or via the respective knob).

RAMp pARAMeTeRs:

While the Tap/Ramp switch is held down and ramping is engaged,
these alternate parameters can be adjusted. Once one of these
parameters is changed, it takes effect immediately, and is stored in
memory so that it will be recalled next time you use the pedal.
R M
AMp ODe [DEPTH KNOB]:
Choose between 'Stretch' ramping (default), and 'Bounce' ramping. The
LED indicator will blink while turning this knob when the current setting
has changed.
Stretch: ramp Rate/Chop to the furthest extreme away from the
current setting and hold it there until the footswitch is released (Stret
Bounce: ramp Rate/Chop to the furthest extreme away from the
current setting, then once there, reverse directions and go to the other
extreme, over and over.
R R
AMp ATe [RATE KNOB]:
Control how quickly a parameter is varied while ramping.
R T
AMp ARGeT [CHOP KNOB]:
Choose whether 'Rate' or 'Chop' will be ramped when you hold down the
'Tap' footswitch. The LED indicator will blink while turning this knob when
the current setting has changed.
amping
