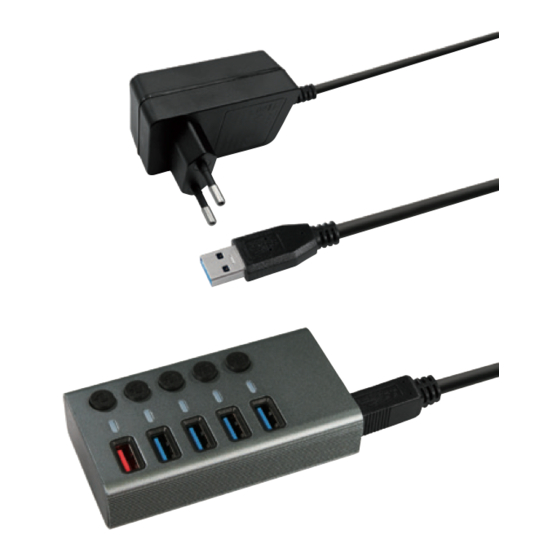

- Page 1 5-Port USB 3.0 Hub User Manual CH 10 L Package Contents: 5 in 1 USB 3.0 Hub USB Type B Cable (1m/3.3ft) 12V 2A Power Adapter (1.2m/4ft) User Manual CH10L_Manual_en.indd 1 21.03.2022 08:44:26...
- Page 2 3. It’s now ready to connect and charge your devices. *To achieve maximum performance, your computer system, peripherals, cables, and software must all support USB 3.0. SpecificationS Modell: CH 10 L Output Interface: Data: 4×USB 3.0, up to 5Gpbs Charging: up to 2.4A Material:...
- Page 3 Usage tips 1. For maximum performance, connected devices should not exceed a combined current of 3A. Otherwise, connections may become unstable or disconnect entirely. For reference, the devices below are often rated as: Mouse: 100 mA Camera: >300 mA Portable hard disk: max.
- Page 4 2. The Charging Port has its own microchip that detects what device is plugged into it through USB pin signals. This enables it to charge each unique device at its fully-intended speed (up to 2.4A) without the risk of harming it. This port can’t be used to transmit data. 3.
