Summary of Contents for Essentials CUL55B19

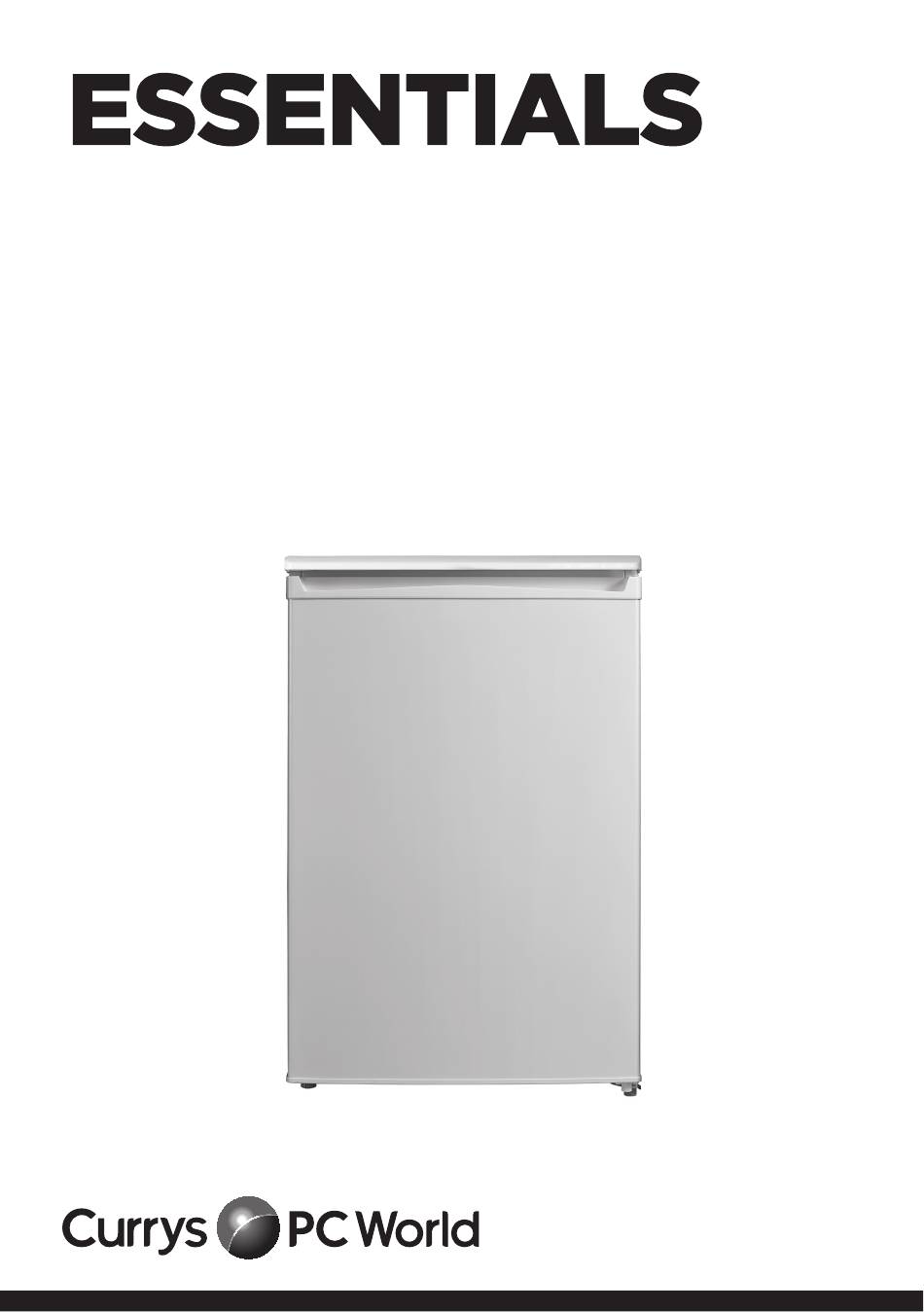

- Page 1 Undercounter Larder Fridge Installation / Instruction Manual CUL55B19 / CUL55W19 / CUL55S19...
-
Page 3: Table Of Contents
Contents Safety Warnings ...........................4 Unpacking ............................8 Installation ............................9 Location ....................................9 Levelling the Unit ................................9 Free Space Requirements ..............................9 Reversing the Door Swing ............................10 Cleaning Before Use ..............................13 Before Using Your Unit ..............................13 Product Overview ..........................14 Operation ............................15 Switching On Your Unit ............................... -
Page 4: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. If you pass the unit onto a third party, make sure to include this manual. - Page 5 • Do not store bottles or glass containers in the freezer compartment. Contents can expand when frozen (fizzy drinks) which may break the bottle and damage your freezer compartment. (If applicable) • To avoid contamination of food, pay attention to the following: - opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance;...
- Page 6 The table below contains general guidelines on the storage of food in the refrigerator. Refrigerator location Type of food Fridge door • Foods with natural preservatives, such as jams, juices, drinks, condiments. • Do not store perishable foods. Crisper bin (salad bin) •...
- Page 7 WARNING • Keep ventilation openings in the unit enclosure or in the built-in structure clear of obstructions. • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not use electrical appliances inside the food storage compartments of the unit, unless they are of the type recommended by the manufacturer.
-
Page 8: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. You will also find some hints and tips to help you resolve any issues. -
Page 9: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 38°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. -
Page 10: Reversing The Door Swing
INSTALLATION If the appliance is placed under a continuous worktop, the appliance lid (if applicable) may be removed and a ventilation grille of at least 200 cm (available from DIY shops or specialist retailers) should be installed to the worktop above the rear of the appliance to increase ventilation. - Page 11 INSTALLATION 2. Lift the top cover away from the fridge. 3. Remove the upper screws, then remove the upper hinge that hold the door in place. Lift the door and place it on a padded surface to prevent it from scratching.
- Page 12 INSTALLATION 6. Remove the levelling feet from another side of the unit bottom and transfer it to the corresponding position on the opposite side of the unit bottom. 7. Reattach the bottom screws, bottom hinge and levelling feet to the opposite side of the unit bottom.
-
Page 13: Cleaning Before Use
INSTALLATION In some cases, the door seal may be crushed after prolonged storing pressure, resulting to the door seal not able to close properly when reversed. Follow the steps below to solve the issue: • Peel off the door seal from the upper or lower corner and warm it with a hairdryer;... -
Page 14: Product Overview
Product Overview Thermostat Control Dial Glass Shelves Door Shelves Salad Bin Cover Salad Bin Levelling Feet Egg Tray... -
Page 15: Operation
Operation Switching On Your Unit 1. Before connecting the unit to the mains supply make sure that the thermostat control dial is set at position OFF. 2. Connect the mains cable to the mains socket. 3. Adjust the thermostat control dial to the desired position, bear in mind that the higher the number, the lower the temperature. -
Page 16: Tips For Keeping Food In The Unit
Tips for Keeping Food in the Unit • Cooked meats/fishes should always be stored on a shelf above raw meats/fishes to avoid bacterial transfer. Keep raw meats/fishes in a container which is large enough to collect juices and cover it properly. Place the container on the lowest shelf. •... -
Page 17: Cleaning
Cleaning Defrosting Frost might build up in the unit after the it has been used for a period of time. Scrape away the frost using a plastic scraper (not included). Do not use a metal or sharp instrument to scrape away the frost, nor should you use any electrical appliances to aid defrosting. -
Page 18: Maintenance
Maintenance Changing the Internal Light Please contact a qualified service agent. Care When Handling / Moving the Unit Hold the unit around its sides or base when moving it. Servicing The unit should be serviced by an authorised engineer and only genuine spare parts should be used. -
Page 19: Specifications
Product Fiche Brand Essentials Model CUL55B19 / CUL55W19 / CUL55S19 Household Appliance Category Energy Efficiency Class Energy consumption 116 kWh per year, based on standard test results for 24 hours. Actual energy consumption will depend on how the appliance is used and where it is located. - Page 20 For general information about this appliance and handy hints and tips, please visit www.TeamKnowhow.com/discover or call 0344 561 1234. Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day.
