TotalPond 36139 Manual

TotalPond 36139 Manual

Extra large nozzle kit

Advertisement

Quick Links

REMINDER
CALL 1-888-412-6001
BEFORE RETURNING TO STORE.

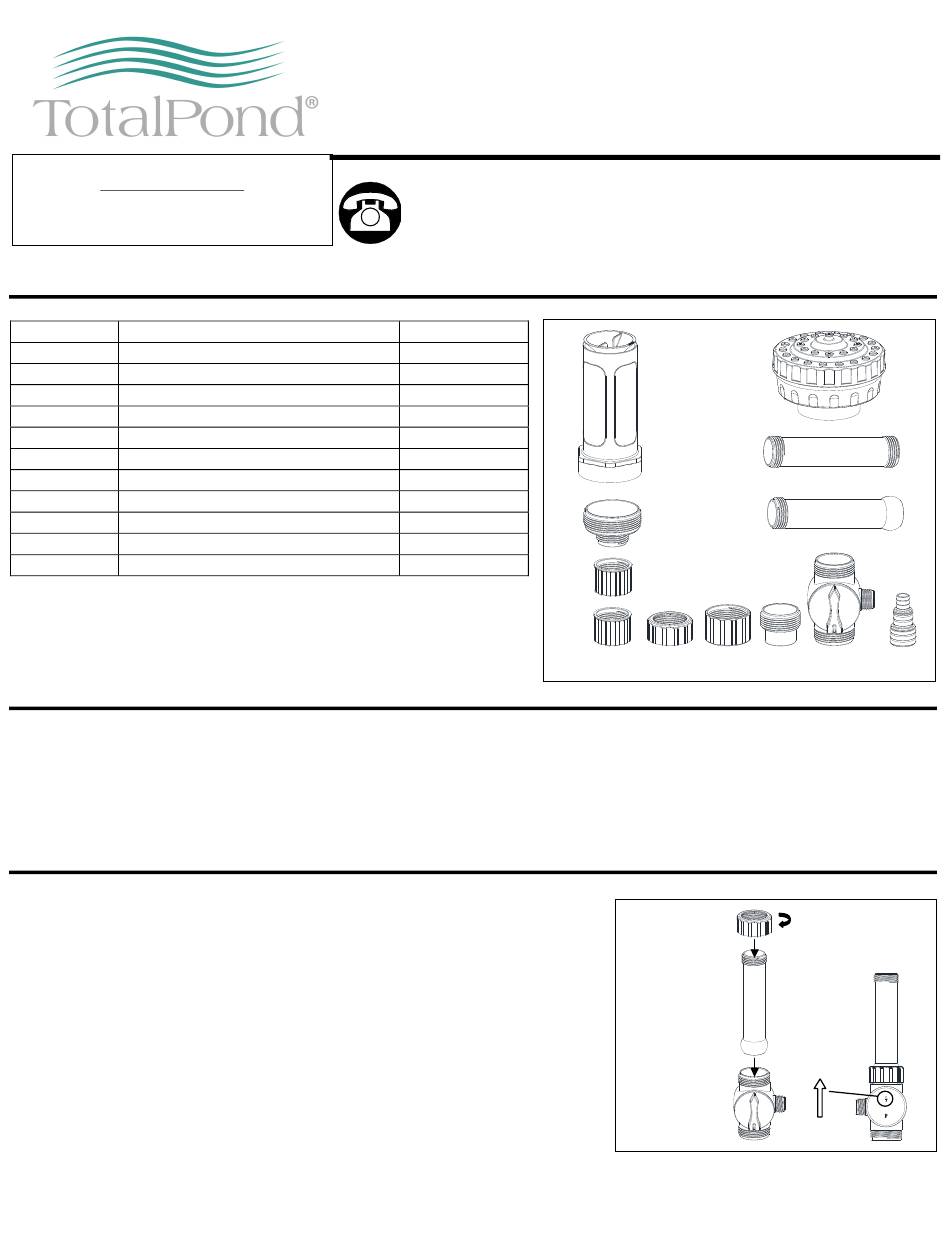

PACKAGE CONTENTS

Part
A
B
C
D
Nozzle extension tube
E
Swivel extension tube
F
G
H
Adaptor for G 1-1/4"
I
Adaptor for G 3/4"
J
K
Stepped adaptor

PREPARATION

Before beginning assembly of product, make sure all parts are present. Compare parts with package
contents list and diagram above. If any part is missing or damaged, do not attempt to assemble, install or
operate the product. Contact customer service for replacement parts.
Estimated Assembly Time: 5 minutes
Tools required for assembly: hacksaw.

ASSEMBLY INSTRUCTIONS

1. Connect the swivel extension tubes to diverter valve using
nut. Fig. 1
NOTE: Make sure the arrow on back of diverter valve is
positioned as shown and the diverter valve is
connected as shown.
Extra Large Nozzle Kit
Description
Trumpet
3-tier
Adaptor
Connector
Nut
Diverter valve
Questions, problems, missing parts? Before returning
to your retailer, call our customer service department at
1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday, or
email us at customercare@geoglobalpartners.com. Or
visit our website www.totalpond.com.
Quantity
1
1
A
1
1
1
2
1
1
C
1
1
1
F
1
F
G
H
I
G
E
J
Water flow
Fig. 1
ITEM #36139
B
D
E
J
K
Back view

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 36139 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TotalPond 36139

  • Page 1 Questions, problems, missing parts? Before returning to your retailer, call our customer service department at CALL 1-888-412-6001 1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday, or BEFORE RETURNING TO STORE. email us at customercare@geoglobalpartners.com. Or visit our website www.totalpond.com. PACKAGE CONTENTS Part Description Quantity Trumpet...
  • Page 2 2. Connect the nozzle extension tubes to the swivel extension tubes using connector. Fig. 2 Fig. 2 3. Choose a fountain head for the desired water effect, and assemble your choice. Use adaptor (C.) and connector (F.) as shown in Fig. 3 Fig.

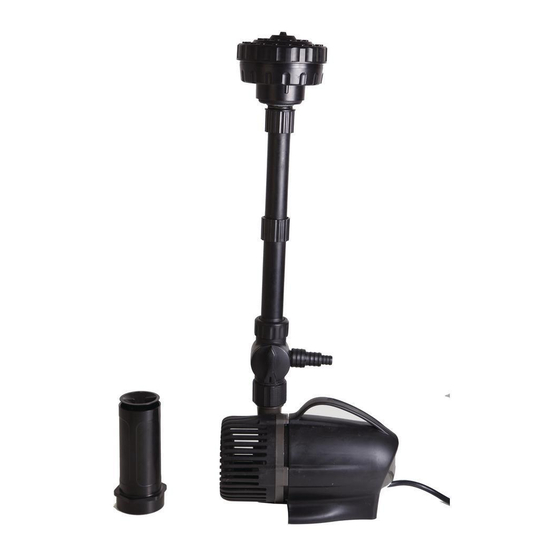

  • Page 3 Connect nozzle kit to pump using the appropriate adapter. Fig. 6 NOTE: Pump is NOT INCLUDED. LL2000 LL1200 Fig. 6 7. Adjust the swivel extension tubes as need. Fig. 7 Fig. 7 8. For trumpet, adjust the trumpet nozzle head to the preferred water effect.
  • Page 4 CARE AND MAINTENANCE Periodically disassemble the fountain head kit and clean the parts. • Use a cloth or soft brush with warm, soapy water. Be sure to use biodegradable soap. • REPLACEMENT PARTS LIST For replacement parts, call our customer service department at 1-888-412-6001, 8 a.m.-6 p.m., EST, Monday-Friday.
  • Page 5 1 year from the date of purchase. All TotalPond® liners are warranted to the user against defective workmanship, under normal working conditions for 20 years from the date of purchase. All other TotalPond®...
