NexSens EWC Quick Start Manual

EWC ENVIRONMENTAL WEB CAMERA
QUICK START GUIDE
IMPORTANT - BEFORE FIELD DEPLOYMENT: Completely configure a new camera with embedded Wi-Fi or cellular
telemetry in a nearby work area. Operate the system for several hours and ensure proper video and image captures. Use
this test run to become familiar with the features and functions.

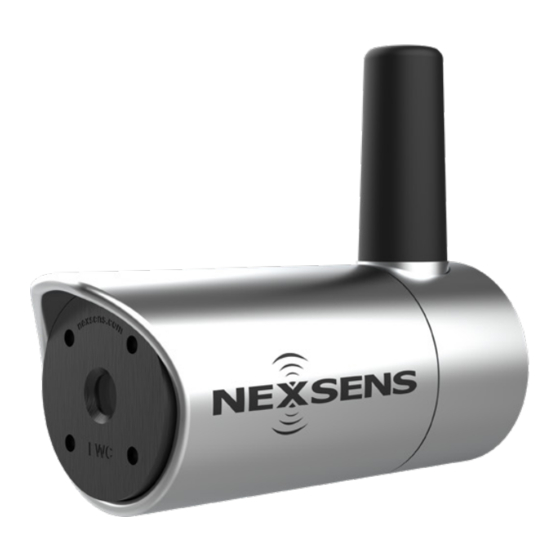

Figure 1: NexSens EWC Environmental Web Camera

Overview

The NexSens EWC environmental web camera offers
live-view, time-lapse, and time-video-clip modes with
real-time cellular communication. EWC cameras are
watertight and able to operate in extreme environments.
The internal settings allow users to balance resolution
and bandwidth to maximize image quality and cellular
responsiveness and are adjustable via the embedded Wi-
Fi or cellular telemetry with a web link. The EWC can be
powered by any 12VDC source, including a direct connec-
tion with a NexSens CB-series buoy battery or SP-series
power pack. The camera accepts sensor measurements
from NexSens X2 data loggers and can transmit this in-
formation along with imagery to the WQData LIVE cloud
datacenter.
What's Included?
(1) EWC Environmental Web Camera
(1) EWC Mount
(1) Quick Start Guide

SIM Card Installation

Use a 7/64" hex driver to remove the (4) screws
1
holding the lens cover.
a. Carefully lift the lens cover, avoiding contact
with the camera lens (Figure 2).
Figure 2: Remove the camera lens cover.
Invert the camera to release the camera lens onto
2
a soft, non-abrasive surface.
a. Note: A ribbon cable is connected to the
interior of the camera lens. Ensure the surface
is close enough to avoid putting tension on
the ribbon cable connection.
Figure 3: Remove the camera lens.
Gently pull down on the black connector piece
3
holding the ribbon cable connection.
a. Slowly remove the ribbon cable and place the
camera lens on a non-abrasive surface.
Figure 4: Release the interior ribbon cable.
