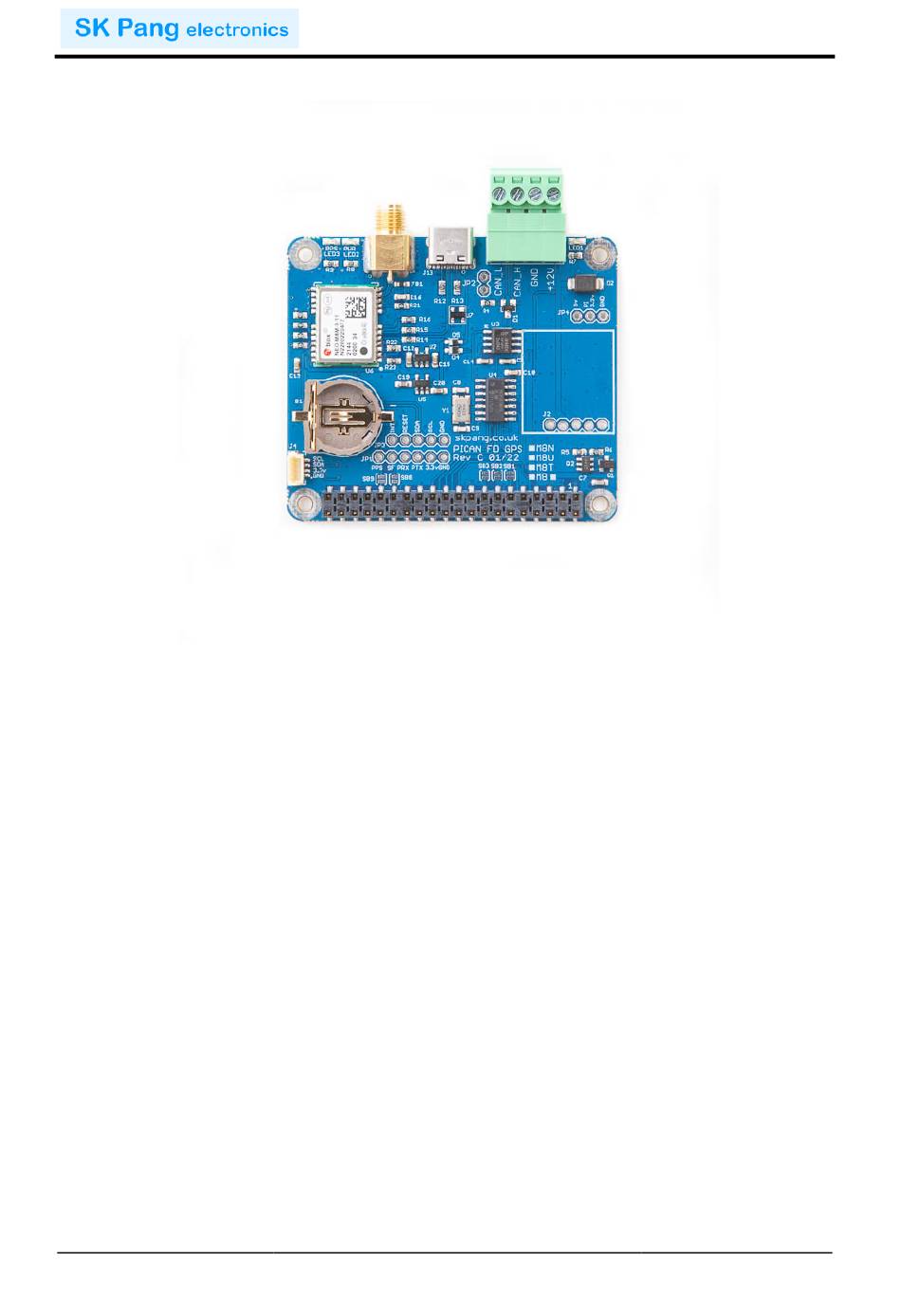

- Page 1 PiCAN FD GNSS Rev C 1.0 PiCAN FD and GNSS/GPS With NEO-M8M USER GUIDE V1.0 Product name PICAN FD and GPS Board for Raspberry Pi Model number RSP-PICANFD-NEO-M8M Manufacturer SK Pang Electronics Ltd SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk...
-
Page 2: Table Of Contents
Hardware Installation ..................... Screw Terminals ............................4 120W Terminator ............................5 LED ..................................5 Not Fitted Items ............................. 5 Software Installation ....................CAN-Bus Usage ....................... Installing CAN Utils ............................5 Bring Up the Interface ..........................5 Python Installation and Use ..................GPS GNSS Usage ..................... Communicate over UART ........................... 8 Communicate over I2C ..........................8 Communicate over USB ..........................9 SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... -
Page 3: Introduction
• Reacquisition: 1.5 s • Sensitivity o Tracking & Nav: –167 dBm o Cold starts: –148 dBm o Hot starts: –156 dBm • Assistance AssistNow GNSS Online • AssistNow GNSS Offline (up to 35 days) • AssistNow Autonomous (up to 6 days) • OMA SUPL & 3GPP compliant • Oscillator TCXO • RTC crystal Built-In • Anti jamming Active CW detection and removal. • Extra onboard SAW band pass filter • Memory Flash • Supported antennas Active and passive • Odometer Travelled distance • Data-logger For position, velocity, and time SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... -
Page 4: Hardware Installation
PiCAN FD GNSS Rev C 1.0 • Communicate to the Pi via UART or I2C • PPS output to GPIO06 • Can work as a standalone using on board USB-C connection 2 Hardware Installation Before installing the board make sure the Raspberry is switched off. Carefully align the 40way connector on top of the Pi. Use spacer and screw (optional items) to secure the board. 2.1 Screw Terminals The CAN connections are made via the 4way screw terminals. Function CAN_L CAN_H GND n/c Note : The +12v In is only used on the PiCAN board with SMPS option fitted. SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... -
Page 5: 120W Terminator
Reboot Pi: sudo reboot 4 CAN-Bus Usage Installing CAN Utils Install the CAN utils by: sudo apt-get install can-utils 4.2 Bring Up the Interface You can now bring the CAN interface up with CAN 2.0B at 500kbps: sudo /sbin/ip link set can0 up type can bitrate 500000 or CAN FD at 500kpbs / 2Mbps. Use copy and paste to a terminal. SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... -
Page 6: Python Installation And Use
7DF#0201050000000000 This will send a CAN ID of 7DF. Data 02 01 05 – coolant temperature request. To send a CAN FD message with BRS use : cansend can0 7df##15555555555555555 To send a CAN FD message with no BRS use : cansend can0 7df##05555555555555555 Connect the PiCAN to a CAN-bus network and monitor traffic by using command: candump can0 You should see something like this: 5 Python Installation and Use Ensure the driver for PiCAN FD is installed and working correctly first. Clone the pythonCan repository by: git clone https://github.com/hardbyte/python-can cd python-can sudo python3 setup.py install Check there is no error been displayed. SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... - Page 7 /sbin/ip link set can0 up type can bitrate 500000 dbitrate 2000000 fd on sample-point .8 dsample-point .8 Now start python3 and try the transmit with CAN FD and BRS set. python3 import can bus = can.interface.Bus(channel='can0', bustype='socketcan',fd = True) msg = can.Message(arbitration_id=0x7de,is_fd = True, bitrate_switch = True,data=[0,0,0,0,0,0x1e,0x21,0xfe, 0x80, 0, 0,1,0]) bus.send(msg) To received messages and display on screen type in: notifier = can.Notifier(bus, [can.Printer()]) Documentation for python-can can be found at : https://python-can.readthedocs.io/en/stable/index.html More expamles in github: https://github.com/skpang/PiCAN-FD-Python-examples SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk...
-
Page 8: Gps Gnss Usage
6.1 Communicate over UART To use the UART port ensure SB6 and SB7 are made. The default baudrate is 9600 8-N-1. To do basic UART test on the Raspberry Pi, type in: stty -F /dev/ttyS0 raw 9600 cs8 clocal cat /dev/ttyS0 You should now see the GNSS/GPS sentences like this: 6.2 Communicate over I2C To use the I2C port ensure SB4 and SB5 are made. First install I2C tool: sudo apt-get install i2c-tools Now check I2C port: sudo i2cdetect -y 1 Check address 0x42 has shown up. SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... -
Page 9: Communicate Over Usb
PiCAN FD GNSS Rev C 1.0 Now download the i2c python script from Github: https://github.com/skpang/Raspberrypi_i2c_gps Start the script by: python3 i2c-gps.py You should now see the GNSS/GPS sentences over I2C like this: 6.3 Communicate over USB The PiCAN FD GPS board can function as a standalone and communicate over USB. This requires an USB-C cable plug into the board. The USB-C also provides power to the board. This can be plugged into a PC. On a Windows PC, u-center can be used: Firmware update for the GPS/GNSS can also be done over USB. SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk... - Page 10 PiCAN FD GNSS Rev C 1.0 SK Pang Electronics Ltd Ó 2022 www.skpang.co.uk...
