- Page 1 THE NEXT GENERATION OF TELEMATICS AND INTEGRATED CAMERA SOLUTIONS VT-MM-AHD MIRROR MOUNTED MONITOR 7” SCREEN BUILT-IN REMOTE SIZE CONTROL SPEAKER USER MANUAL THE UK'S MOST AWARD-WINNING CAMERA TELEMATICS COMPANY www.visiontrack.com...

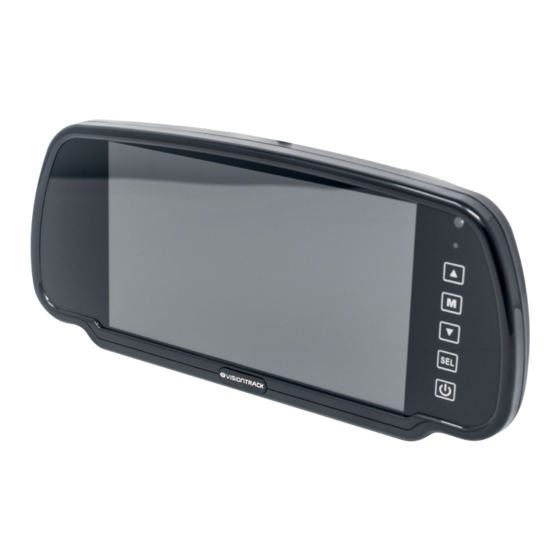

- Page 2 Installation Menu Operation Instructions Introduction Product Description The VT-MM-AHD is a rear-view mirror-mounted full-colour monitor. With three video inputs and a resolution of 1280x720p, this monitor is an ideal driver reversing aid. Precautions Follow all warnings, precautions and maintenance as recommended in this user manual to maximize the life of your unit and prevent risks to user safety.
- Page 3 VT-MM-AHD MANUAL Technical Assistance TECHNICAL COMMISSIONING SUPPORT SUPPORT 01246 223 152 01246 225 858 (Monday – Friday 7.00am – 7.00pm) (Monday – Friday 8.00am – 6.00pm) (Weekends – 9.00am – 5.00pm) Installation Unpacking the monitor Open the box and verify that the following items are present:...
- Page 4 VT-MM-AHD USER MANUAL Mounting Options Short bracket Long bracket VT-MM-AHD-BRCT-S VT-MM-AHD-BRCT-L 100mm (L) 150mm (L) Specifications Screen Size 7-inch digital screen Resolution 11024RGB(H)x600(V) System AUTO OSD Menu Multi-language: English etc. Separately adjust camera mirror/normal image; Separately adjust reversing image delay time 0~15s;...
- Page 5 VT-MM-AHD USER MANUAL Operation Buttons Power on/off V1/V2/V3 switchover Analog decrease Menu Analog increase Remote Control Instructions Power on/off Video switchover Analog decrease Analog increase Mode Power on/off Insulation sheet 01246 225 745...
- Page 6 VT-MM-AHD USER MANUAL Menu Operation Instructions Press “MENU" , the screen will show “PICTURE”. Press SEL, to select other feature. Press “ ” to adjust parameter. Press “MENU” over and over again, the screen will show pictures as below: Brightness Adjust...
