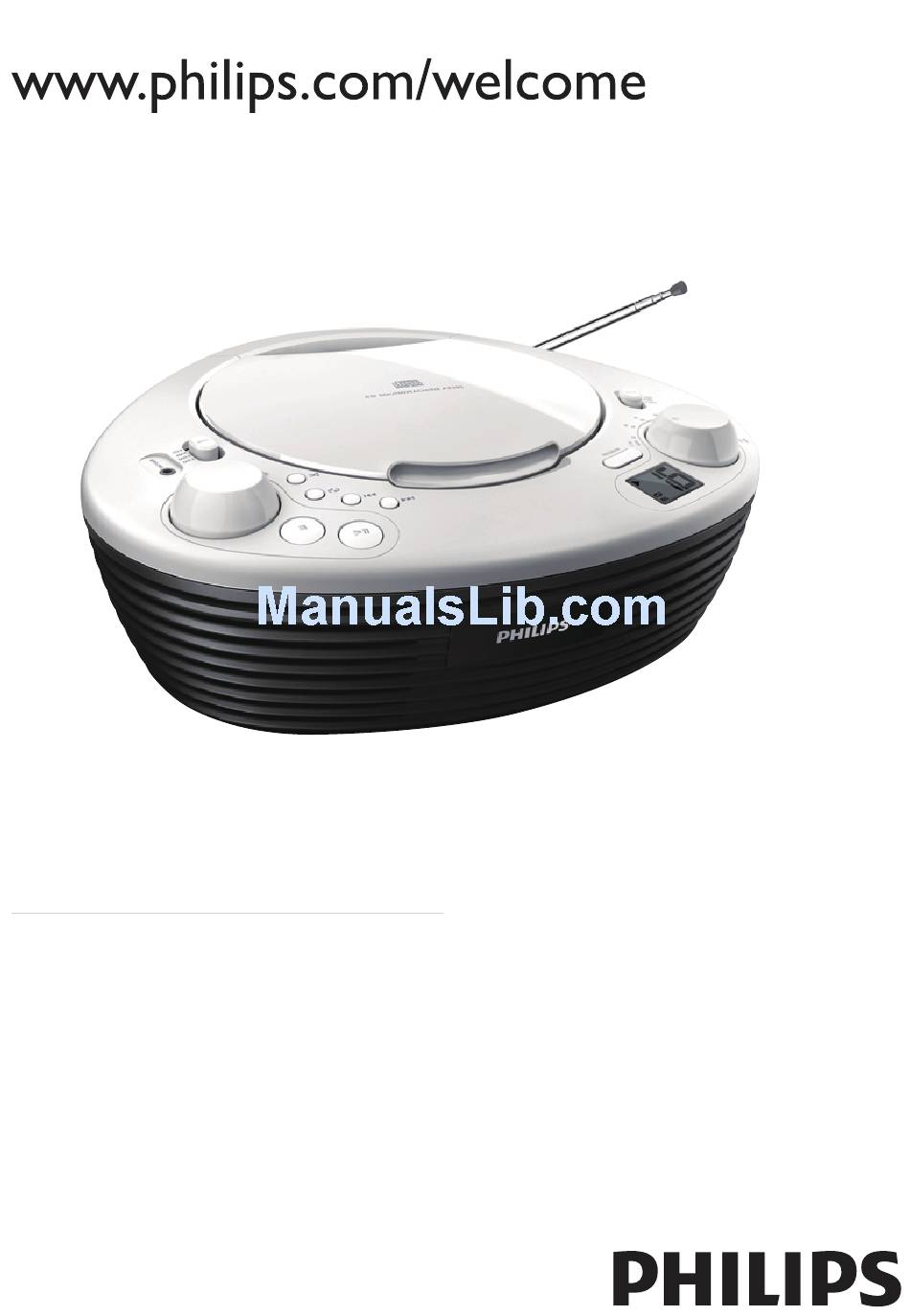

- Page 1 Register your product and get support at AZ202C User manual...
-
Page 2: Important Safety Instructions
Important Safety Important Safety Instructions Read these instructions. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this apparatus near water. Clean only with dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 3 manufacturer. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over. Unplug this apparatus during lightning storms or when unused for long periods of time.
- Page 4 Do not place any sources of danger on the apparatus (e.g. liquid filled objects, lighted candles). Important notes for users in the U.K. How to connect a plug The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
- Page 5 The severed plug must be disposed off to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere. Warning • Never remove the casing of this apparatus. • Never lubricate any part of this apparatus. • Never place this apparatus on other electrical equipment. • Keep this apparatus away from direct sunlight, naked flames or heat.
- Page 6 Notice This product complies with the radio interference requirements of the European Community. Any changes or modifications made to this device that are not expressly approved by Philips Consumer Lifestyle may void the user’s authority to operate the equipment. Recycling Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
- Page 7 potentially negative consequences on the environment and human health. Recording and playback of material might require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972. Environmental information All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), paper pulp (buffer) and polyethylene (bags, protective foam sheet.) Your system consists of materials which can be recycled and...
-
Page 8: What's In The Box
Introduction With this CD Soundmachine, you can: • play audio discs • listen to FM/MW radio • enjoy music from external devices • program the play sequence of tracks Dynamic Bass Boost (DBB) helps you to maximize music enjoyment. What’s in the box Check and identify the contents of the package: •... -
Page 9: Overview Of The Main Unit
Overview of the main unit LIFT-OPEN • Open/close the disc compartment. Source selector • Select a source: CD, FM, or MW. • Turn off the unit. MP3 LINK • Jack for an external audio device. • Play track/tracks randomly. CD SOUNDMACHINE AZ202... - Page 10 • Play track/tracks repeatedly. VOLUME • Adjust volume. • Skip to the previous/next track. • Search within a track. • Stop play. • Start or pause play. Display panel • Display current status. PROGRAM • Program tracks and browse the program. Tuning button •...
-
Page 11: Get Started
Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial number of your apparatus. The model number and serial number are on the bottom of your apparatus. Write the numbers here: Model No. -
Page 12: Connect Power
Connect power Warning • Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the apparatus. • Risk of electric shock! When you disconnect the AC power, always pull the plug from the socket. -
Page 13: Turn Off
• To switch the apparatus off completely, disconnect the power cord from the power supply socket. Note • To save energy: after use, turn off the apparatus. Turn on Push the source selector to CD, FM or MW. Turn off Push the source selector to OFF. -
Page 14: Listen To The Radio
Play disc Push the source selector to CD. Lift to open the disc compartment. Insert a disc with the printed side facing up, then close the disc compartment. Press to start play. • To pause/resume play, press • To stop play, press •... -
Page 15: Play Options
Listen to an external device You can listen to an MP3 player through this apparatus. Note • When you connect an external device to apparatus switches to MP3 LINK source automatically. Use a 3.5mm plugs cable (not supplied) on both ends to connect MP3 LINK jack (3.5mm) on this apparatus and the headphone jack on an MP3 player. Play options Adjust volume During play, turn VOLUME to increase/decrease the volume level. Enhance bass During play, adjust DBB to ON/ OFF turn on/off dynamic bass enhancement. -
Page 16: Program Tracks
[REP ALL](repeat all) - repeat an entire CD/program. • Shuffle Press to play all tracks randomly. [SHUFFLE] (shuffle) - play tracks randomly. • Program tracks You can program a maximum of 20 tracks. In CD mode, at the stop position, press PROGRAM to activate the program mode. Press PROGRAM to confirm. -
Page 17: Product Information
Note • Product information is subject to change without prior notice. Specifications Disc Laser Type Disc Diameter Support Disc Audio DAC Total Harmonic Distortion Frequency Response S/N Ratio Tuner Tuning Range Total Harmonic Distortion Signal to Noise Ratio Semiconductor 12cm/8cm CD-DA, CD-R, CD-RW 24Bits / 44.1kHz <1% 60Hz -16kHz >62dBA... -
Page 18: Maintenance
Clean the disc lens After prolonged use, dirt or dust may accumulate at the disc lens. To ensure good play quality, clean the disc lens with Philips CD lens cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner. AC: 220 - 240V, 50/60 Hz DC: 9V, 1.5 x 6 R14/UM2... -
Page 19: Troubleshooting
If you encounter problems when using this apparatus, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.philips.com/welcome). When you contact Philips, ensure that the apparatus is nearby and the model number and serial number are available. No power •... - Page 20 No disc detected • Insert a disc. • Check if the disc is inserted upside down. • Wait until the moisture condensation at the lens has cleared. • Replace or clean the disc. • Use a finalized CD or correct format disc. Poor radio reception • Increase the distance between the unit and your TV or VCR. •...
- Page 21 © 2010 Koninklijke Philips Electronics N.V. All rights reserved. AZ202C_05_UM_V1.0...
