User Guide
Bluetooth Wireless Presentation Solution for
Windows OS Mobile Devices
Model Number: PS6B1V

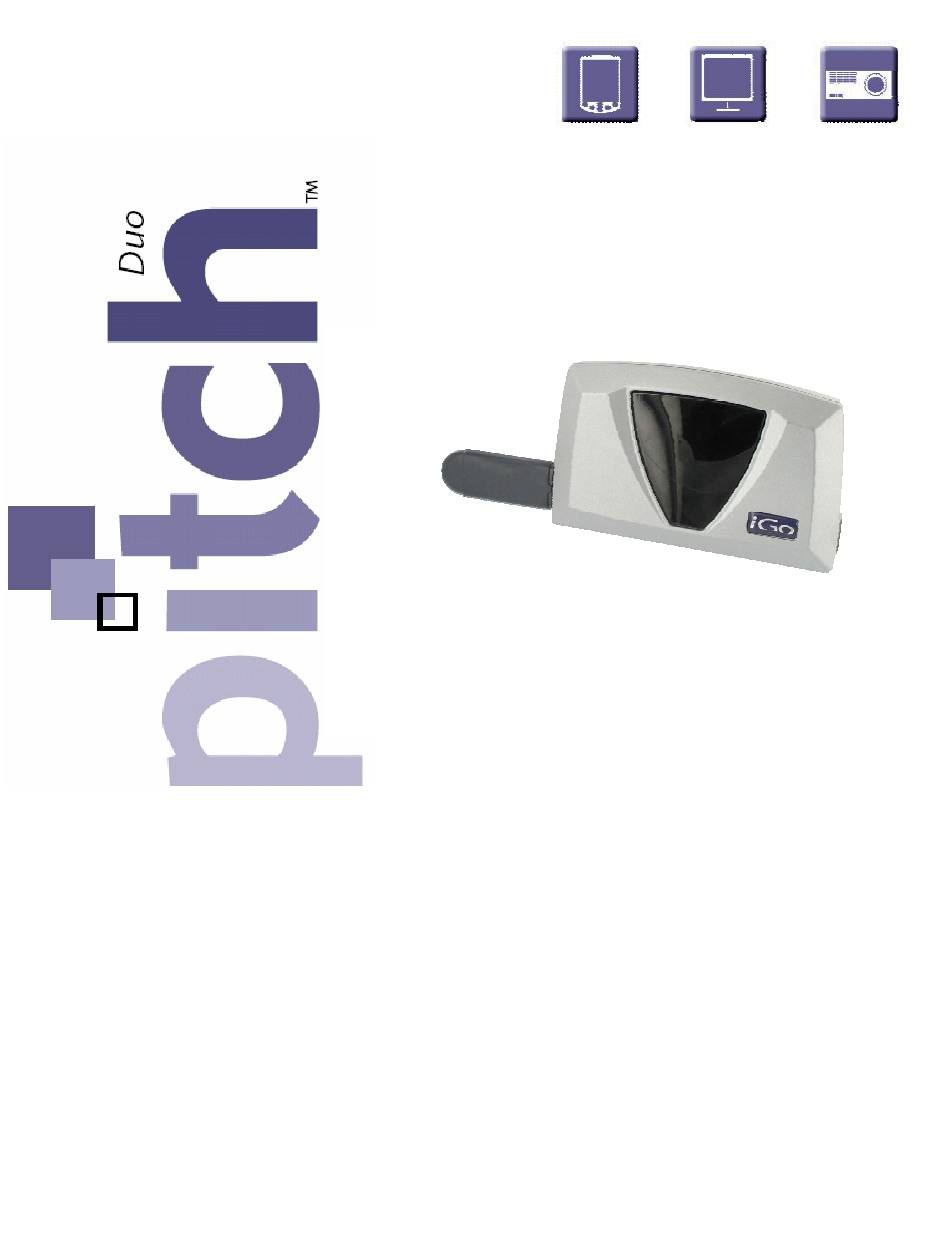

Pitch Duo™ is a complete presentation solution for Mobile
Devices running Windows Mobile 2003 for PocketPC or
Windows Mobile 5, and provides connection to your
projection device via Bluetooth or USB.
The solution includes:
•
Pitch Duo™ unit
•
A power supply for powering Pitch Duo
•
Quick Pitch Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the pitch duo PS6B1V and is the answer not in the manual?

Questions and answers

Summary of Contents for Igo pitch duo PS6B1V

  • Page 1 User Guide Bluetooth Wireless Presentation Solution for Windows OS Mobile Devices Model Number: PS6B1V Pitch Duo™ is a complete presentation solution for Mobile Devices running Windows Mobile 2003 for PocketPC or Windows Mobile 5, and provides connection to your projection device via Bluetooth or USB. The solution includes: •...
  • Page 2 A Guide to Pitch Duo...

  • Page 3: Table Of Contents

    Table of Contents Table of Contents ..................ii Introduction....................1 Minimum Requirements............... 1 Product Registration ................1 Chapter 1 Getting Started ............... 2 Before You Start .................. 2 Chapter 2 Before Your Presentation............3 Install the Software ................3 Verify Quickpoint Installation ..............5 Connect Pitch Duo................
  • Page 4 Windows Mobile 2003 and earlier Devices........31 Chapter 6 Important Notes: ..............32 Appendix A Regulatory Information ............ 33 FCC Statement .................. 33 Caution ....................33 A Guide to Pitch Duo...

  • Page 5: Introduction

    Introduction Minimum Requirements The following minimum requirements must be met for the Mobile Device and desktop computer: • A Mobile Device capable of connecting via Bluetooth or USB and running Windows Mobile 2003 for PocketPC or Windows Mobile 5, and able to connect via Bluetooth or USB. •...

  • Page 6: Chapter 1 Getting Started

    Chapter 1 Getting Started Before You Start In order to ensure a successful installation of the Pitch™ Duo software it is first necessary to confirm that your Mobile Device and your computer are connected and configured correctly. You must also make sure you are using the correct version of ActiveSync for your...

  • Page 7: Chapter 2 Before Your Presentation

    Chapter 2 Before Your Presentation Install the Software • The software is available online at www.iGoPitch.com. Simply go to the website and download the self-extracting archive. The files will extract to a folder called c:\pitchduo, unless you changed to a new location.
  • Page 8 • Select Yes to remove the old version. • You should close any running Windows applications before continuing. Click the Next button when you are ready to continue. • Click the “Yes, I agree . . .” box to accept the Software License Agreement in the next window.

  • Page 9: Verify Quickpoint Installation

    • When the installation is completed, click on the Finish button to exit the Setup program. Verify Quickpoint Installation If your Mobile Device is connected to your host computer and the ActiveSync connection is active, Quickpoint will automatically be installed to your Mobile Device. To verify the installation, take the Mobile Device, and tap Start Programs.

  • Page 10: Configure The Mobile Device

    Configure the Mobile Device Pitch Duo communicates with your Mobile Device via either Bluetooth or USB – your choice. It is, therefore, important for you to decide how you want to use your Mobile Device with Pitch Duo. Do you want to use Bluetooth, USB, or maybe both (just not at the same time)? Because your Pitch Duo is designed to work with any Mobile Device running an approved operating system, it is impossible to provide detailed...

  • Page 11: Configure Bluetooth

    Configure Bluetooth If you have decided to use Bluetooth to communicate between your Mobile Device and your Pitch Duo, you will need to configure the Bluetooth settings. Setting up Bluetooth on these devices is easy; just follow these simple steps: Configure Windows Mobile 2003 and earlier Devices 1.
  • Page 12 7. Tap on the My Shortcuts tab on the Bluetooth Manager screen. Next, use the stylus to double-tap on the Pitch Duo icon. On the pop-up menu, tap on the Connect option. This will create a connection between the Mobile Device and your Pitch Duo device. If you tap &...

  • Page 13: Configure Quickpoint

    12. Finally, tap on the Exit icon in the top right corner of the screen to exit the Bluetooth Manager. The above steps are similar to those found on most Mobile Devices. However, on some systems you may need to refer to your Mobile Device Owner Manual to gain specific information on how these steps are completed on your specific Mobile Device.

  • Page 14: Configure Windows Mobile 5 Devices

    Configure Windows Mobile 5 devices Windows Mobile 5 is a mobile operating system that is very different from earlier versions. If your Mobile Device is using Windows Mobile 5, you must first upgrade your ActiveSync software to Version 4.0 or newer. Enable Serial Communications Windows Mobile 5 uses RNDIS (Remote Network D river...
  • Page 15 Install USBConfig For your convenience, a utility program, called USBConfig, is provided with your Pitch Duo in case you need it. This utility will enable you to switch between RNDIS and Serial communications. It is best to use the utility provided by the Mobile Device maker, if one is available.

  • Page 16: Configure Quickpoint For Bluetooth

    Open the File Explorer on your Mobile Device. Make sure you select the My Device option from the dropdown list in the upper left corner of the window. Then tap on the USBConfig file to start the installation process. When the installation has completed, tap on the button in the upper right corner, followed by the in the upper right...
  • Page 17 4. Tap on the arrow for the dropdown list box in the Connections window to display a listing of COM ports that are being used. Some Mobile Devices, such as the Moto-Q will automatically display a COM port number for Bluetooth communications when Bluetooth has been turned on.

  • Page 18: Turn On Bluetooth Communications

    Select Bluetooth 7. Tap on the on the Port dropdown list of active COM ports. All active COM port numbers will be displayed. If you would like Quickpoint to communicate with your Pitch D using Bluetooth, tap on the Outbound Bluetooth Serial Port # you found in Step 11 above.
  • Page 19 2. Tap on the Devices tab at the bottom of the window to create a new Bluetooth partnership with your Pitch Duo. Tap on New Partnership … to start a search for your Pitch Duo. When the search is complete, a list of all Bluetooth devices within about 30 feet (10 meters) will be displayed in the window.
  • Page 20 6. In the Partnership Settings window, tap the Serial Port checkbox to create this Partnership as a serial connection. Tap on the Finish button when done. 7. Next, tap on the COM Ports tab to configure the Outgoing Bluetooth communications Port. Then tap on New Outgoing Port.
  • Page 21 9. In the Bluetooth Settings window, use the to select a COM port for Bluetooth to use for Pitch communications. Assign the same COM port number to Bluetooth that you earlier assigned for Quickpoint. Simply select it from the dropdown list. If there is a checkmark in the Secure Connection checkbox, tap the checkbox to remove it.

  • Page 22: Configure Usb

    Configure USB If you have decided to use USB to communicate between your Mobile Device and your Pitch Duo, you will need to configure the USB settings. Setting up USB on these devices is easy; just follow these simple steps: Configure Windows Mobile 2003 and earlier Devices Configure Quickpoint In order for Quickpoint to communicate, it is necessary to configure the...

  • Page 23: Configure Windows Mobile 5 Devices

    5. Finally, tap on the EXIT button at the bottom of the Quickpoint window to close Quickpoint. Go to Chapter 3 learn how to use Quickpoint for your PowerPoint presentations. Configure Windows Mobile 5 devices Windows Mobile 5 is a mobile operating system that is very different from earlier versions.
  • Page 24 To install USBConfig onto your M obile Device, open your host compute r’s ActiveSync window. Then locate the USBConfig.CAB file in the c:\Pitchduo folder. Drag it to the “My Windows Mobile-Based Device” icon and drop it. You will be prompted that ActiveSync may need to convert the file.

  • Page 25: Configure Quickpoint For Usb

    When the installation has completed, tap on the button in the upper right corner, followed by the in the upper right corner of the File Manager to exit and return to the Programs Window. Tap on the USBConfig icon to bring up the USB Setting window.
  • Page 26 5. Look for the COM port number assigned to USB communications. 6. Tap on the Add/Manage Pitch Connections button and enter the COM port number that Pitch will use for Bluetooth communications. Tap on the button when finished to exit back to the Quickpoint Connection window.

  • Page 27: Chapter 3 Using Quickpoint

    Chapter 3 Using Quickpoint Preparing Your Presentations With Pitch Duo you can easily use your Mobile Device to make a PowerPoint Presentation by following these simple steps: • On your computer – Create a PowerPoint Presentation and save it, or locate an existing one.

  • Page 28: Giving Your Presentations

    Giving Your Presentations • On your Mobile Device – Go to Start Programs and use the Stylus to tap on the Quickpoint icon. • On your Mobile Device – After Quickpoint has opened, it will present you with a list of available PowerPoint presentations.

  • Page 29: Managing Your Presentation

    Managing Your Presentation Using Quickpoint and your Mobile Device you can make “real-time adjustments” to your PowerPoint presentation “on the fly.” For example, while you can display your PowerPoint presentation on your remote display device, you can also view the presentation in four different ways on your Mobile Device.

  • Page 30: List View

    List View This is the default slide display view. Clicking on this icon shows a list of all slides in your presentation with the slide # and name. The slide currently being displayed is highlighted. You may change slides by simply clicking on the next slide you want.

  • Page 31: Note View

    Note View Clicking on this icon will display any notes for the active slide. Notice that the slide number and title appears at the top with the actual slide text shown in the main window. To change slides in this view, tap on the and select another slide from the drop down list.

  • Page 32: Pres Menu

    Pres Menu The Pres Menu allows you to control how your audience views the slide presentation. Using simple menu choices, you can restore your original slide sequence, setup your presentation to automatically run a slide show, or even operate in unattended mode. Restore Slide Order Anytime you wish to restore your PowerPoint presentation to its original slide...

  • Page 33: Using Quickpoint For Remote Display

    Once the presentation is running is a standalone mode, you may use your Mobile Device for anything else you need. Pitch will continue to run your presentation – completely unattended. To stop Pitch from operating in a standalone mode, simply reconnect a Mobile Device to regain control. For your convenience, any Mobile Device running a current version of QPLite can perform this task.

  • Page 34: Chapter 4 Tips & Tricks

    Chapter 4 Tips & Tricks: Although Pitch Duo does not support Slide Transitions: bullet-building, you can use a similar visual impact by using a base slide with the first bullet and incrementing the bullets on additional identical slides. Large Presentations: If you have a large presentation (up to the 32MB Pitch limit), you can speed your setup time by uploading the presentation...

  • Page 35: Chapter 5 Troubleshooting

    Chapter 5 Troubleshooting: Windows Mobile 5 Devices Problem Solution Quickpoint won’t work with Check to be sure that you have not assigned a Bluetooth different COM port number for Quickpoint than you have assigned for Bluetooth COM. The Mobile Device won’t While ActiveSync 4.0+ will typically work using either ActiveSync with the host RNDIS or serial communications, your Mobile...

  • Page 36: Chapter 6 Important Notes

    Chapter 6 Important Notes: 1. Because Pitch Duo uses a high-performance Pentium-class CPU and graphics system, it does create heat during extended use. This is normal. 2. You can check for updated software and get additional information about Pitch Duo at www.iGoPitch.com. 3.

  • Page 37: Appendix A Regulatory Information

    • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected • Consult the dealer or an experienced radio/TV technician for help. iGo is not responsible for radio/TV interference caused by using unauthorized cables or by making unauthorized changes to this equipment.
  • Page 38 A Guide to Pitch Duo...
  • Page 39 A Guide to Pitch Duo...
  • Page 40 ©2006 Mobility Electronics, Inc. Mobility Electronics and iGo are registered trademarks and Pitch is a trademark of Mobility Electronics, Inc. All other brand names and logos are trademarks or registered trademarks of their respective owners. United States and foreign patents pending. Specifications are subject to change without notice.
