Summary of Contents for Tropicair RUA

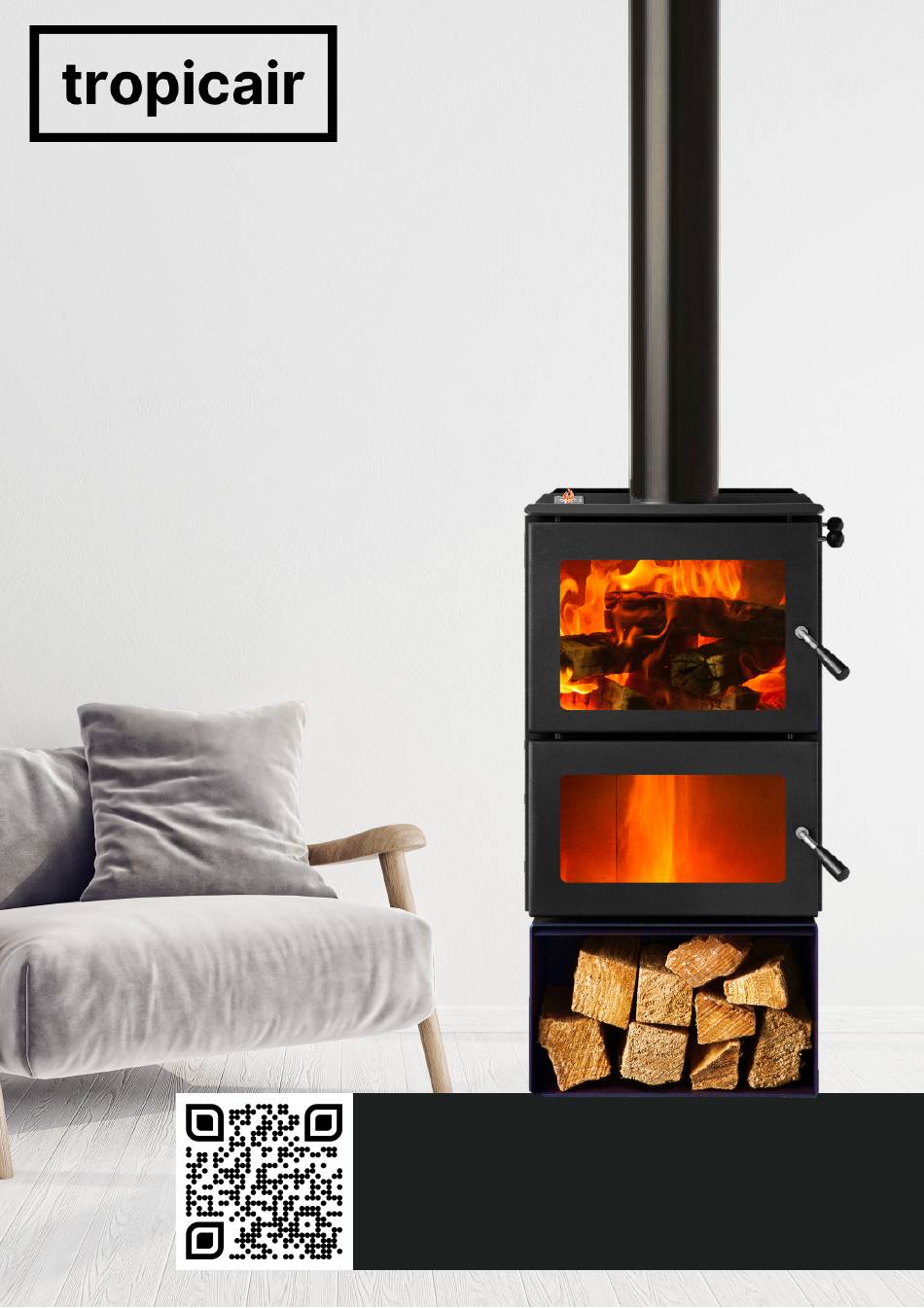

- Page 1 INSTALLATION SHOW ROOM: a: 1/29 Acheron Drive, Riccarton p: 03 379 0438 e: sales@tropicair.co.nz...
-
Page 2: Testing Certification
CONTENTS installation instructions operating instructions cleaning & maintenance first lighting tip sheet problem solving warranty parts TESTING CERTIFICATION CM1: Canterbury Method 1 AS/NZS CM1.6 AS/NZS AS/NZS AUTHORISATION MODEL 2918:2001 (ULEB) 4012:2014 4013:2014 NUMBER 0.41g/kg 185998 30mg/MJ complies NES: National Emission Standard EMISSIONS AS/NZS EFFICIENCY... -
Page 3: Installation Instructions
14g High Tensile Wood Techs of appropriate length for wooden floors. Any appliance shall not be connected to a flue common with an open fireplace. Tropicair Rua Does Not require a Flue Shield. Minimum Ceiling plate size 344mm x 344mm x 12mm... - Page 4 Total flue length must also be not less than 4.6m in height from floor protector. INSTALLATION 1. Position the hearth & appliance on the floor. Drop a plumbline from the ceiling to the center of the Rua's flue spigot to mark the position where the flue will pass through ceiling.
- Page 5 Cut a square hole and frame out - see flue instructions for size Minimum 344mm x 344mm 12mm stand-off. Ceramic stand-off or folded stand-off corners with open NO flue required WARNING Contact Tropicair when offsetting Flue swage points down...
- Page 6 740mm Front clearance is measured with the door open from the lower lip of loading opening 300mm 750mm 540mm 570mm 110mm 375mm 300mm 285mm 100mm Contact Tropicair if further clarity is required 03 3790 438 or www.tropicair.co.nz...
- Page 7 OPERATING INSTRUCTIONS WHAT WOOD TO USE we recommend pine (soft wood) - no only sustainable in NZ but one of the cheapest! POWER OUT not only does a wood burner not need electricity to heat your home - you can cook on the top too - ensure you use the right equipment to avoid damage GREAT COMPANY the atmosphere a fire puts out is both warm and cosy...
- Page 8 OPERATING INSTRUCTIONS STARTING UP This below bird’s eye view shows the 2 controls and the position they should be in for the first 15 - minute start cycle. Kindling should be 1kg of dry timber (Pine or soft wood is best and under 25% moisture) split so it is no thicker than thumb sized - use with fire lighters.
- Page 9 OPERATING INSTRUCTIONS Select the 2 thickest pieces of kindling and place in a triangle pattern as shown below. Place minimum of 2 Fire lighters as shown above. DO NOT put kindling or any type fuel bottom chamber.Only chamber should be loaded. Place the next 3 pieces of kindling across the triangle base as shown below.
- Page 10 Intermediate load should be softwood for best results. Once the intermediate fuel load is well alight (typically at 15 minutes) the Rua can be switched to run mode. Should your Rua cease to operate or operate oddly, open the control rod for 3 more minutes before switching back to run mode again.
-
Page 11: Run Mode
For the first 5 -10 minutes after down drafting the fire may diminish slightly as it continues to heat up the bottom half of the fire After the RUA has been running for approx. 25 - 30 minutes total, the next load of fuel (1.5kg - 2.5kg) can be added. - Page 12 Should you need to have the start rod in the start position for more than 5 minutes each hour after lighting - call Tropicair for operational advice. Always use the fire correctly to achieve maximum benefit, keep emissions minimal and use the least amount of fuel.
-
Page 13: Cleaning And Maintenance
You should be able to clearly see 1 rows of holes in your flame stabilizer To empty ash from the bottom gasification chamber, wait for the Rua to go out. Once cold (preferable the day after the last use) open the lower door and dispose of the ash responsibly. -
Page 14: First Lighting
If the flue begins to glow red hot (or appliance makes bad noises) close the control rod to run and set air control too low fire (short rod out to right) and call Tropicair for advice. Ticking or a tinking/pinging sound from metal expanding as it heats up is very normal and is not abnormal. - Page 15 OPERATING INSTRUCTIONS ULEB TIP SHEET Tropicair ULEB’s need to be treated a little differently to your traditional wood burner, we have put together an informational Tip Sheet so that you can get the best out of your ULEB. Wood We recommend burning soft woods that have been seasoned or kiln dried. Wood that has high moisture content, very sappy or full of resin will cause jamming of the Flue’s downdraught lever, creosote will drip...
-
Page 16: Problem Solving
The below scenarios are answered for your assistance, though should you be encountering issues not described here or are not confident about an issue then feel free to contact Tropicair www.tropicair.co.nz | 03 379 0438. The glass gets dirty (dark brown) very quickly; especially the bottom glass and the fire will not stay in down draft. - Page 17 If this issue occurs more than once, then running your fire a little hotter and fuelling more often may be required (if the door seals and adjustments are correct). The Rua can only pull gas down for combustion if the flue is hot enough to pull the hot air up...
-
Page 18: Warranty Conditions
WARRANTY CONDITIONS The following warranty is available to the purchaser of the Tropicair Rua® Ultra Low Emission Burner (ULEB) during the period specified ULEB Firebox Warranty: 5-year warranty on the firebox of a Tropicair RUA® ULEB from the date of purchase. If a defect occurs, contact Tropicair directly and it will be repaired or replaced at the manufacture’s discretion at no cost. -
Page 19: Warranty Information
Address of Installation: SERVICE REQUIREMENTS Tropicair Rua® ULEB must be serviced every 2 years to meet consent regulations in accordance with the Environment Canterbury Regional Council and for your own insurance purposes. Servicing must be completed by Tropicair Heating 2021 Ltd or an accredited supplier. - Page 20 Flame stabilizer – fit for Check insulating board – Flame stabilizer – fit for fit for purpose purpose fit for purpose purpose Next 2 yearly service date due: Next 2 yearly service date due: tropicair heating 2021 ltd www.tropicair.co.nz 03 379 0438...
- Page 21 P.20 Parts tropicair heating 2021 ltd www.tropicair.co.nz 03 379 0438...
- Page 22 P.21 Parts tropicair heating 2021 ltd www.tropicair.co.nz 03 379 0438...
- Page 23 Bottom Firebox Front Brick 100-02-1068 Log Guard 100-15-1510 Top Firebox Front Brick 100-03-1066 Stainless Steel Bottom Baffle Plate 100-03-1200 RUA Flame stabilizer 100-15-1509 Top Firebox Baffle Retainer Brick 100-17-1700 Door Seal Rope Upper Door 100-14-1400 Door Glass and seal Upper door 100-14-1401...
