AERF WIRELESSBAND 2.F Instruction Manual

GB
TÜV Certificate nºM6A 14 12 90800 001

1. GENERAL

- Two channels wireless system communication, for the optical safety edge communication. For example, the pedestrian door contact to
control unit. The system has a long battery life (more than 4 years) working with a resistive or mechanical safety edge.
1.1 SAFETY INSTRUCTIONS
- Reaction time < 60ms (according TÜV test report AV86368T Certificate nº M6A 14 12 90800 001)
- A Relay test must be done before any operation to fulfill EN13849-1 Cat2 PL-C.
- Device with SELV/PELV Power Supply

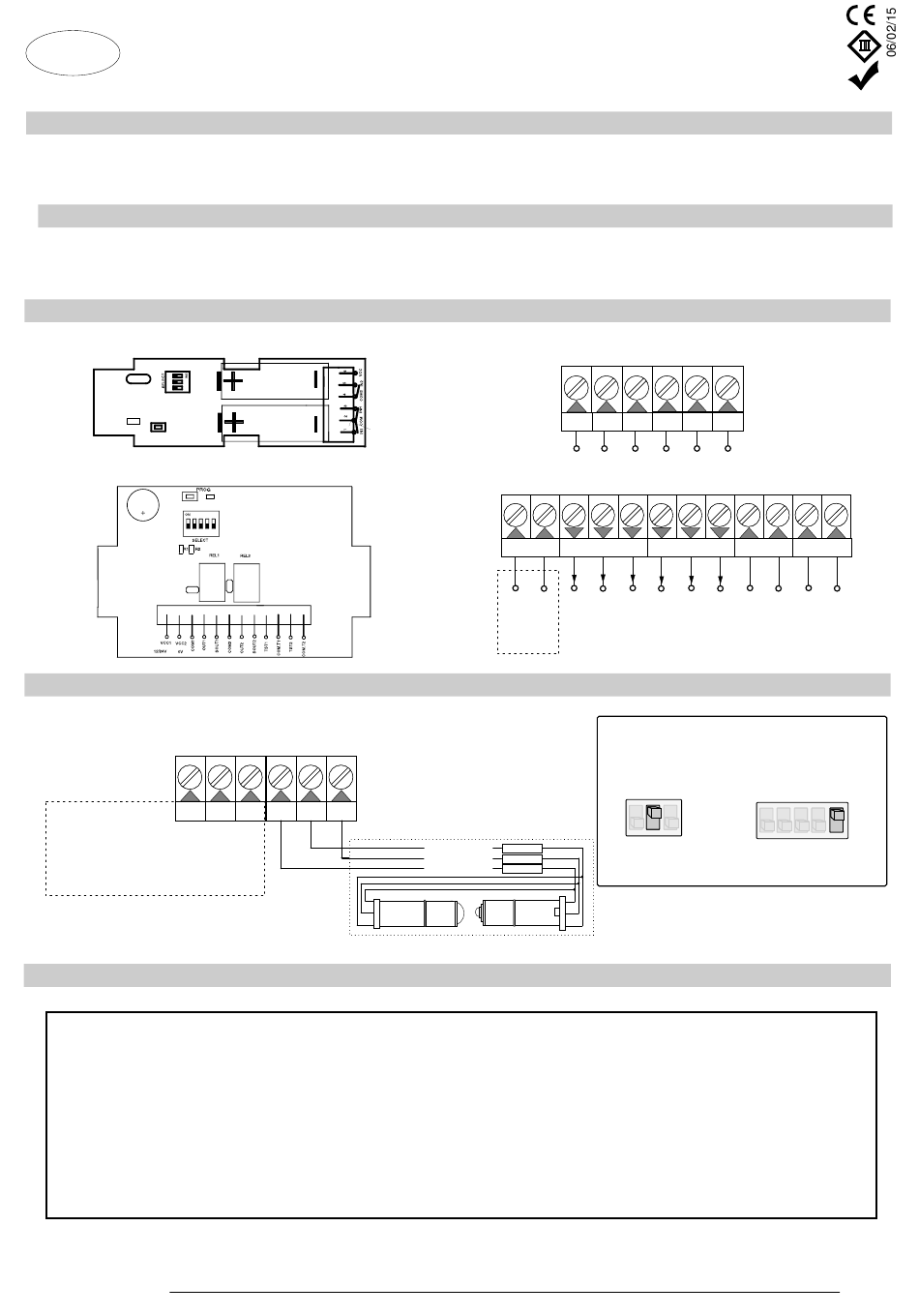

2. TRANSMITTER AND RECEIVER TERMINAL CONNECTIONS

TRANSMITTER
RECEIVER

3. TYPICAL CONFIGURATION FOR Optical Low Power Safety Edge (TRANSMITTER)

TRANSMITTER
1
INPUT 1
See points 4.3 and 10.1 for
other transmitter connections.

4. CONFIGURATION TYPES FOR Optical Low Power Safety Edge INHIBITION

WARNING!!
If used an Optical Safety Edge, we recommend that use the inhibitor for
extend the batteries life. Otherwise, the estimated life is about 6 months.
Desired Transmitter and receiver options must be set before the transmitter code memorization, otherwise system will not
work correctly. If there is some doubt about configuration is recomended to do a memory reset.
Examples:
- If you want to use transmitter inhibitor TX OPTION 2 and RX OPTION 5 must be OFF before the transmitter code memorization.
- If you want to use receiver inhibitor TX OPTION 2 and RX OPTION 5 must be ON before the transmitter code memorization.
WIRELESSBAND 2.F
Instruction Manual
( WIRELESSBAND 2.F)
2 3 4 5 6
COM 1 Inhibitor COM 2 INPUT 2 VCC
Optical Low Power Safety Edge
Translation of the original instructions
1
INPUT 1 COM 1
1 2 3
VCC1 VCC2
OUTPUT 1
~ -
~
+/
/
12/24V
AC/DC
OUTPUT SIGNAL GREEN
5 VDC BROWN
GND / 0V WHITE
2 3 4 5 6
INHIBITOR COM 2 INPUT 2 VCC
4 5 6 7 8 9 10
TEST
OUTPUT 2
RELAY 1
Receiver options configuration
for Optical Safety Edge
Inhibition active
Optical sensor power
in receiver (ON)
supply from receiver (ON)
ON
ON
+
1 2 3
1
Optical sensor power
supply from receiver (OFF)
RoHS
11 12
TEST RELAY 2 /
INHIBITOR
2 3 4 5
1 - 6
