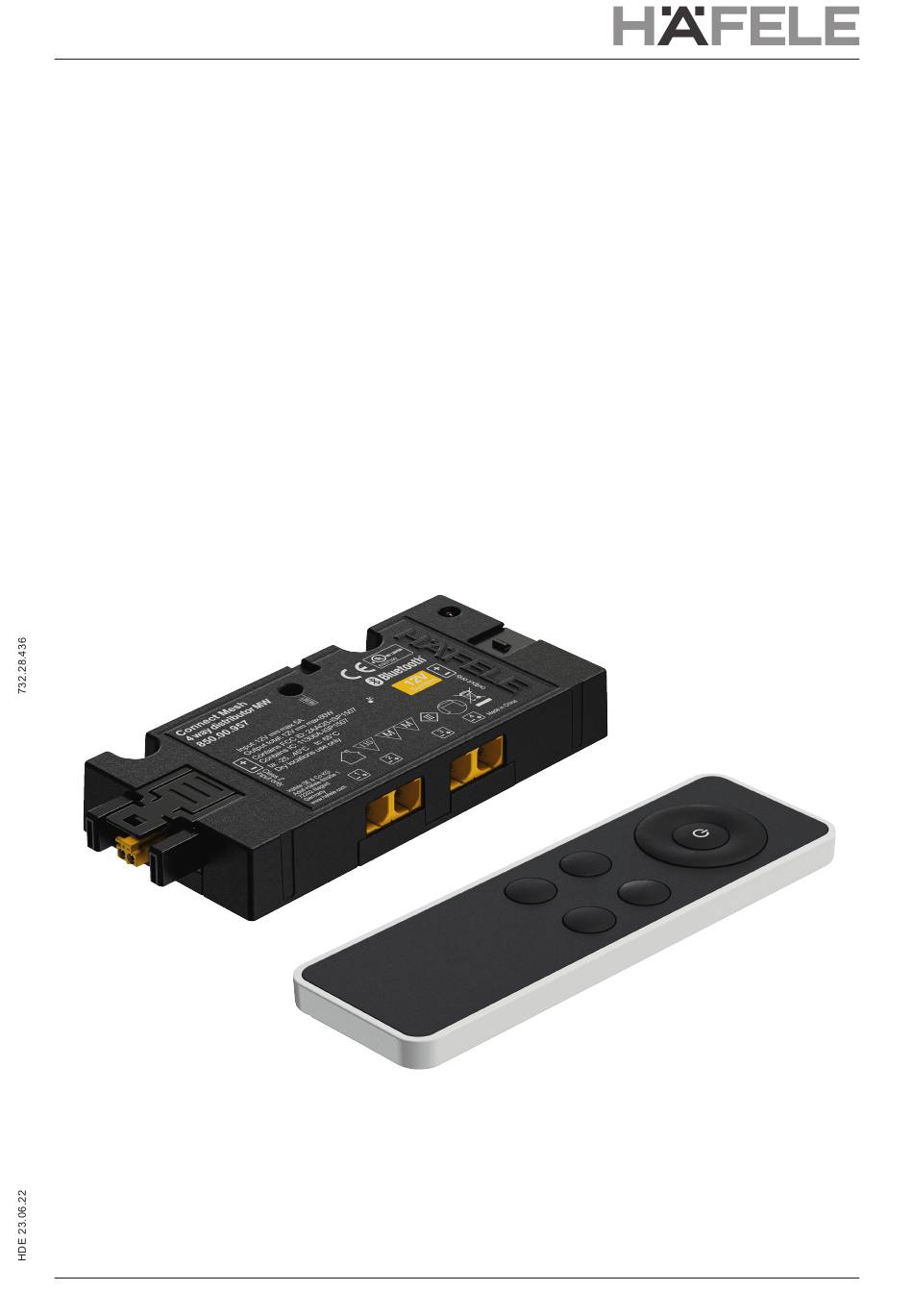

- Page 1 Häfele Connect Mesh Eco - Set Box RGB or Multiwhite and Remote Control Version 1.0...
-
Page 2: History
1. History Version Date Changes 03/2022 Initial Documentation... -
Page 3: Table Of Contents
Table of Content History General Information Valid for Connect Mesh Box Multiwhite/RGB Connect Mesh Remote Eco Getting started Installation Functions 3.2.1 Functions general 3.2.2 Changing Channels 3.2.3 Turning Groups On/Off 3.2.4 Changing Brightness 3.2.5 Changing Temperature 3.2.6 Changing Hue (Colour) 3.2.7 Colour run Resetting Reset of Connect Mesh Box Eco Reset of Connect Mesh Remote Eco... -
Page 4: General Information
2. General Information Valid for Article Number Consists of Set 1 – Multiwhite 12V 850.00.983 1 Remote Control 1 Connect Mesh Box Multiwhite 12 V Set 2 – Multiwhite 24V 850.00.984 1 Remote Control 1 Connect Mesh Box Multiwhite 24 V Set 3 –... -
Page 5: Getting Started
3. Getting started Installation 1. Power the Connect Mesh Box by plugging it into a Häfele Loox LED Driver. Make sure that the power supply unit and the box are from the same voltage system. Same voltage System Driver Constant Voltage Connect Mesh Box Device [Image 3] Installation Mesh Box and LED Driver (example shows 12V version) 2. -
Page 6: Functions
Functions 3.2.1 Functions general > By pressing ON/OFF all ports are controlled at the same time. > By pressing button 1 to 4 the selected Mesh Box turns ON. To turn this Mesh Box OFF press and hold the same button. To control the individual channels press the click wheel within 5 seconds. -
Page 7: Changing Channels
3.2.2 Changing Channels Every Connect Mesh Remote Eco has 5 channels (channel 0 all, channels 1-4). The integrated battery saving mode makes the device fall asleep after 5 seconds of no button press. If the user wakes up the Remote Eco by pressing any button, the remote device will control all channels (Channel 0). -
Page 8: Resetting
4. Resetting Reset of Connect Mesh Box Eco Press the Reset button for at least 8 seconds and release it. This will reset the Connect Mesh device. The Status LED will start blinking. Status LED Reset Button [Image 7] Connect Mesh Box Eco Multiwhite or RGB, Reset (example shows 24V multiwhite version) Reset of Connect Mesh Remote Eco Press the reset button for at least 8 seconds and release it. -
Page 9: Provisioning
5. Provisioning Adding Connect Mesh Boxes For adding boxes press at Connect Mesh Remote Eco the channel buttons 3 and 4 of the Connect Mesh Remote Eco simultaneously for 4 seconds. Press both for 4 seconds [Image 9] Connect Mesh Remote Eco, Adding Boxes The Connect Mesh Remote Eco status LED blinks slowly to indicate the running scan for addable mesh devices. -
Page 10: Status Led
6. Status LED Status LED Connect Mesh Box Eco The status LED is located on the top of the device. Status LED Behaviour Meaning The Connect Mesh Box has no power. Repeated blinking frequency The Connect Mesh Box is in provisioning mode and ready to be with one-second pause provisioned.
