Vesta UPIC-5 ZBS Quick Start Manual

UPIC-5 ZBS Infrared Universal Remote Control
Introduction
UPIC5-ZBS is a ZigBee Infrared Remote Control. It is designed to operate your home appliances by transmitting
IR signal. The IR Remote Control is capable of learning IR signal transmitted from the appliance's remote control.
After learning the signal, you can remotely control the IR Remote Control via ZigBee network to send signal to
appliance without using the remote control manually.
The IR Remote Control utilizes ZigBee technology for wireless signal transmission. ZigBee is a wireless
communication protocol that is reliable and has low power consumption and high transmission efficiency.
Based on the IEEE802.15.4 standard, ZigBee allows a large amount of devices to be included in a network and
coordinated for data exchange and signal transmission.
The IR Remote Control serves as an end device in the ZigBee network. It can be included in the ZigBee network
to transmit signal upon activation, but cannot permit any other ZigBee device to join the network through the
device itself.

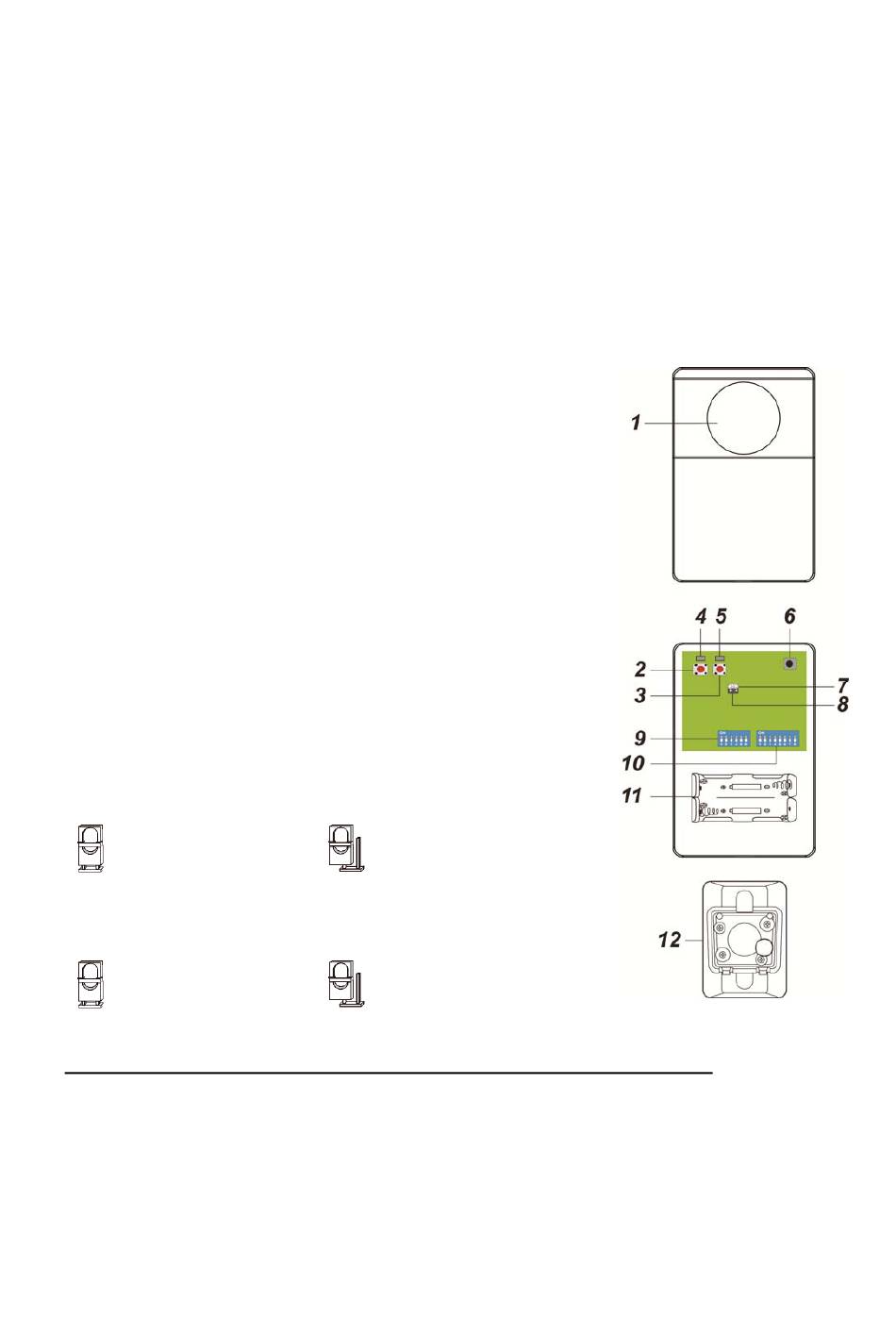

Parts Identification
1. IR Eye
Transmits IR signal to appliances
2. ZigBee Button
3. IR Button
4. ZigBee LED
Flashes twice –
IR Remote Control
Flashes every 20 minutes –
its current ZigBee network.
5. IR Indicator LED
Slow Flash – IR Remote Control under IR learning mode.
Quick Flash – IR Remote Control receives IR signal under learning
mode or is transmitting IR signal
Flash every half second – IR data cleared
Off – IR Remote Control is storing received IR signal under learning
mode.
– IR Remote Control is in idle mode.
6. IR Signal Receiver
7. Low IR Transmission Power Jumper (JP1)
Jumper On
The jumper link is inserted
connecting the two pins
Jumper ON – IR Transmission power set to Low. (Factory Default)
Jumper OFF – Deselected.
8. High IR Transmission Power Jumper (JP2)
Jumper On
The jumper link is inserted
connecting the two pins
Jumper ON – IR Transmission power set to High.
Jumper OFF – Deselected.
IMPORTANT NOTE: JP1 and JP2 jumper CANNOT be set to ON at the same time
9. Dip Switch Set 1
For setting appliance type
10. Dip Switch Set 2
For learning and testing IR signal
11. Battery Compartment
12. Wall Mounting Rotational Bracket (Optional)
.
successfully joins ZigBee network
has lost connection to
IR Remote Control
Jumper Off
if the jumper link is removed or "parked"
on one pin.
Jumper Off
if the jumper link is removed or "parked"
on one pin.
