Lavor L11A-ZB User Manual

Intelligent fingerprint combination lock
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
L11A-ZB
L11A-ZB
User Manual
樂
沃
享生活 由您掌

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the L11A-ZB and is the answer not in the manual?

Questions and answers

Summary of Contents for Lavor L11A-ZB

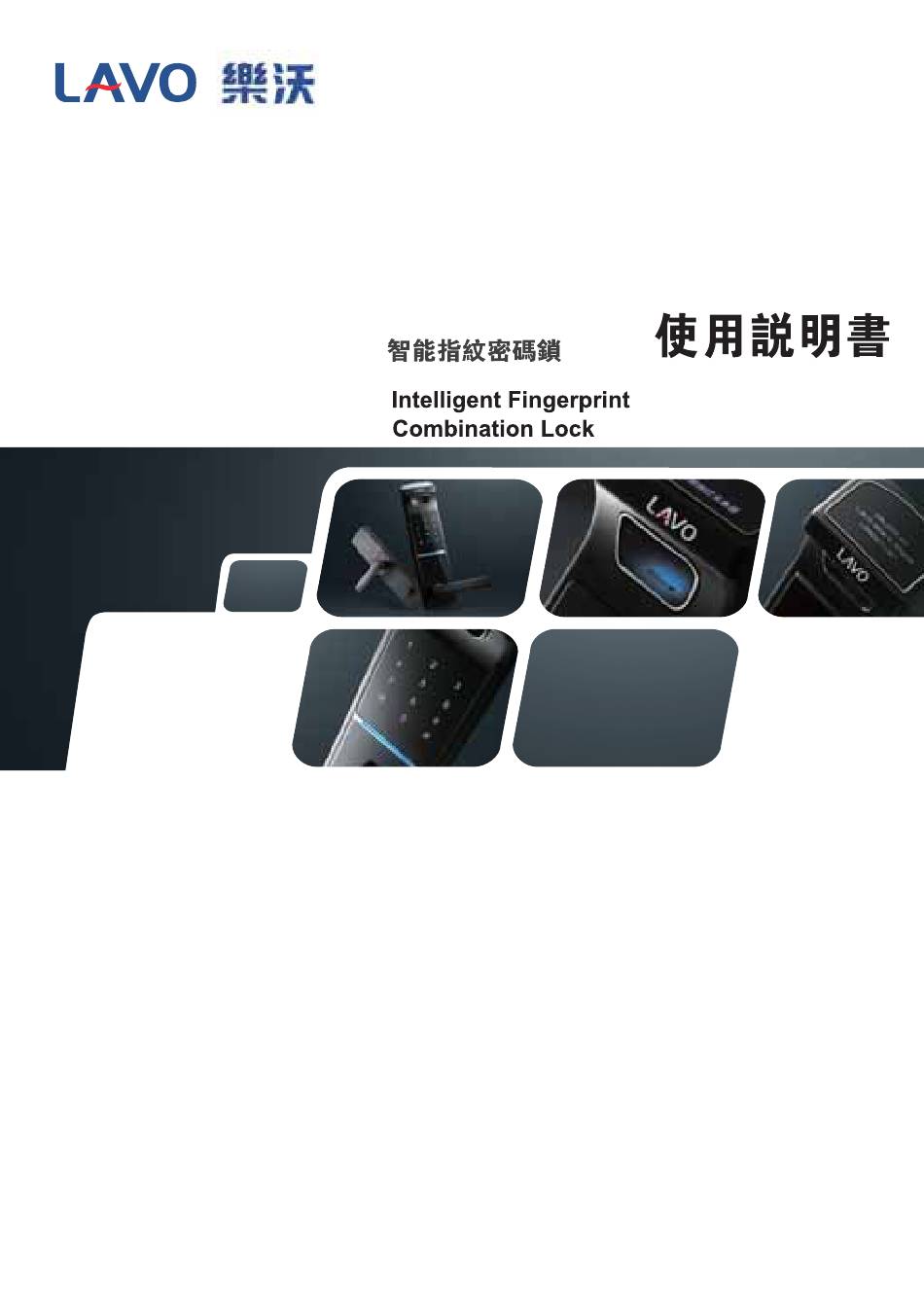

  • Page 1 L11A-ZB L11A-ZB User Manual 樂 沃 享生活 由您掌...
  • Page 4 歐美進口真皮層指紋識別技術 干...
  • Page 6 合金 干...
  • Page 9 “ ”...
  • Page 12 “系統設定”（見圖1.3）包括：系統信息、管理密碼設 定、開門方試設定、常開常閉設定、遠程控制（網絡連 接設置）...
  • Page 13 1 2 3 4 4 12...
  • Page 14 1 2 3 4 4 12...
  • Page 16 出...
  • Page 20 17.刪除指紋...
  • Page 24 1.41...
  • Page 25 網絡連接設置 操作說明：先打開後鎖體電池滑蓋，短按一下設定按鍵（圖1.70），輸入原管理者密 碼“1，2，3，4”按“#”號鍵結束（圖1.71），進入系統設定介面（圖1.42），進入遠程控制介 面（圖1.43），進入接入網絡介面（圖1.44），選擇成功後系統自動跳出設定成功介面（圖 1.45）。 手指向左滑到屏幕第1項， 進入系統設定介面 （圖1.42） 手指向下滑動確認 手指向下滑動確認 手指向下滑動確認 進入遠程控制介面 進入接入網絡介面 系統跳出成功介面 （圖1.43） （圖1.44） （圖1.45）...
  • Page 26 24.網絡斷開設置 操作說明：先打開後鎖體電池滑蓋，短按一下設定按鍵（圖1.70），輸入原管理者密 碼“1，2，3，4”按“#”號鍵結束（圖1.71），進入系統設定介面（圖1.42），進入遠程控制介 面（圖1.43），進入退出網絡介面（圖1.46），選擇成功後系統自動跳出設定成功介面（圖 1.47）。 手指向左滑到屏幕第1項， 進入系統設定介面 （圖1.42） 手指向下滑動確認 手指向下滑動確認 進入遠程控制介面 進入退出網絡介面 （圖1.43） （圖1.46） 手指向下滑動確認 系統跳出成功介面 （圖1.47）...
  • Page 29 User Manual L11A-ZB Intelligent Fingerprint Combination Lock...

  • Page 30: Table Of Contents

    Contents Correct Fingerprint Input Features of Product (Introduction of Functions) Specifications Parts Description Operation Instructions Booting Picture Inputting Cipher / Pressing Finger Interface Main Menu System Setting 10. System Information 11. Cipher Setting a. To Set User Cipher b. To Set Admin Cipher 12.

  • Page 31: Correct Fingerprint Input

    LAVO Smart Lock 1. Correct Fingerprint Input Method to put your finger Schematic Diagram for Fingerprint Touching Correct fingerprint input Incorrect fingerprint input...
  • Page 32 LAVO Smart Lock European and American import...
  • Page 33 LAVO Smart Lock Electric shock protection (ESD protection) It remains normal working when suffering from high- volta-ge electric shock. Lift-locking function The electric controlled lock designed for Chinese security doors can be easily locked only by lifting the handle when you get out, enhancing the security. Inside locking function It’s designed to prevent children from touching the inside lock button.
  • Page 34 LAVO Smart Lock Low Power 3. Specifications and Composition Remark Spec. Item Front piece 160W x 325H x 85D (outdoor) Back piece 160W x 325H x 85D (indoor) Zinc Alloy Die Casting (front & back) Ergonomic design Handle Others 3 emergency keys Allow 100 fingerprints to the maximum Weight...

  • Page 35: Parts Description

    LAVO Smart Lock 4. Parts Description Outdoor piece OLED display screen Fingerprint identification Move finger upward at the touch cipher panel to return to collecting area the previous menu Move finger in a left-right Move finger in a left-right way at the touch cipher way at the touch cipher Cipher button on panel to select an item...
  • Page 36 LAVO Smart Lock Indoor piece Battery sliding cover Battery sliding cover Administration menu button Handle Security button Attention: For lock up, please pull and turn this switch button. For unlock, please turn back this switch button.

  • Page 37: Operation Instructions

    LAVO Smart Lock 5. Operation Instructions Touch PWD Keyboard Panel After energized, the boot screen will display and the digits flash on the screen, then the system will enter the operation interface. The commands are mainly made by touching the PWD Keyboard Panel by your finger, sliding left/right to select, sliding up to superior menu and sliding down to enter the selected item.

  • Page 38: Inputting Cipher / Pressing Finger Interface

    LAVO Smart Lock 6. Staring Picture After the touch button area is powered on, the pressing fingerprint / inputting password interface display automatically. ln case of lower battery electric quantity,the picture of low electric quantity will be shown on the screen after the booting. 7.
  • Page 39 LAVO Smart Lock...
  • Page 40 LAVO Smart Lock “System Set”(see Fig.1.3) includes setting, System Info, Admin PWD set ,Security set, Locker set and Remote Control(Connection Setting of Internet)
  • Page 41 LAVO Smart Lock 11. Password Setting a. To Set User Password Attention: The default password: “ 1, 2, 3, 4”, please modify your password after getting the product. The password can be set to 4 12 digits and the product has only 1 User Password. Instructions: Open the battery cover on the back and short press the menu button (Fig.
  • Page 42 LAVO Smart Lock b. To Set Admin Password Attention: The default password: “1, 2, 3, 4”, please modify your password after getting the product. The password can be set to 4 12 digits and the product has only 1 Admin Password. Instructions: Open the battery cover on the back and short press the menu button (Fig.

  • Page 43: Setting Means Of Opening

    LAVO Smart Lock 12. Setting Means of Opening Instructions: Open the battery cover on the back and short press the menu button (Fig. 1.70), input the original Admin Password “1, 2, 3, 4” ended with a “#” (Fig. 1.71) to enter the interface to System Set (Fig.

  • Page 44: Setting Constant Locking/Unlocking

    LAVO Smart Lock 13. Setting Constant Locking/Unlocking Instructions: Open the battery cover on the back and short press the menu button (Fig. 1.70), input the original Admin Password “1, 2, 3, 4” ended with a “#” (Fig. 1.71) to enter the interface to System Set (Fig.

  • Page 45: User Setting

    LAVO Smart Lock 14. User Setting “User setting” (see Fig.1.23) includes options of registered fingerprint, fingerprint register, deletion and empty. User setting (Fig.1.23) Registered fingerprint Fingerprint register Fingerprint deletion Fingerprint empty 15. Registered Fingerprint After entering into the interface of registered fingerprint (see Fig.1.24), the ID of registered user is shown.

  • Page 46: Fingerprint Register

    LAVO Smart Lock 16. Fingerprint Register Instructions: Open the battery cover on the back and short press the menu button (Fig. 1.70), input the original Admin Password “1, 2, 3, 4” ended with a “#” (Fig. 1.71) to enter the interface of User Management (Fig.

  • Page 47: Fingerprint Deletion

    LAVO Smart Lock Enter interface of Birthday Input your birthday Input your birthday and push Set after Enroll Finger e.g. 10MM10DD “#” to confirm, it will display (Fig. 1.30) (Fig. 1.301) Setting OK (Fig. 1.302) Enroll your finger and push “*” to continue or “#”...

  • Page 48: Fingerprint Empty

    LAVO Smart Lock Slide down finger to confirm Slide down finger to Item 3 to Input ID that you want to and input User ID (00~99 the interface of Delete Finger delete, push “#” to confirm or digits) that you want to delete (Fig.
  • Page 49 LAVO Smart Lock Slide down finger to rightest After sliding finger down, Push “#” to confirm, Item to the interface of Empty push “#” to confirm or “*” to Finger Cleared Finger cancel (Fig. 1.342) (Fig. 1.34) (Fig. 1.341) The system returns to Empty Finger after deletion 19.

  • Page 50: Date Setting

    LAVO Smart Lock Setting OK after Language (Fig. 1.36) 20. DATE/TIME Setting Instructions: Open the battery cover on the back and short press the menu button (Fig. 1.70), input the original Admin Password “1, 2, 3, 4” ended with a “#” (Fig. 1.71) and enter the interface of Datetime Set (Fig.

  • Page 51: Birthday Reminding Setting

    LAVO Smart Lock 21. Birthday Reminding Setting Instructions: Open the battery cover on the back and short press the menu button (Fig. 1.70), input the original Admin Password “1, 2, 3, 4” ended with a “#” (Fig. 1.71) and enter the interface of Birthday Set (Fig.

  • Page 52: Connection Setting Of Internet

    LAVO Smart Lock 22.Initialization setting Uncover the back piece battery box and press Menu button for 6 seconds the screen shows “Resume factory ALL DATE LOS # ok * CANCEL Rest Confirm”, “*” button confirmation. “#” button confirmation.Press“#”button to resume the factory default. Initiation indicates deletion of all fingerprints and ciphers, and the initial admin cipher is “1, 2, 3, 4”.

  • Page 53: Disconnection Setting Of Internet

    LAVO Smart Lock 24. Disconnection Setting of Internet Operating instructions: first open the lock body cell slide, short press the set button (Fig. 1.70), enter the original password managers to "1, 2, 3, 4," according to the "#" end (Fig. 1.71), enter the system setup interface (Fig.
  • Page 54 LAVO Smart Lock 25. Notices for Use In registering or reading the fingerprint, operation may fail or picture quality of collected fingerprint is poor due to improper putting finger on the fingerprint collector. Try to put your finger at the center of the fingerprint collector. The fingerprint is collected in optical manner;...

  • Page 55: After-Sales Services

    LAVO Smart Lock 26. After-sales Services Don’t try to detach or assemble the product arbitrarily, or clean it with water. In case of product abnormalities, please contact our After Service Dept. Please well keep the Warranty Card during product installation. If lost, product failures shall be served at user’s costs within a year.
  • Page 56 LCM GROUP 66 11 +886-4-732-2121 +866-4-732-3840 Edison@lcm.com.tw E-mail: kevin@lcm.com.tw service@lcm.com.tw info@lavo.tw http: //www.lcm.com.tw http://www.lavo.tw 0512-57478688 0512-57478788 E-mail: kevin@lavo.cn Agate@lcm.com.tw Yifeng@lavo.cn Ganyan@lavo.cn http: //www.lavo.cn A/S: 400-165-8588 LCM GROUP Address: No. 11 Lane 66, Fu Tong Street, Fu Shan Li, Changhua, Taiwan Tel: +886-4-732-2121 Fax: +886-4-732-3840 Edison@lcm.com.tw...
