Buffalo Tools AFPR3814 Instruction Manual

3/8 in. Filter Regulator Lubricator
READ ALL INSTRUCTIONS AND WARNINGS BEFORE USING THIS PRODUCT.
This manual provides important information on proper operation & maintenance. Every effort has been
made to ensure the accuracy of this manual. These instructions are not meant to cover every possible
condition and situation that may occur. We reserve the right to change this product at any time without
prior notice.
IF THERE IS ANY QUESTION ABOUT A CONDITION BEING SAFE OR UNSAFE,
DO NOT OPERATE THIS PRODUCT!
Q Q u u e e s s t t i i o o n n s s ? ? P P r r o o b b l l e e m m s s ? ? C C a a l l l l C C u u s s t t o o m m e e r r Se e r r v v i i c c e e . .
If you experience a problem, have questions or need parts for this product, call Customer Service at
1-636-532-9888 - - , Monday-Friday, 8 AM - 4 PM Central Time. A copy of the sales receipt is required.
FOR CONSUMER USE ONLY
KEEP THIS MANUAL, SALES RECEIPT & APPLICABLE WARRANTY FOR FUTURE
REFERENCE.
Specifications

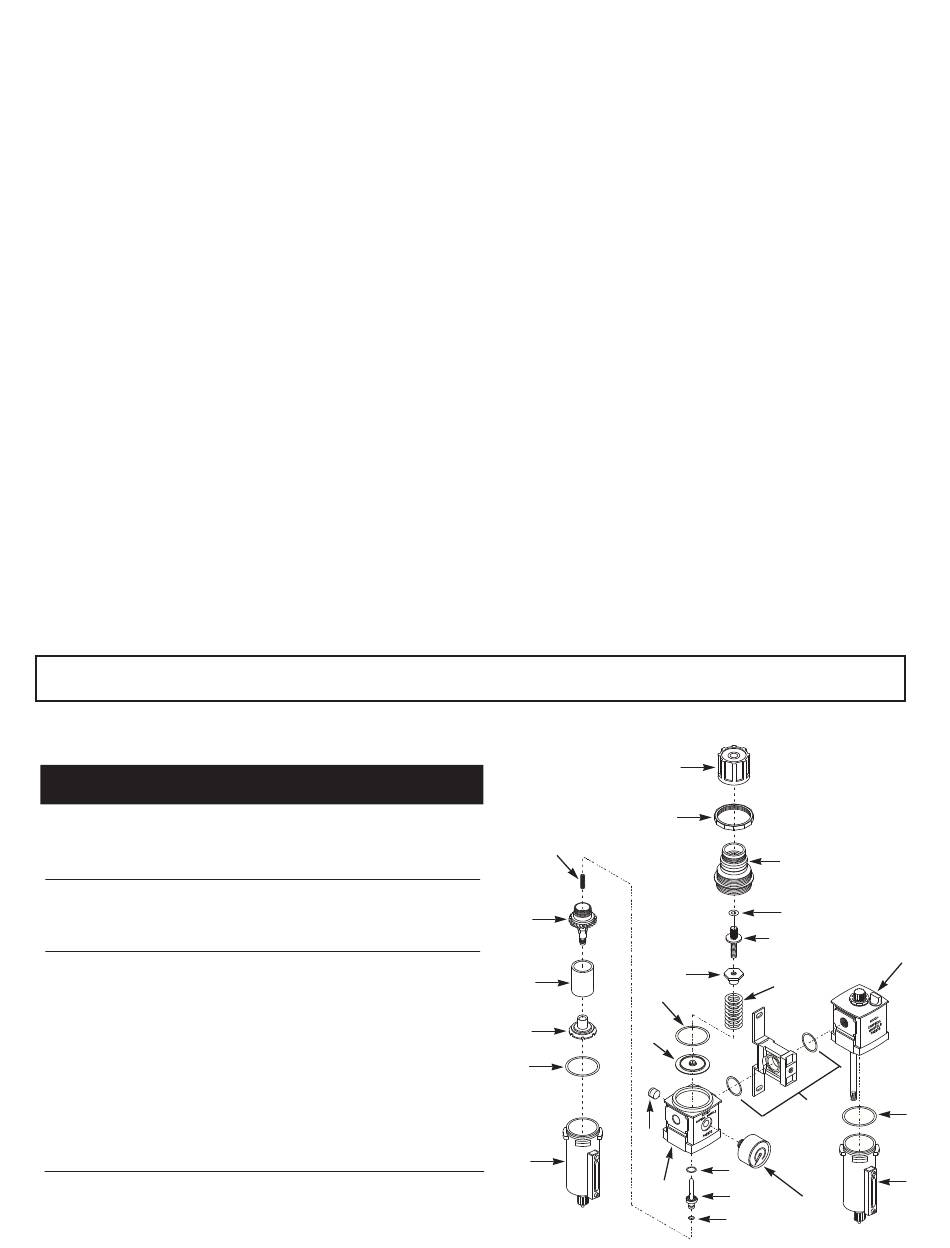

Replacement Parts List
Ref.
No. Description
1 Metal bowl with sight gauge
2 O-ring (Bowl)
3 Filter element base
4 Filter element
5 Baffle
6 Valve spring
7 O-ring (Valve stem)
8 Valve stem
9 O-ring (Valve stem)
10 Filter/regulator body & cover
11 Gauge
12 Plug - 1/4" NPT
13 Diaphragm assembly
14 Slip ring
15 Main spring
16 Adjusting screw assembly nut
17 Adjusting screw
18 Thrust washer
19 Bonnet
20 Panel nut
21 Knob
22 T-Bracket with joiner set
23 Lubricator body and cover
ITEM # AFPR3814
3-in-1 Combo with Gauge
Instruction Manual
– NOT FOR PROFESSIONAL USE.
Maximum Input Pressure 116 PSI
Part
Number
--
--
--
PA1165000
--
--
--
--
--
--
SV899600AV
SV995500AV
--
--
--
--
--
--
--
--
--
SV995200AV
--
Max. Temp 175˚
Qty.
2
2
1
6
1
1
1
5
1
1
1
1
4
1
1
3
1
1
2
1
1
1
1
1
1
1
1
1
1
Air Flow 80 SCFM @90 PSI
21
20
19
18
17
16
15
14
13
22
12
9
10
8
11
7
23
2
1
