Mapex MVBD-MPN Assembly Instruction

MVBD-MPN
ASSEMBLY INSTRUCTION

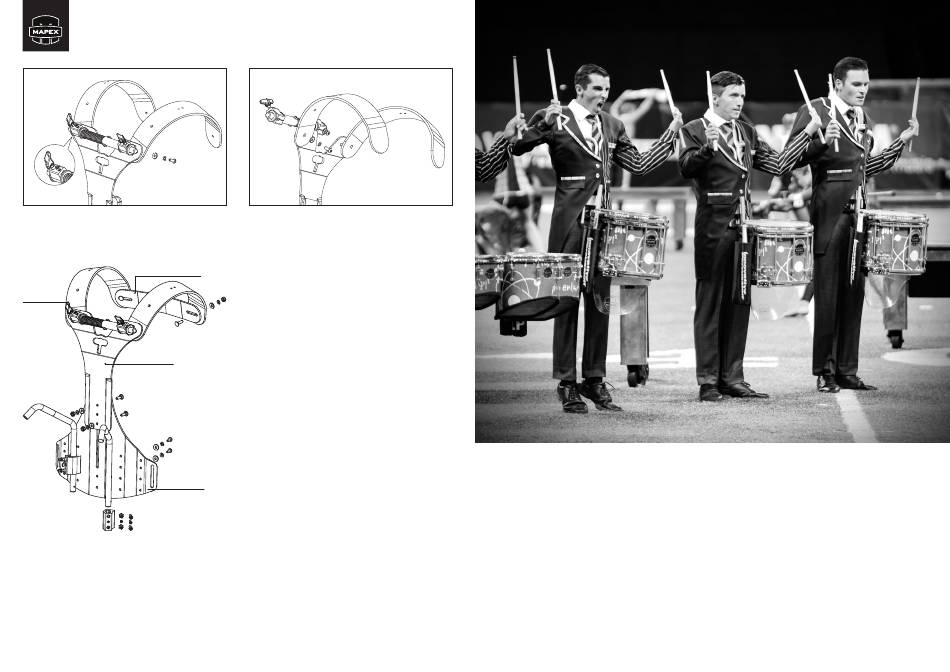

Step 1:
Fasten the bass drum attachment to the chest and
shoulder plates in the above order.
Back support
Shoulder
plate
Chest plate
Belly plate
How to use the bass drum attachment:
Compress the spring to shorten the length of the attachment and insert one end into
one of the bass drum eye-bolts. Relax the spring to return the attachment to its natural
extended length, and allow the remaining end to slide into the unoccupied eye-bolt.
Tighten the wing nut for additional security.
For further information, please refer to the official MAPEX website.
marching bass drum carrier
Step 2:
Fasten the belly plate to the chest plate
(J-Hook fixers should be already attached
to the belly plate).
Step 3:
Fasten back support plates to shoulder
plates.
Step 4:
Adjust width and angle of shoulder plates
to fit comfortably.
Step 5:
Adjust belly plate to suitable position.
Step 6:
Add belt (if required) & padding to the
belly, shoulder and back support plate.
The carrier is now ready for use.
MAPEX Marching Vest Carriers
Assembly Manual
Ver. 2022.07
