Summary of Contents for Dametric GIR-DM1

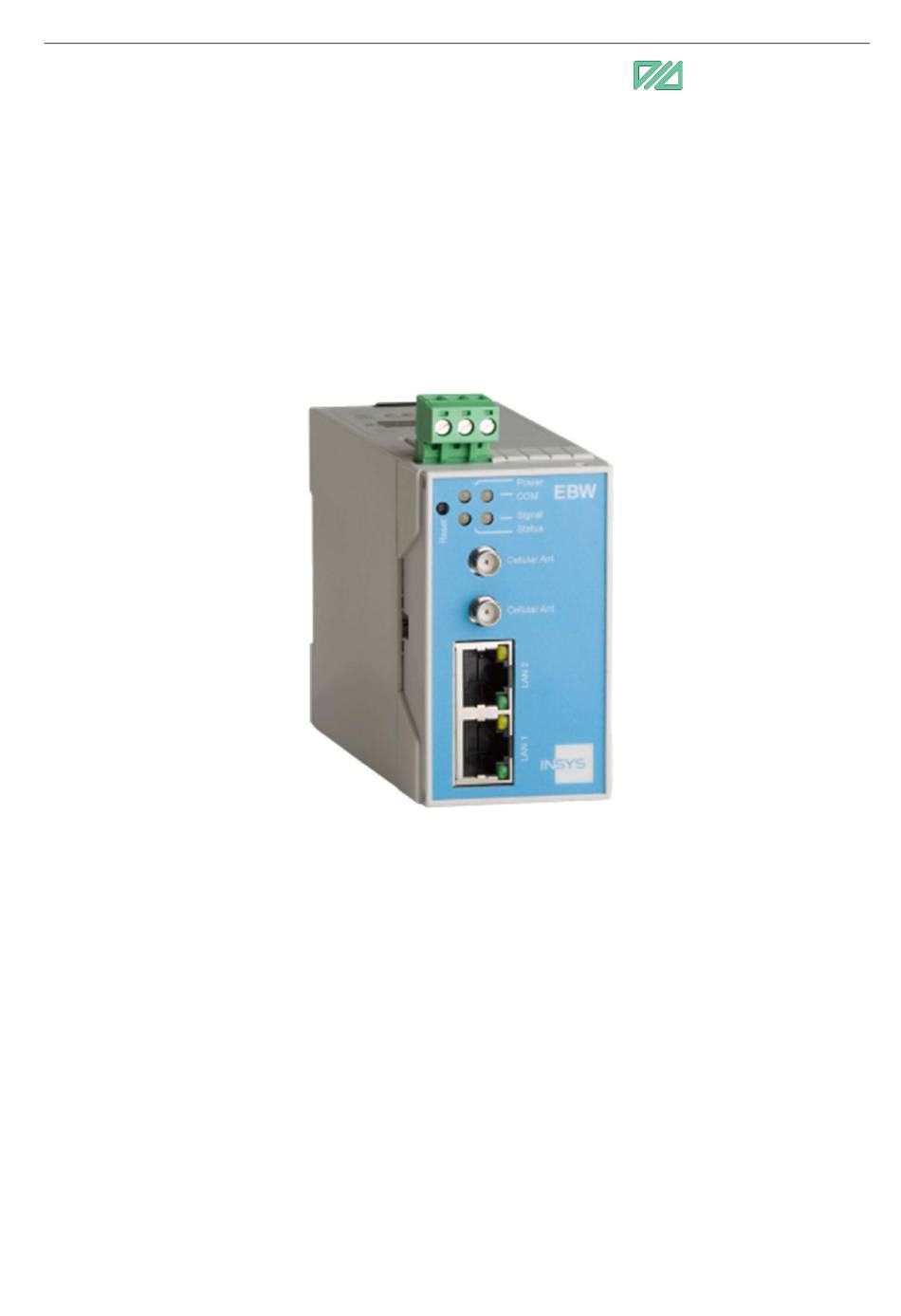

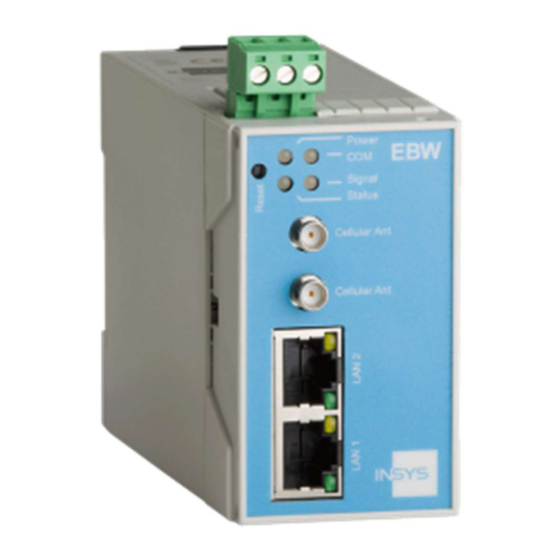

- Page 1 Dametric AB GIR-DM1 GMS Industrial Router dametric GIR-DM1 GMS Industrial 4G Router Description GIR-DM1 EN.docx Sept. 14, 2015 / BL Page 1 of 7...
- Page 2 CONNECTION ......................... 7 CONTACT ........................7 General The GIR-DM1 is an industrial 4G router and the unit is used in RMS/GMS systems for remote access functions. The one and only task for the remote access system is for Dametric to supply support and service to the AGS system end user.
- Page 3 Length = 110,width = 45, height = 70 Operating temperature -30...+ 60 °C> -30...+ 75 °C under limited conditions (refer to under www.insys-icom.com/restricted) Humidity 0...95% (non condensing). Mounting DIN-rail on the back side GIR-DM1 EN.docx Sept. 14, 2015 / BL Page 3 of 7...
- Page 4 200 ms on, 200 ms off 13 .. 19 good 100 ms on, 900 ms off 0 .. 12 poor 99 (not detectable) insufficient Table 2: Blinking code of the data/signal LED GIR-DM1 EN.docx Sept. 14, 2015 / BL Page 4 of 7...
- Page 5 Table 7: Description of the connections on the front panel of the device The screen of the antenna system must be connected to the protective conductor when using an outside mounted antenna. GIR-DM1 EN.docx Sept. 14, 2015 / BL Page 5 of 7...
- Page 6 DIN rail. Lift the device perpendicular to the DIN rail until the two lower, flexible snap-in hooks engage in the DIN rail. GIR-DM1 EN.docx Sept. 14, 2015 / BL Page 6 of 7...
- Page 7 7.1 LAN settings The unit has to be configured for the chosen installation. This is done by Dametric at delivery and the IP- address is specified on the label on the left side of the unit. The standard IP-address used is 192.169.11.50 (mask = 255.255.252.0).
