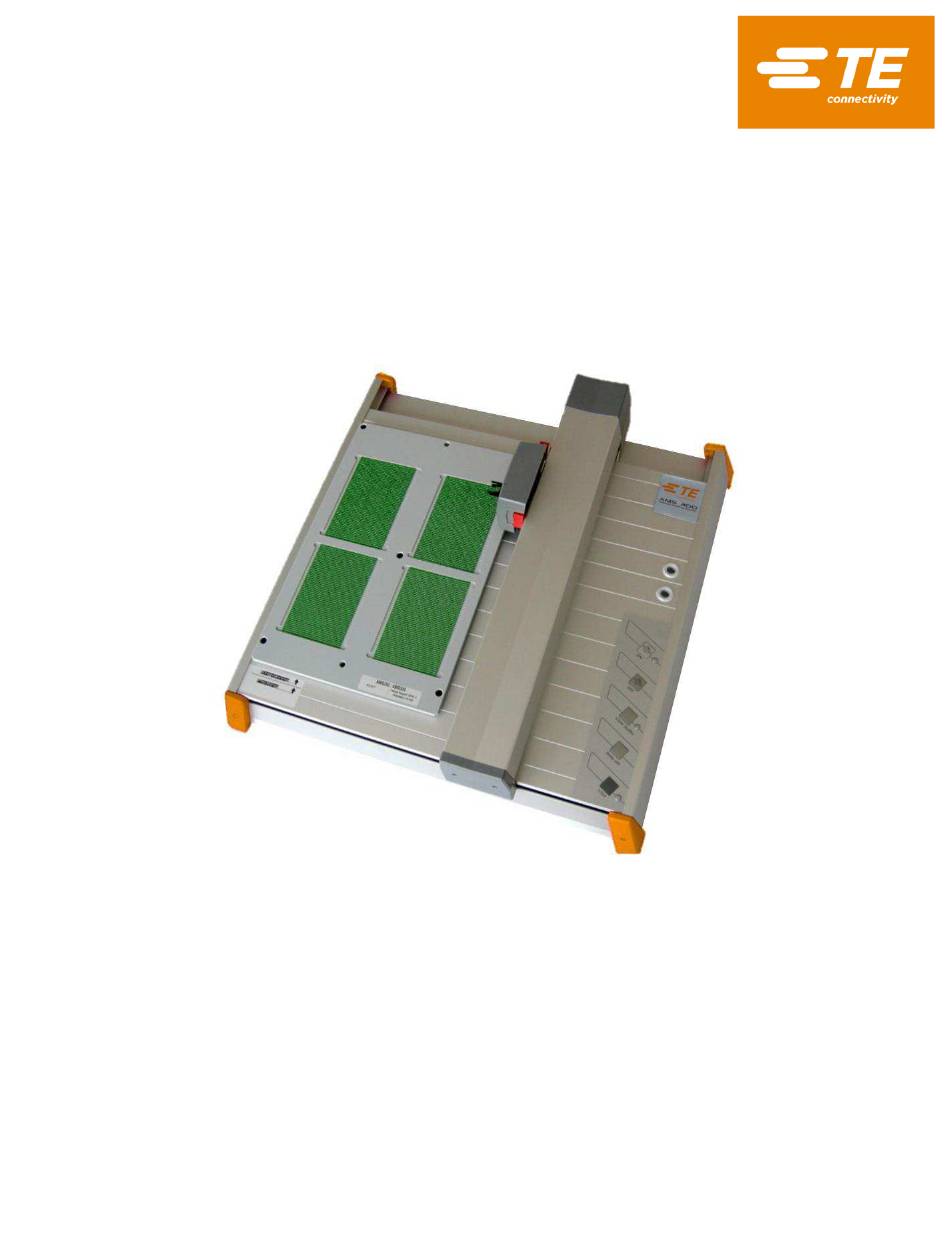

AMS300 PLOTTER OPERATING
THIS IS A CLASS 1 DOCUMENT WHICH IS NONCONFIDENTIAL.
The information contained within this document is the property of TE Connectivity. It is supplied in confidence and the
commercial security of the contents must be maintained. It must not be used for any purpose other than that for
which it is supplied nor may any information contained in it be disclosed to unauthorised persons. It must not be
reproduced in whole or in part without obtaining written permission from TE Connectivity (TE).
While TE has made every reasonable effort to ensure the accuracy of the information in this catalog, TE does not guarantee that it is error-free, nor does TE make any other representation,
warranty or guarantee that the information is accurate, correct, reliable or current. TE reserves the right to make any adjustments to the information contained herein at any time without notice.
TE expressly disclaims all implied warranties regarding the information contained herein, including, but not limited to, any implied warranties of merchantability or fitness for a particular purpose.
© 2021 TE Connectivity Ltd. family of companies.
The dimensions in this catalog are for reference purposes only and are subject to change without notice. Specifications are subject to change without notice. Consult TE for the latest dimensions
All Rights Reserved.
and design specifications.
| Indicates Change
Rev [1]
*Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their respective owners.
INSTRUCTION
INSTRUCTIONS
TE Proprietary & Confidential Information
Class I Data Classification - See Policy TEC-02-04
1 of 15
8 October 2021
Advertisement
Table of Contents
Related Manuals for TE Connectivity AMS300
Summary of Contents for TE Connectivity AMS300
- Page 1 Class I Data Classification - See Policy TEC-02-04 | Indicates Change Rev [1] *Trademark. TE Connectivity, TE connectivity (logo), and TE (logo) are trademarks. Other logos, product and/or company names may be trademarks of their respective owners. 8 October 2021...
-
Page 2: Table Of Contents
Table of Contents 1. INTRODUCTION ........................... 3 2. ITEMS SUPPLIED ........................4 3. PRODUCT OVERVIEW ......................5 4. SETTING UP THE AMS300 PLOTTER ................6 5. OPERATION ........................... 7 6. CLEANING AND PRODUCT CARE ................10 7. ACCESSORIES ......................... 10 8. -
Page 3: Introduction

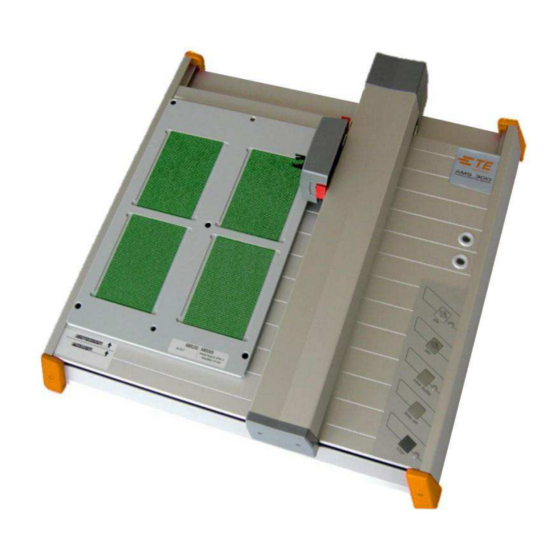

411-121100 INSTRUCTION CLASS 1- Public 1. INTRODUCTION Thank you for purchasing the AMS300, a flexible plotter that helps you label marking elements quickly and easily. Rugged construction in stylish aluminium Labelling area 273 mm x 305 mm Easy to change fixtures to suit a variety of marking elements Auto calibration no adjustment necessary Capable of labelling marking elements up to 10.5 mm in height. -
Page 4: Items Supplied
2. AMS Software CD 3. AMS Power supply cable 4. AMS USB cable 5. Support plate RC/RCT Half size (SPRC-2) © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 4 of 15 All Rights Reserved. Class I Data Classification - See Policy TEC-02-04... -
Page 5: Product Overview
8) Plotter pen storage location 9) Control panel/control keys 10) Plotting arm 11) Plug for positioning stud for zero setting engraving tool © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 5 of 15 All Rights Reserved. -
Page 6: Setting Up The Ams300 Plotter
Do not expose the system to direct sunlight. Please ensure that the connections on the back right-hand side of the device are accessible at all times. Position the AMS300 firmly on the work surface where it is to be used, ensuring it is level. -
Page 7: Operation
PC. Clear buffer If the AMS300 contains data, the yellow light will come on. You can delete this data by pressing the Clear buffer key. To do this the system must be in stop mode (red light on). - Page 8 Prior to starting the plot, please select the pen with the desired tip width and make sure to prime the pen on a plastic surface. Insert the pen directly into the pen holder. The plotter always re-calibrates prior to first plotting. © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 8 of 15 All Rights Reserved.
- Page 9 You can also add the elements first and then place the support plate on the plotter. Please note: The plotter always re-calibrates prior to first plotting. © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 9 of 15 All Rights Reserved.
-
Page 10: Cleaning And Product Care
CLASS 1- Public 6. CLEANING AND PRODUCT CARE Protect the AMS300 from dust and other dirt. When not in use, cover the plotter. A special dust cover is available as an accessory. Wipe the device occasionally after use with a dry, lint-free cloth or a mild cleaning agent. -
Page 11: Trouble Shooting
5375 (08/13) 411-121100 INSTRUCTION CLASS 1- Public 8. TROUBLE SHOOTING If your AMS300 plotter is not functioning correctly, please check the following: Functional error Potential solution Check whether the mains plug and connecting plug are plugged in and switched on correctly. -
Page 12: Technical Information
EN 61000-4-2, -4-3, -4-4, -4-5, -4-6 Dimensions: 470 mm x 480 mm x 155 mm Weight: 6.3 kg © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 12 of 15 All Rights Reserved. Class I Data Classification - See Policy TEC-02-04... -
Page 13: Instructions For Packaging The Ams300
Y-arm Two corner pieces Inside the box Accessory Box Inside the box complete © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 13 of 15 All Rights Reserved. Class I Data Classification - See Policy TEC-02-04... -
Page 14: Safety Instructions
●Netzstecker nicht am Kabel aus der Steckdose ziehen ●Reparaturen an diesem Gerät, einschließlich der Austausch der Netzzuleitung, dürfen nur von Fachkräften durchgeführt werden © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 14 of 15 All Rights Reserved. - Page 15 ●Desconecte el equipo de la red de alimentación por medio de la ficha, nunca tirando del cordón. ●Todas las reparaciones, incluyendo el reemplazo del cordón de alimentación, deben ser realizadas por personal técnico calificado. © 2021 TE Connectivity Ltd. family of companies. TE Proprietary & Confidential Information 15 of 15 All Rights Reserved.
