Summary of Contents for Osculati 29.531.00

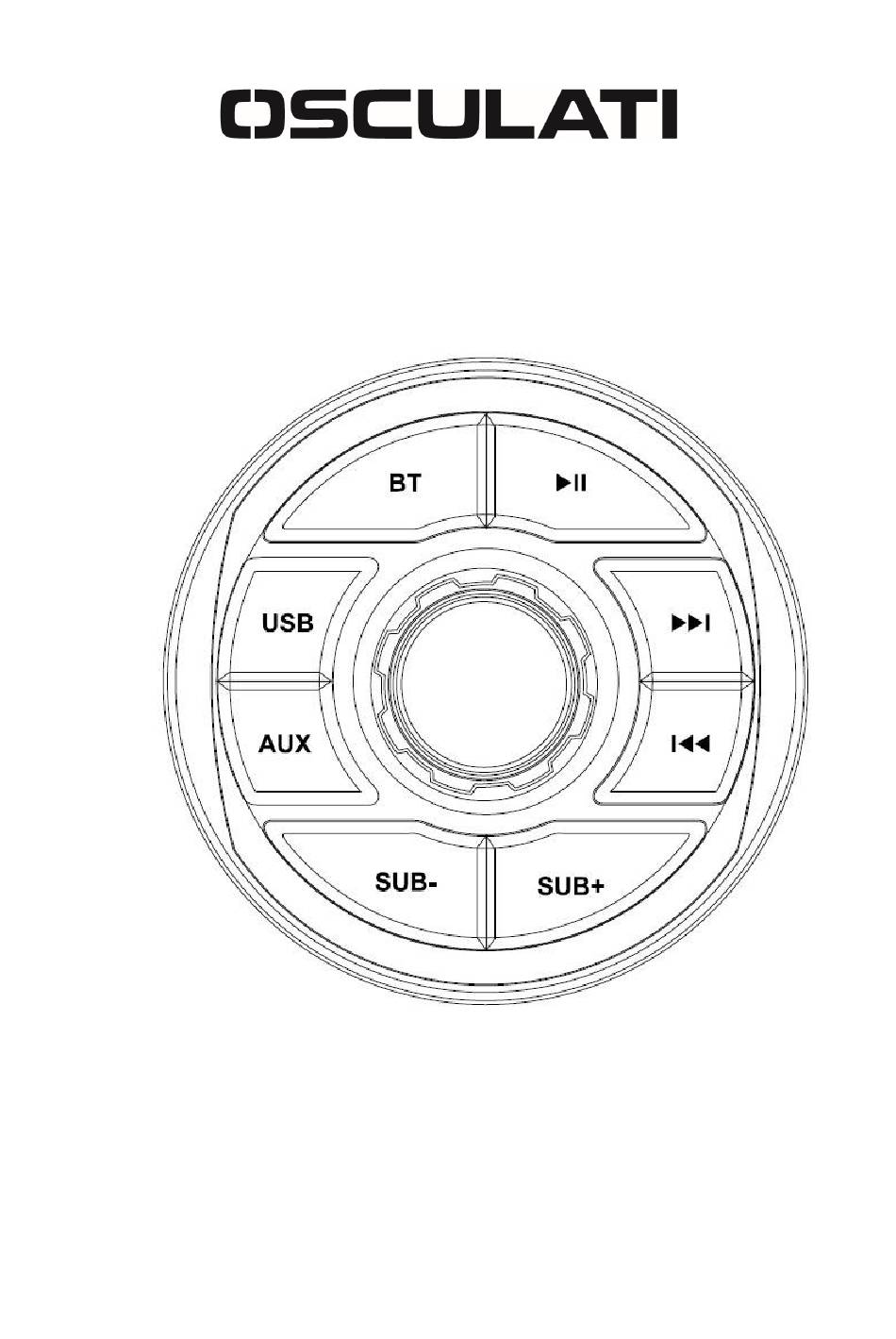

- Page 1 USER MANUAL Installation OWNER’S MANUAL Code 29.531.00 Please read the instruction carefully before operating the unit...
- Page 2 Installation ATTENTIONS OF INSTALLATION 1.This player should be installed by professional technician. 2. please read the instruction and operation of equipment carefully before installing. 3. Make sure to connect other wires before power connection. 4. To avoid short circuit. Please make sure all the exposed wire are insulating. 5.
- Page 3 Installation WIRING CONNECTION 1. This player can only be used by the 12V DC cathode grounding electrical system. 2. Do not connect the battery terminal until the player is fully well installation. 3. Please make sure to connect the yellow wire to the positive of the battery(+). 4.

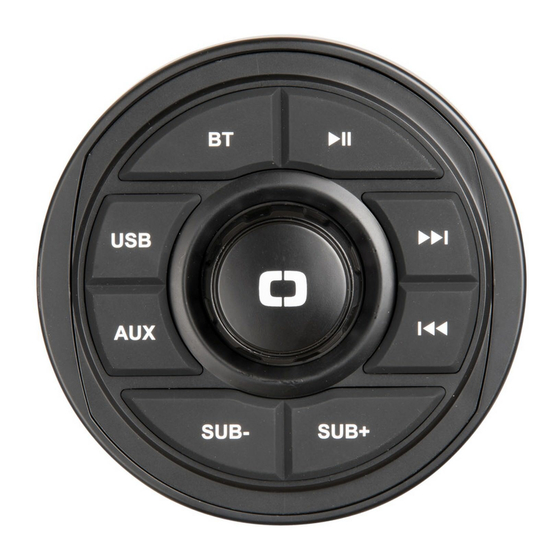

- Page 4 KEY FUNCTION LOCATION OF KEYS 1. USB source button previous track button 2. BT source button 7. SUB volume+ button 3. VOL button 8. SUB volume- button PAUSE button 9. AUX source button Next track button...
- Page 5 TROUBLE SHOOTING Turn on/off the unit Press VOL knob to turn on the unit. When the unit is on. Press and hold this button to turn off the unit. Volume up/down Rotate the VOL knob to up/down the volume. Volume up/down Press SUB+/SUB- button to up/down the subwoofer volume.
- Page 6 TROUBLE SHOOTING GENERAL Power Supply Requirements : DC 12 Volts, Negative Ground Chassis Dimensions : 100(W) x 100 (D) x 70(H) Tone Controls Bass (at 100 Hz) : ±10 dB Treble (at 10 kHz) : ±10 dB Maximum Output Power : 4 x 40 watts Current Drain : 10 Ampere (max.) TROUBLE SHOOTING...
