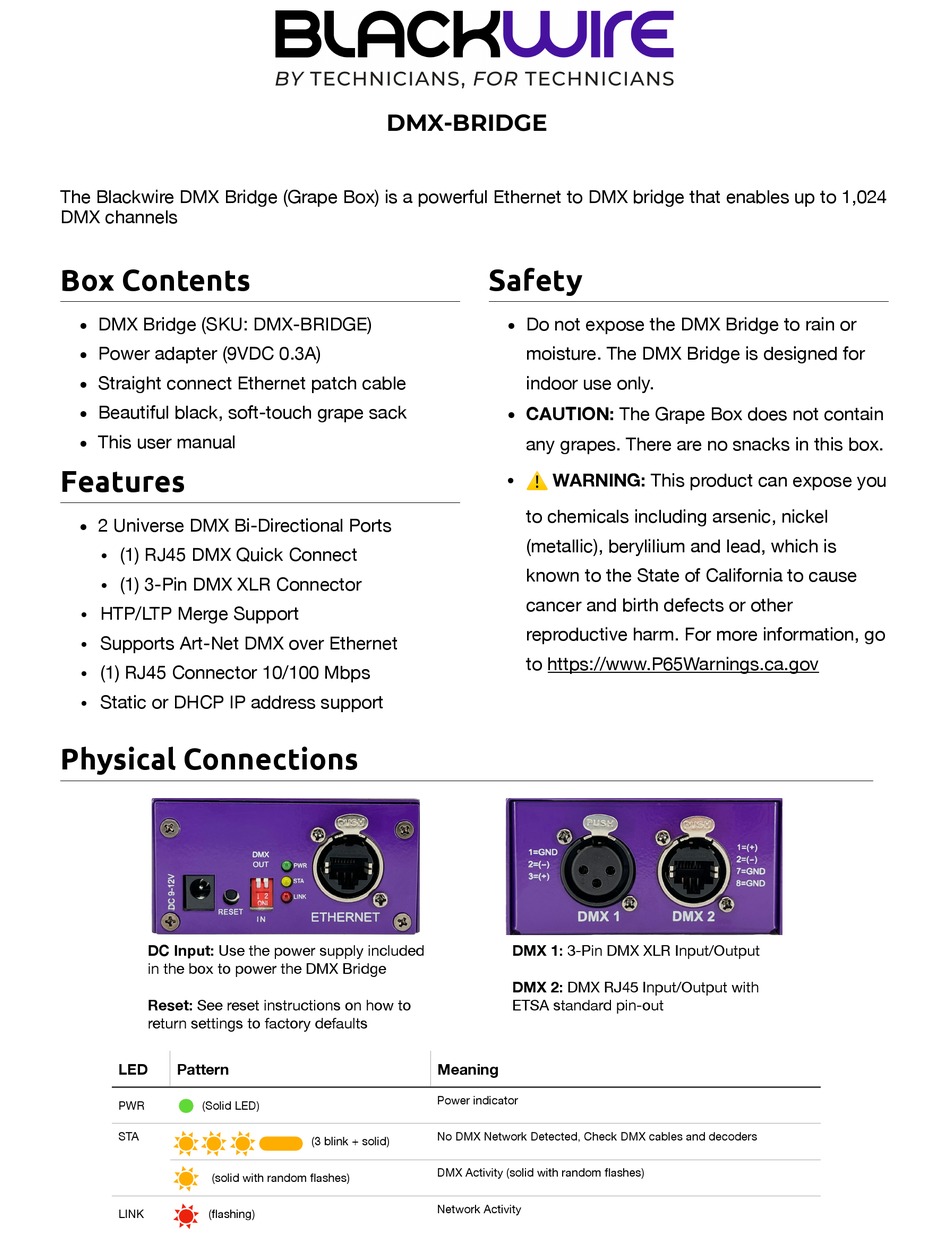

Blackwire DMX-Bridge Quick Setup

The Blackwire DMX Bridge (Grape Box) is a powerful Ethernet to DMX bridge that enables up to 1,024
DMX channels
Box Contents
•
DMX Bridge (SKU: DMX-BRIDGE)
•
Power adapter (9VDC 0.3A)
•
Straight connect Ethernet patch cable
•
Beautiful black, soft-touch grape sack
•
This user manual
Features
•
2 Universe DMX Bi-Directional Ports
•
(1) RJ45 DMX Quick Connect
•
(1) 3-Pin DMX XLR Connector
•
HTP/LTP Merge Support
•
Supports Art-Net DMX over Ethernet
•
(1) RJ45 Connector 10/100 Mbps
•
Static or DHCP IP address support
Physical Connections
DC Input: Use the power supply included
in the box to power the DMX Bridge
Reset: See reset instructions on how to
return settings to factory defaults
LED Pattern
PWR (Solid LED)
STA
(solid with random flashes)
LINK (flashing)
DMX-BRIDGE
Safety
Meaning
Power indicator
No DMX Network Detected, Check DMX cables and decoders
(3 blink + solid)
DMX Activity (solid with random flashes)
Network Activity
•
Do not expose the DMX Bridge to rain or
moisture. The DMX Bridge is designed for
indoor use only.
•
CAUTION: The Grape Box does not contain
any grapes. There are no snacks in this box.
•
WARNING: This product can expose you
⚠
to chemicals including arsenic, nickel
(metallic), berylilium and lead, which is
known to the State of California to cause
cancer and birth defects or other
reproductive harm. For more information, go
to https://www.P65Warnings.ca.gov
DMX 1: 3-Pin DMX XLR Input/Output
DMX 2: DMX RJ45 Input/Output with
ETSA standard pin-out
