Summary of Contents for E2 scientific tongueometer

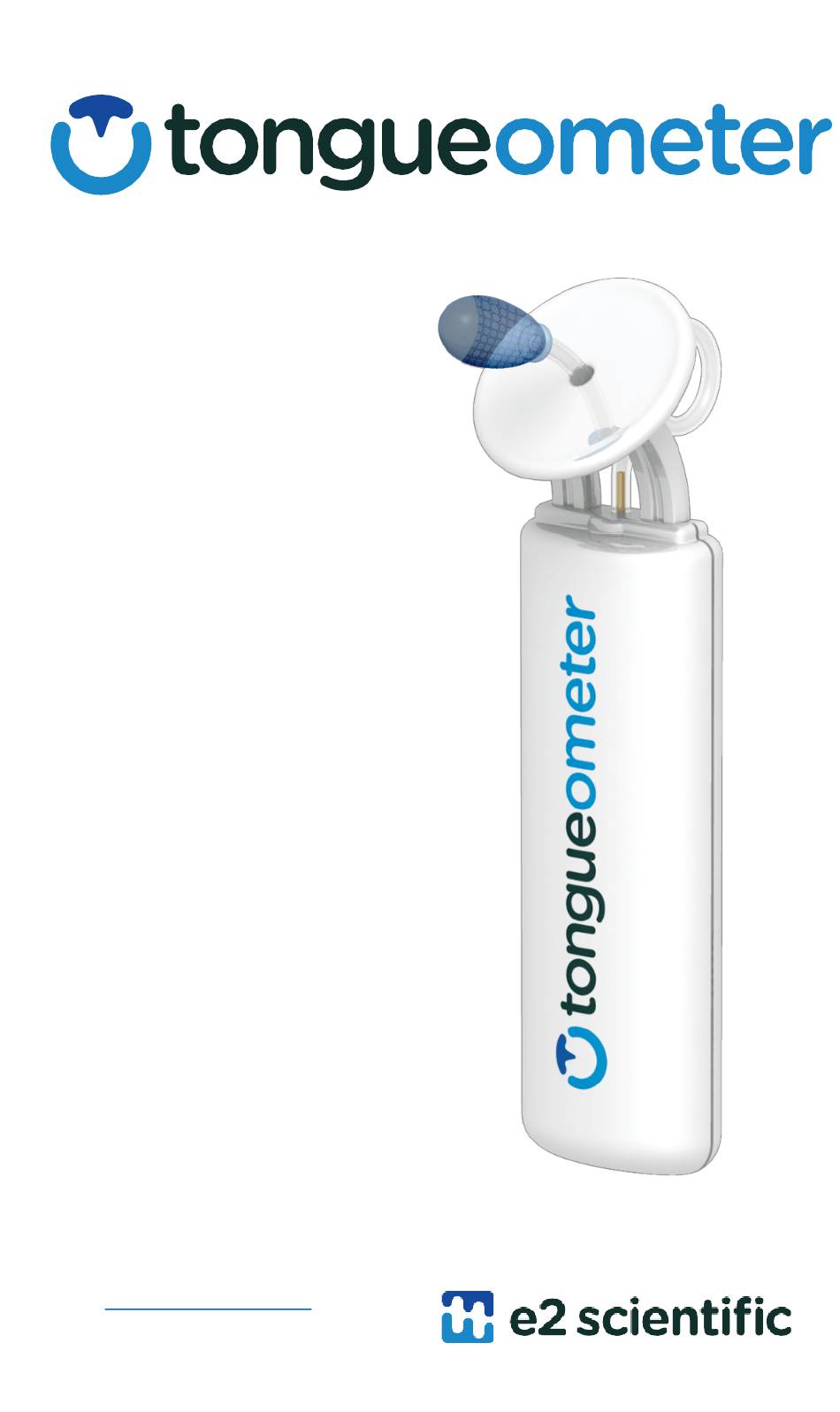

- Page 1 User Manual E2 Scientific Corp 340 S. Lemon Ave. #8049 Walnut, CA 91789 Phone: (608) 709-8804 Email: info@e2scientific.com Website: www.e2scientific.com...
- Page 2 Quick Start To set up and begin using your Tongueometer, follow these steps. 1. Remove contents from packaging. 2. Use scissors to cut off the sealed end of the tubing. Attach bulb to the device. 3. Download & open the “Tongueometer”...
-
Page 3: Table Of Contents
Device Setup................4 User Guide ................6 Troubleshooting ..............12 Support .................. 12 Warranty ................12 Appendix A: Determining Appropriate Exercise Settings..13 Appendix B: User Quick Reference ........14 © 2020 E2 Scientific Corp. Version 5.20.2020. All rights reserved. -
Page 4: Indications For Use
• Do not use with children under the age of 3. • Do not place the Tongueometer bulb in the mouth of someone who is at risk of having a seizure. • Do not use if you have past or present pain disorders involving the jaw or mandible (e.g., TMJ disorder, myofascial pain disorder). -
Page 5: Caring For The Tongueometer
To dispose of the Tongueometer device and its components, follow local and national disposal and recycling laws. • The device is not intended for use on an airplane. If the Tongueometer is taken on a plane, disconnect and reconnect bulb before use as the bulb may have depressurized and result in inaccurate results. - Page 6 Open the Google Play Store on your Android device or the App Store on your iOS device. Search for the Tongueometer app. The app is free to download. Once you locate the app, click “Install” or “Get.” You can download the application on as many devices as you’d like.
- Page 7 To test if the app is ready for use, you can squeeze the Tongueometer device bulb to move the needle in the app gauge. If it does not move, see Troubleshooting below.
-
Page 8: User Guide

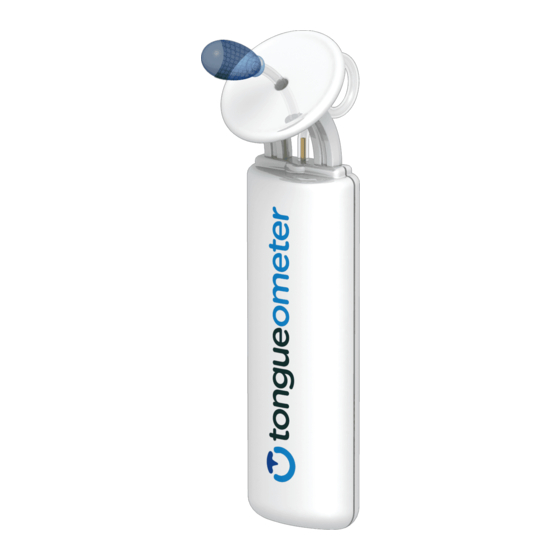

The circular unit at the top of the Tongueometer device is designed to be a lip guard to prevent the bulb from slipping into the back of the mouth. Users can adjust the length of the tubing for optimal placement. Adjust the length of the tubing so that the mouth guard is flush with your lips. - Page 9 Target ranges should be determined by your SLP. To perform the exercise: Open the Repetitive Strength module within the Tongueometer application. Adjust the target range by sliding the blue dots on the “Min-Max Bar” to set the desired minimum and maximum pressure range.
- Page 10 Isometric Endurance. This module records the number of times that a user maintains desired tongue pressure for a set period of time. To perform the exercise: Open the Isometric Endurance module within the Tongueometer application. Adjust the target range by sliding the blue dots on the “Min-Max Bar” to set the desired minimum and maximum pressure range.
- Page 11 The Data Report will store the maximum reading even if a user presses RESET. Warning: never bite down on the tube or the bulb as this may result in a choking hazard or cause the device to malfunction. © 2020 E2 Scientific Corp. Version 5.20.2020. All rights reserved.
- Page 12 Changing the target range will not reset the stopwatch. The reset button resets the stopwatch to zero. The Data Report will store the maximum length of time even if a user presses RESET. © 2020 E2 Scientific Corp. Version 5.20.2020. All rights reserved.
- Page 13 Reports: The Tongueometer application has a built-in reporting feature that captures user data. Users can track progress over the course of the day, week, month, and year. To review data, click on the data icon in the top right corner (see below). Users can reset data at any time by scrolling to the bottom of the Reports page and click “Reset.”...
-
Page 14: Troubleshooting
Changes or modifications not approved by E2 Scientific Corp could void the user’s authority to operate the Tongueometer. Note: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules. -
Page 15: Appendix A: Determining Appropriate Exercise Settings
Maximum Strength Setting: 11 kPa* (14 kPa x 80% = 11) *Please note that the Tongueometer settings require at least a 5 kPa range between the minimum and maximum settings. In this case, setting the maximum at 13 kPa would be advised. - Page 16 Determined by Maximum Strength (kPa) x Effort Level (%) Effort Level (%) Strength (kPa) *Please note that the Tongueometer settings require at least a 5 kPa range between the minimum and maximum settings. © 2020 E2 Scientific Corp. Version 5.20.2020. All rights reserved.
