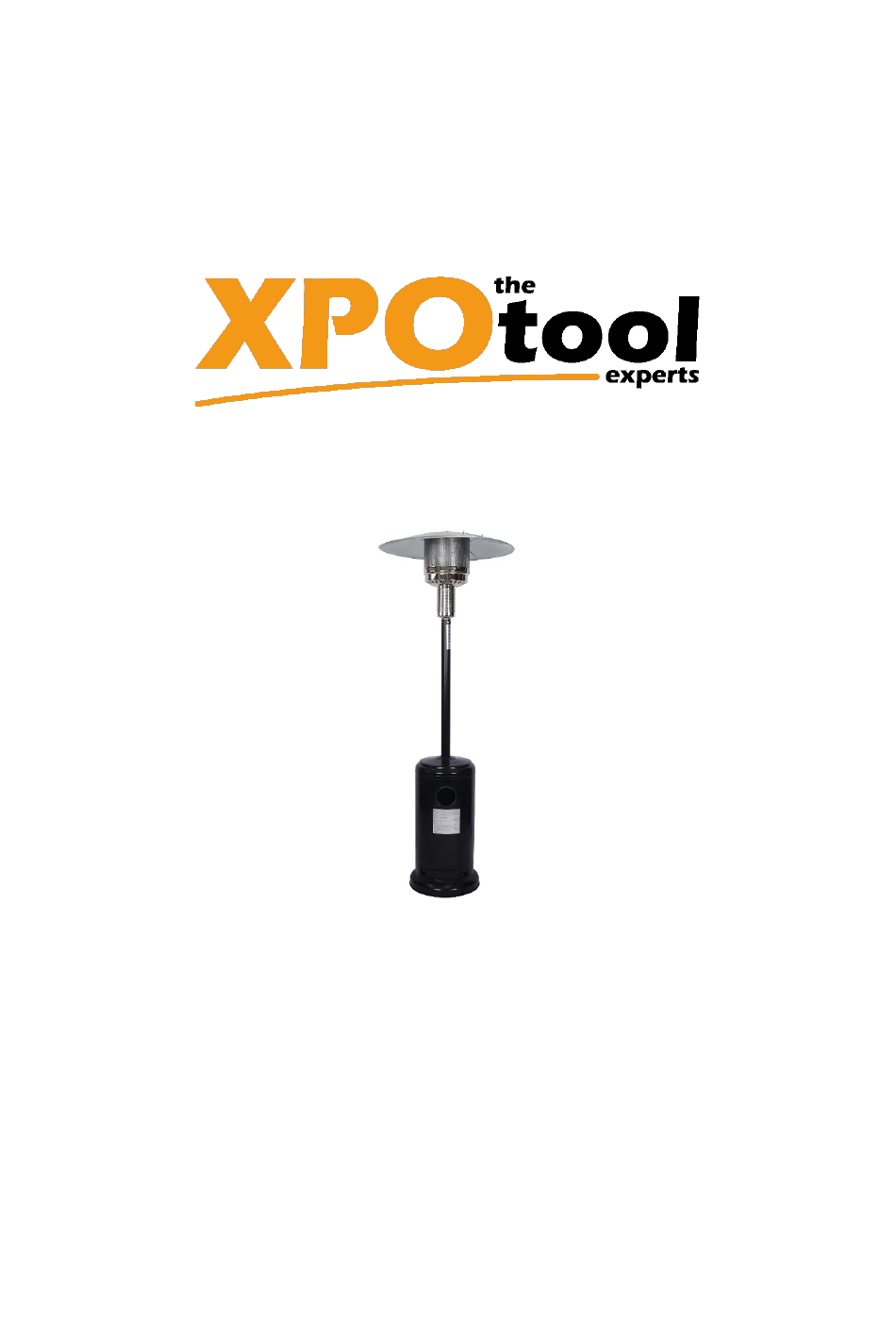

User's manual
Patio Heater 13,000 W
63021
Illustration similar, may vary depending on model
Please read and follow the operating instructions and safety information prior to initial operation.
Technical changes reserved!
Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further
developments.
Advertisement
Summary of Contents for XPOtool 63021
- Page 1 User’s manual Patio Heater 13,000 W 63021 Illustration similar, may vary depending on model Please read and follow the operating instructions and safety information prior to initial operation. Technical changes reserved! Illustrations, functional steps, and technical data may deviate insignificantly due to continuous further...
- Page 2 To allow for a trouble-free complaint or return, it is important to contact our customer service team before returning your goods. Retourenabteilung WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler Germany E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 63021 Page 2 The Tool Experts 05 2022-1...
- Page 3 A 30 mbar pressure reducing valve is used for butane/propane of category I3BP(30). ◦ A 30 mbar pressure reducing valve is used for butane of category I3+(28–30/37). ◦ A 37 mbar pressure reducing valve is used for propane of category I3+(28–30/37). ◦ https://www.XPOtool.com Item 63021 Page 3 The Tool Experts 05 2022-1...
- Page 4 Personal safety • Do not use the heater indoors; otherwise, there is a risk of property damage or injury. https://www.XPOtool.com Item 63021 Page 4 The Tool Experts 05 2022-1...
- Page 5 If a leak is found, the gas supply must be switched off again. Tighten any leaky connections, turn on the gas supply and check the tightness again. • Never smoke during a leak test. https://www.XPOtool.com Item 63021 Page 5 The Tool Experts 05 2022-1...
- Page 6 Wipe powder-coated surfaces with a soft, damp cloth. Do not clean the heater with flammable or corrosive cleaning agents. • Remove debris from the burner to keep it clean and safe to use. https://www.XPOtool.com Item 63021 Page 6 The Tool Experts 05 2022-1...
- Page 7 Min. power (W) 5,000 Consumption Gas pressure Outlet pressure of regula- Category Gas type (mbar) tor (mbar) Butane 28–30 I3+ (28–30/37) Propane I3B/P (30) Butane, propane, I3B/P (50) their mixtures I3B/P (37) https://www.XPOtool.com Item 63021 Page 7 The Tool Experts 05 2022-1...
- Page 8 The information on the injector, e.g., “1.90,” indicates the injector size, e.g., 1.90 mm. • The gas hose and pressure reducing valve must comply with local regulations. • The device requires a 1.4 m long approved hose. https://www.XPOtool.com Item 63021 Page 8 The Tool Experts 05 2022-1...
- Page 9 Spray bottle of soap solution for leak test Figures № Name Qty. Reflector panel Reflector plate Reflector stud Head assembly Gas hose Gas cylinder housing Post Post bracket Stand Wheel kit https://www.XPOtool.com Item 63021 Page 9 The Tool Experts 05 2022-1...
- Page 10 2. Use 6 large M6 bolts (2) and counter-nuts (3) to 2. Use 3 M8×16 bolts (3) for connecting. connect the post to the post brackets. Tighten the bolts and nuts. https://www.XPOtool.com Item 63021 Page 10 The Tool Experts 05 2022-1...
- Page 11 3. Connect the pressure reducing valve (2) to the gas container (1) and tighten with an adjustable wrench. 4. Place the liquid gas container on the stand. 5. Fasten the gas cylinder with the strap. https://www.XPOtool.com Item 63021 Page 11 The Tool Experts 05 2022-1...
- Page 12 Properly place pilot light unit. Not in correct location Position properly and retry. If the device shows any errors during assembly or use, do not try to modify it, but contact the seller. https://www.XPOtool.com Item 63021 Page 12 The Tool Experts 05 2022-1...
- Page 13 WilTec Wildanger Technik GmbH Königsbenden 12 / 28 52249 Eschweiler Germany Important Note: Reproduction and any commercial use (of parts) of this operating manual, requires a written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 63021 Page 13 The Tool Experts 05 2022-1...
