STM SIMPLY 55 Assembly Instruction

TYPE - SIMPLY 55-EASY 55-LIFT 55-SIMPLY 40

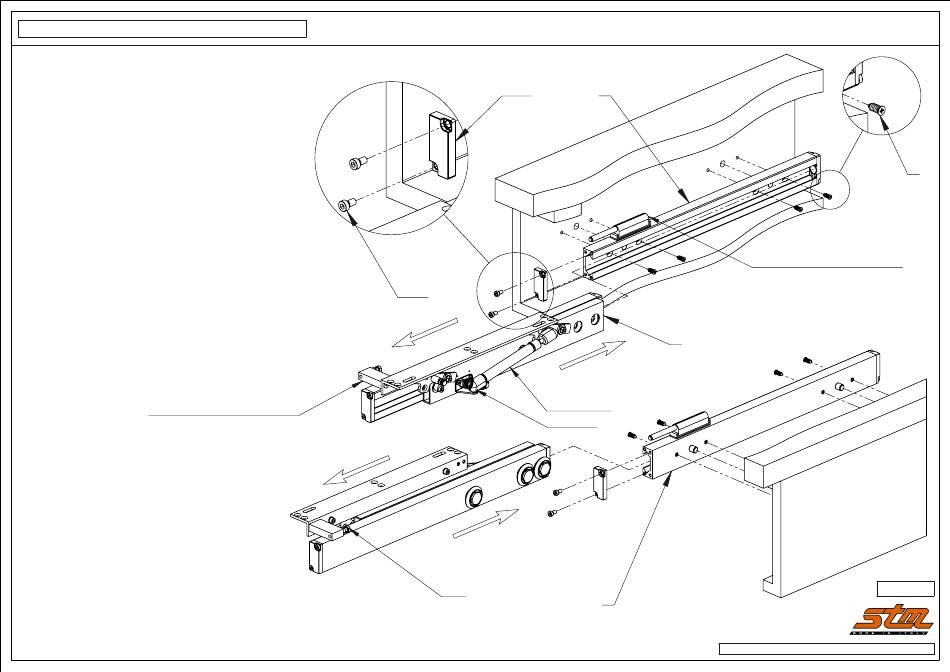

Assembly Sequence
1) Unscrew the 2 screws from the cap
of the left-side fixed element and
remove the remaining profiles
2) Posizion the left-side fixed profile
inserting the pins in their respective
holes
3) Fasten the left-side profile using 4
EURO screws 6,2xO (see pag.3)
4) Reinsert the other elements in the
fixed one
5) Position the cap on the profiles
and fasten it using the two screws
6) Repeat operation from 1 to 5 on
the right side
Optional PUSH OPEN
ITEMS INCLUDED IN THE
PACKAGE
1 Slides left-side pack
1 Slides right-side pack
1 Cross bar for rods connection
2 TSEI M5x14 screws
4 M6 special washer
8 Euroscrews 6,2xO (see pag.3)
countersunk head
4 Euroscrews Cil. Head 6,3x18
Assembly Instruction
1-5
1-5
EASY-LIFT
SIMPLY
LIFT
2
Optional PUSH OPEN
4
6
180-01-01-02 H9 STANDARD ISTRUZIONI DI MONTAGGIO ENG
STM srl, Sede di Pesaro tel. +39 0721 403930 Sede di Crevalcore (BO) Tel +39 051 983344 Fax +39 051 982844 www.stmitaly.it info@stmitaly.it
PAG.1
3
04/12/2018
