Double grillkota 9m2
Montageanleitung * Assembly instruction
Factory covered roof * Fabrik abgedeckt Dach
Wichtig * Important

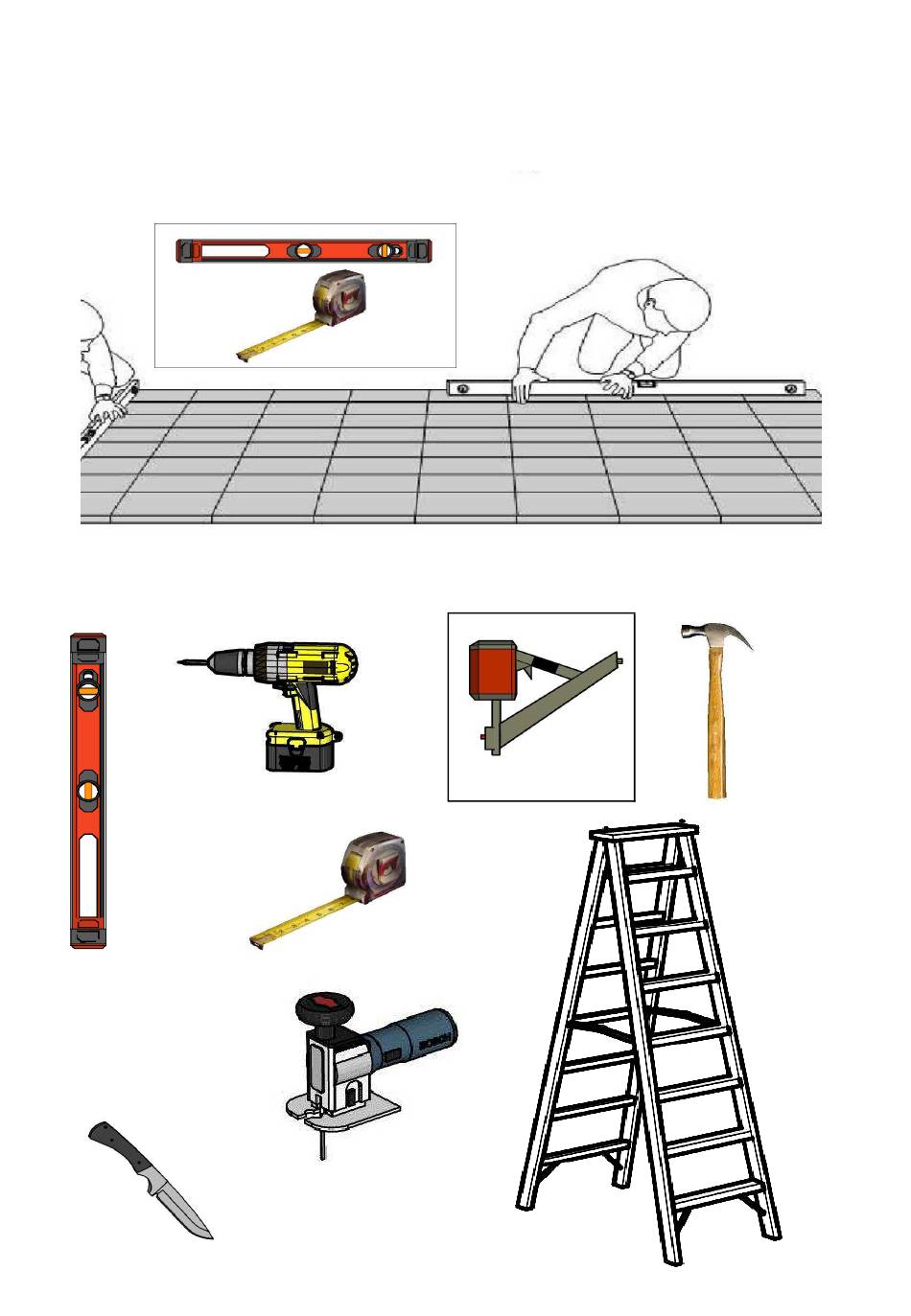

Werkzeuge * Tools
nagler / nailer

Advertisement

loading
Need help?

Need help?

Do you have a question about the Double grillkota and is the answer not in the manual?

Questions and answers

Related Manuals for Finn Art Blockhaus Double grillkota

Summary of Contents for Finn Art Blockhaus Double grillkota

  • Page 1 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction Factory covered roof * Fabrik abgedeckt Dach Wichtig * Important Werkzeuge * Tools nagler / nailer...
  • Page 2 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 1/23 Größe der Basis * Bottom dimensions Wenn Sie den Grill benutzen * If You use the grill...
  • Page 3 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 2/23 … 4,5 x 80 40 x 40 x 40 3,5 x 40 … 4,5 x 80 40 x 40 x 40 3,5 x 40...
  • Page 4 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 3/23 4,5 x 80 4,5 x 80 4,5 x 80...
  • Page 5 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 4/23 4,5 x 80 4,5 x 80...
  • Page 6 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 5/23 4,5 x 80 walls 4,5 x 80 4,5 x 80 walls 4,5 x 80...
  • Page 7 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 6/23 4 x 70 3,5 x 50...
  • Page 8 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 7/23 3,5 x 50 step 1 step 2 4,5 x 80...
  • Page 9 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 8/23 4,5 x 80 Wenn Sie das Produkt mit If you have bought the dem Boden gekauft haben: product with the floor: Installieren Sie den Kota`s Boden...
  • Page 10 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 9/23 step 1 step 2 Zwischen * Between 4 x 70 Zu oberen Gürtel 7, 8, 9 * To the upper belt 7, 8, 9 4,5 x 80...
  • Page 11 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 10/23 4,5 x 80 repariere dieses Element noch nicht! do`nt fix this element yet!
  • Page 12 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 11/23 between 4,5 x 80 4,5 x 80 42a 42b 4,5 x 80...
  • Page 13 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 12/23 4,5 x 80...
  • Page 14 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 13/23 4 x 50 4 x 50...
  • Page 15 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 14/23 step 1 step 2 4 x 50 3 x 40...
  • Page 16 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 15/23 4 x 50 3 x 40...
  • Page 17 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 16/23 step 1 step 2 step 3 3 x 40...
  • Page 18 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 17/23 4 x 70...
  • Page 19 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 18/23 … 4 x 70 4,5 x 80 roof elements...
  • Page 20 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 19/23 4,5 x 80 4 x 70...
  • Page 21 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 20/23 3 x 40 3 x 40...
  • Page 22 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 21/23 3 x 40 3 x 40 3 x 40...
  • Page 23 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 22/23 3 x 40 4,5 x 45...
  • Page 24 All manuals and user guides at all-guides.com Double grillkota 9m2 Montageanleitung * Assembly instruction 23/23 Kota`s Grill- und Rauchabzugsanlagen werden als separates Dokument begleitet Kota`s grill and smoke collector installation guides are accompanied as a separate document...
