Summary of Contents for Arcane SEL MAX

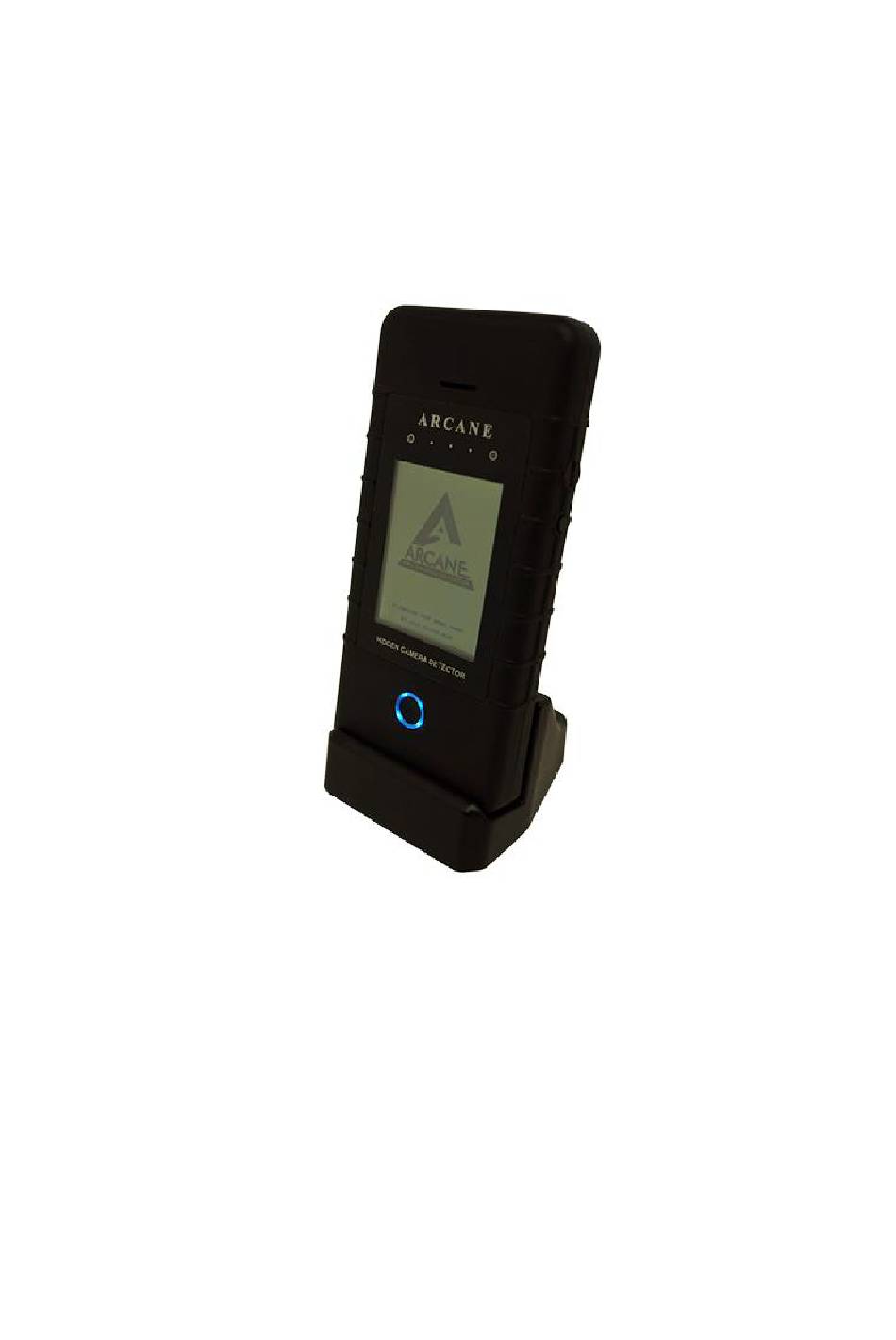

- Page 1 Digital Hidden Camera Detector ARCANE SEL MAX OPERATION MANUAL 2021 www.ts-market.com...
- Page 2 ARCANE SEL MAX has a built-in magnetic antenna, and also has the ability to communicate via Bluetooth with a smartphone to control and transmit information to it, which allows you to instantly detect the presence of nearby (from 1 to 2 meters) hidden video cameras and search for them unnoticed by others.
- Page 3 Technical specifications When operating with the device it is not allowed of any mechanical influences and work at low negative temperature of environment. The number of" images" of signals in the device memory Detected digital cameras ETH; USB; FLH Detection time (average) 2 sec Analysis time (average) 5 sec...
-
Page 4: External Antenna Connector
USB Type-C Working with ARCANE device To turn on the device, press the power button and hold it until the ARCANE logo will appear on the screen (information about the firmware version is displayed at the bottom of the screen) - Page 5 The main screen consists of two pages in the form of tables with cells The battery level is displayed in the upper-right corner of the screen, the current position of the device's operating mode is in the center, and the screen page designation is on the left. The active buttons are located at the bottom of the screen On first page displays information about the video cameras found by the device and the detected signals.
- Page 6 Adding Cell to “White List” By creating a "white list" of non-dangerous signals, you increase the speed of "ARCANE" in the search mode for newly appearing video camera signals. After the power is turned off, the "white list" is automatically erased and when a new search is made, such signals will again become "red".
- Page 7 Detection Mode of Digital Video Recorders Recording on an SD Memory Cards ARCANE detects miniature digital video recorders (DVR) which are using flash memory (SD and micro SD memory cards). To enable or disable the mode, briefly press the the cell "FLSH", the “On” or “Off”...
- Page 8 If the device "freeze" due to a program malfunction for any reason, it is necessary to perform a hardware reset by pressing a pin through the hole in the housing on the R button - "Reset", "ARCANE" will reboot and require screen calibration.
- Page 9 The composition of spare parts and the terms of their delivery during the service life of the device must be specified in the contract (agreement). Warranty obligations for ARCANE apply only when the consumer submits this user manual with the manufacturer's mark of sale, certified by the official round seal of the manufacturer.
