Summary of Contents for ritm Contact RC-1L ver. 2

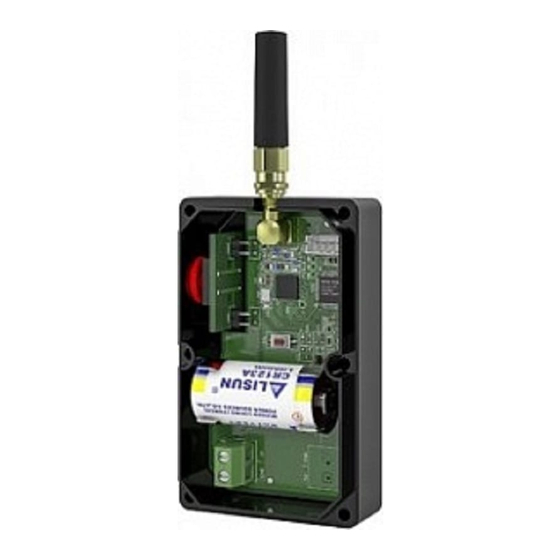

- Page 1 Radio channel panic button Contact RC-1L ver. 2 868 MHz Data sheet Device ID...
- Page 2 1. Overview The radio channel panic button Contact RC-1L ver. 2 (hereinafter referred to as panic button) is designed for generating an alarm event on button pressing and transmitting it to the radio channel receiver RDK-L 868 MHz. Contact RC-1L has terminals for connecting a remote wired panic button.
- Page 3 4. Technical specifications Parameter Value Frequency range, MHz 868.7-869.2 Maximum receiver emitting power, mW Alarm message delivery acknowledgement Restrained urban conditions Medium urban conditions Maximum range of stable communication, km, up to Open territory Line-of-sight range Period of singe battery operation, years Connected loops, pc.
- Page 4 5. Unit designation Unit Designation Panic button. Button for changing operating modes. Connector for 868 MHz antenna installation. Special cable connector for communication with PC USB1 or USB2. Used for updating version of the button software. Connectors for battery installing: •...
- Page 5 RDK-L configuration software. Detailed information about interoperation with the radio channel receiver RDK-L see in the Receiver operating manual available on the official website www.ritm.ru/en. Maintenance On a regular basis but at least twice a year check safety of contacts and if necessary dress bonding pads.
- Page 6 12. Manufacturer warranty The manufacturer warrants conformity of the panic button to the specification requirements provided the transportation, storage, mounting and operation conditions are observed by the consumer. Warranty operating life — 12 months from the date of commissioning, but no more than 18 months from the date of manufacture.
- Page 7 Notes...
- Page 8 Notes Data sheet date 22.04.2019...
