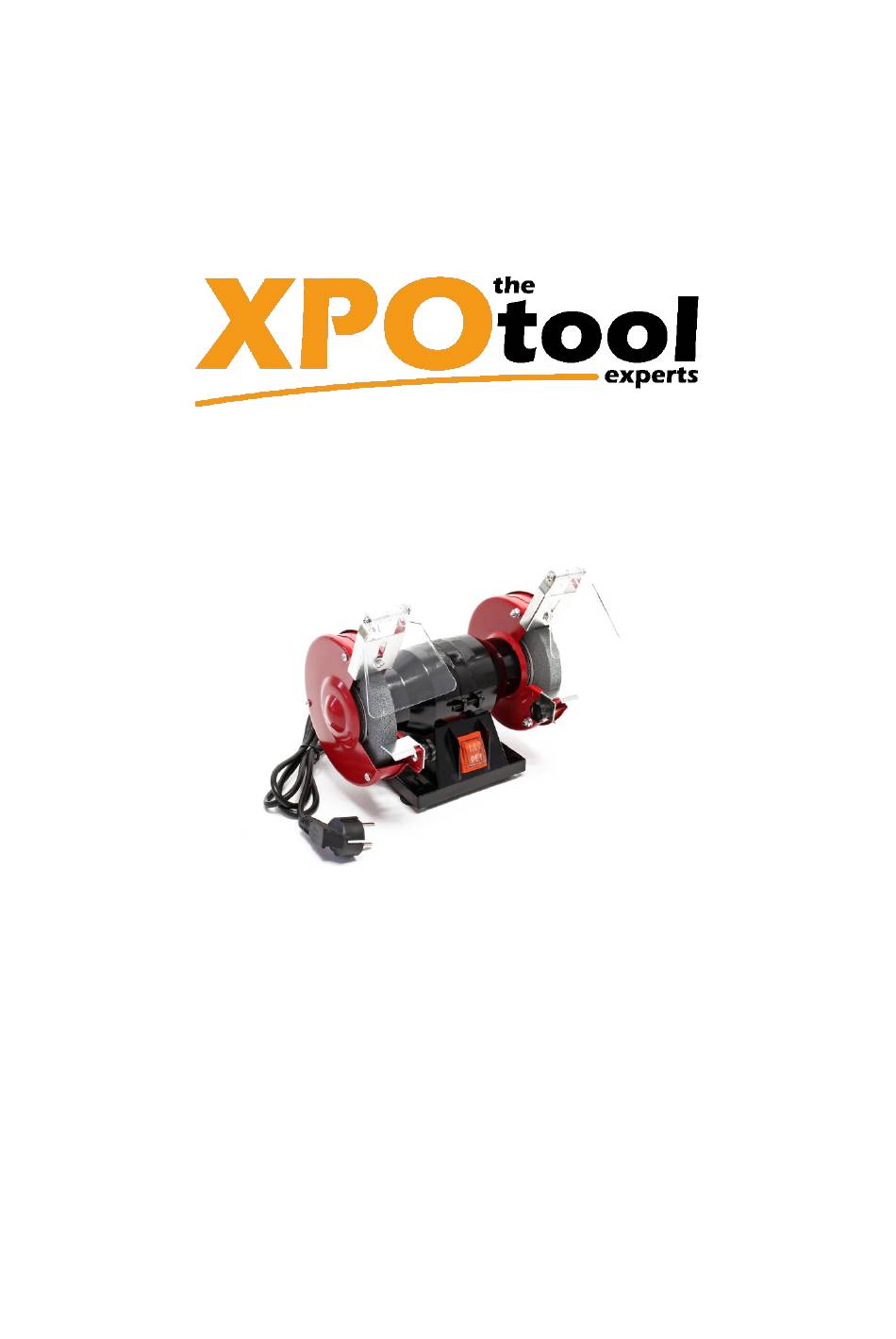

Operation Manual
Bench Grinder
62541
Illustration similar, may vary depending on model
Read and follow the operating instructions and safety information before using for the first time.
Technical changes reserved!
Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
Updating the documentation
If you have suggestions for improvement or have found any irregularities, please contact us.
Advertisement
Related Manuals for XPOtool 62541
Summary of Contents for XPOtool 62541
- Page 1 Operation Manual Bench Grinder 62541 Illustration similar, may vary depending on model Read and follow the operating instructions and safety information before using for the first time. Technical changes reserved! Due to further developments, illustrations, functioning steps, and technical data can differ insignificantly.
- Page 2 To allow for a smooth execution of your complaint or return, it is important to contact our customer service team before returning the goods. Returns Department WilTec Wildanger Technik GmbH Königsbenden 28 52249 Eschweiler E-mail: service@wiltec.info Tel: +49 2403 55592–0 Fax: +49 2403 55592–15 https://www.XPOtool.com Item 62541 Page 2 The Tool Experts 05 2022-1...
- Page 3 If you work outdoors, non-slip footwear is recommended. Secure long hair with the help of a hair elastic or a hair net. • Put on protective equipment. Wear protective glasses; wear a respirator when performing work that generates dust. https://www.XPOtool.com Item 62541 Page 3 The Tool Experts 05 2022-1...
- Page 4 Make sure that the grinding wheel can move freely before switching on the device. • When switching on the switch, stand next to the machine, not in front of it. Then stand or sit in front of the machine to start working. https://www.XPOtool.com Item 62541 Page 4 The Tool Experts 05 2022-1...
- Page 5 Idle rotation speed ( ⁄ 2950 Wheel size (㎜) ⌀150×16 Hole diameter (㎜) 12.7 Sound pressure level (㏈ (A)) EAR PROTECTION Sound power level (㏈ (A)) Vibrations (㎧) under 2.5 Weight (㎏) https://www.XPOtool.com Item 62541 Page 5 The Tool Experts 05 2022-1...
- Page 6 7. If you want to transport the electrical device, hold the wheel protection on both sides to lift it off. Warning! • Never use the grinder if it is not securely mounted. Assemble the grinder before use. https://www.XPOtool.com Item 62541 Page 6 The Tool Experts 05 2022-1...
- Page 7 3. Place a washer (10c) on the other end of the screw. 4. Secure the screw (10a) with a lock nut (10b). 5. Repeat steps 1 to 4 on the other side for the second workpiece holder. Figure 2 https://www.XPOtool.com Item 62541 Page 7 The Tool Experts 05 2022-1...
- Page 8 3. Store grinding wheels in a dry place and at a constant temperature. 4. Make sure that the grinding wheel is of the right size (see section “Technical specifications”). https://www.XPOtool.com Item 62541 Page 8 The Tool Experts 05 2022-1...
- Page 9 To ensure the machine working properly, the grinding wheel should be replaced when it has reached a diameter of 91 mm or less. https://www.XPOtool.com Item 62541 Page 9 The Tool Experts 05 2022-1...
- Page 10 Only use identical spare parts when repairing the device. • Clean the housing with a damp cloth and do not use any cleaning agents. Then let it dry com- pletely. https://www.XPOtool.com Item 62541 Page 10 The Tool Experts 05 2022-1...
- Page 11 Older grinding wheels should be used before newer grinding wheels. If there is any doubt or if a disc has been in storage for more than three years, the manufacturer should be consulted regarding its suitability. https://www.XPOtool.com Item 62541 Page 11 The Tool Experts 05 2022-1...
- Page 12 D-52249 Eschweiler Important notice: The reprint or reproduction, even of excerpts, and any commercial use, even in part, of this instruction manual require the written permission of WilTec Wildanger Technik GmbH. https://www.XPOtool.com Item 62541 Page 12 The Tool Experts 05 2022-1...
