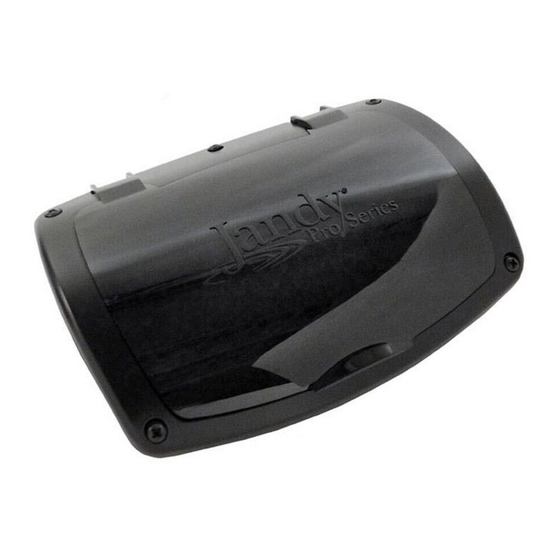

- Page 1 Gas-Fired Pool & Spa Heater ™ Spare Parts Installation Instructions User Interface These instructions are to be used with the following Jandy Pro Series spare parts kits: R0591900 User Interface Control Kit...
- Page 2 Page 2 WARNING FOR YOUR SAFETY: This product must be installed and serviced by a contractor who is licensed and qualified in pool equipment by the jurisdiction in which the product will be installed where such state or local requirements exists. In the event no such state or local requirement exists, the installer or maintainer must be a professional with sufficient experience in pool equipment installation and maintenance so that all of the instructions in this manual can be followed exactly.
- Page 3 Page 3 Disassembly: Verify you have all necessary parts (see Table 1 below). KIT PART NO. COMPONENT DESCRIPTION QUANTITY R0591900 User Interface Assembly, includes Gasket Screw, #6 Table 1. Replacement Kit parts Turn off the electrical power to the heater. Turn off the main gas supply to the heater at the meter or the manual Alternate 120V Wiring* TRANSFORMER...
- Page 4 Page 4 Assembly: Connect wires from the terminal block to the new user interface (black, orange, blue, and red) and secure by tightening the terminal screws (see Figure 1). Place the user interface securely in the heater housing. Replace five (5) screws. Restore power to the heater. Zodiac Pool Systems, Inc.
