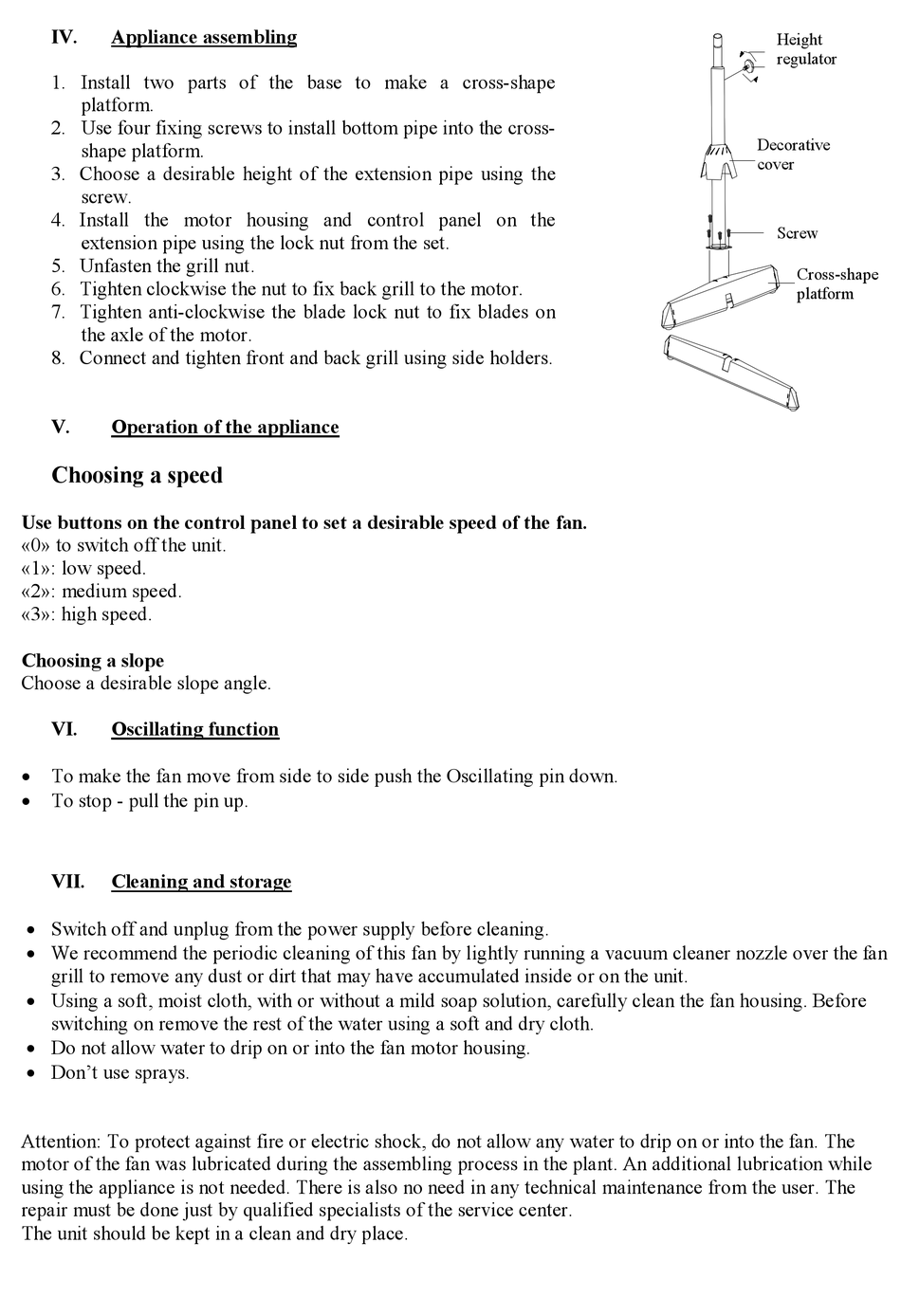

Polaris PSF 40 D Manual Instruction page 10

IV. Appliance assembling
1. Install two parts of the base to make a cross-shape
platform.
2. Use four fixing screws to install bottom pipe into the cross-
shape platform.
3. Choose a desirable height of the extension pipe using the
screw.
4. Install the motor housing and control panel on the
extension pipe using the lock nut from the set.
5. Unfasten the grill nut.
6. Tighten clockwise the nut to fix back grill to the motor.
7. Tighten anti-clockwise the blade lock nut to fix blades on
the axle of the motor.
8. Connect and tighten front and back grill using side holders.
V. Operation of the appliance
Choosing a speed
Use buttons on the control panel to set a desirable speed of the fan.
«0» to switch off the unit.
«1»: low speed.
«2»: medium speed.
«3»: high speed.
Choosing a slope
Choose a desirable slope angle.
VI. Oscillating function
 To make the fan move from side to side push the Oscillating pin down.
 To stop - pull the pin up.
VII. Cleaning and storage
 Switch off and unplug from the power supply before cleaning.
 We recommend the periodic cleaning of this fan by lightly running a vacuum cleaner nozzle over the fan
grill to remove any dust or dirt that may have accumulated inside or on the unit.
 Using a soft, moist cloth, with or without a mild soap solution, carefully clean the fan housing. Before
switching on remove the rest of the water using a soft and dry cloth.
 Do not allow water to drip on or into the fan motor housing.
 Don't use sprays.
Attention: To protect against fire or electric shock, do not allow any water to drip on or into the fan. The
motor of the fan was lubricated during the assembling process in the plant. An additional lubrication while
using the appliance is not needed. There is also no need in any technical maintenance from the user. The
repair must be done just by qualified specialists of the service center.
The unit should be kept in a clean and dry place.
Height
Fasten Height
regulator
adjustment ring
Decorative
Stand cover
cover
Four screw
Screw
Cross-shape
Stand
platform
