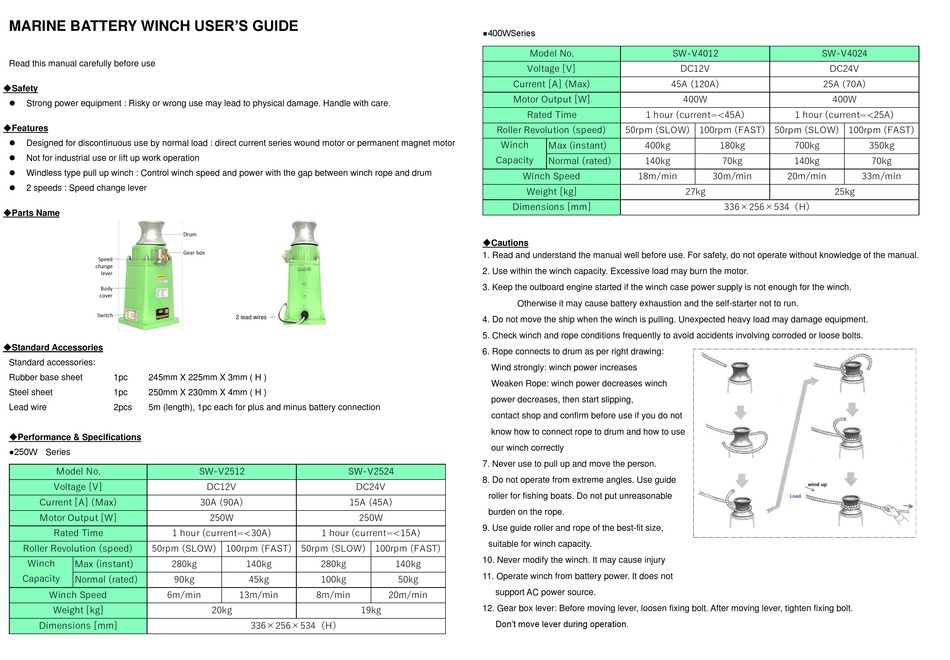

MARINE BATTERY WINCH USER'S GUIDE
Read this manual carefully before use
◆Safety
⚫
Strong power equipment : Risky or wrong use may lead to physical damage. Handle with care.
◆Features
⚫
Designed for discontinuous use by normal load : direct current series wound motor or permanent magnet motor
⚫
Not for industrial use or lift up work operation
⚫
Windless type pull up winch : Control winch speed and power with the gap between winch rope and drum
⚫
2 speeds : Speed change lever
◆Parts Name
◆Standard Accessories
Standard accessories:
Rubber base sheet 1pc 245mm X 225mm X 3mm ( H )
Steel sheet 1pc 250mm X 230mm X 4mm ( H )
Lead wire 2pcs 5m (length), 1pc each for plus and minus battery connection
◆Performance & Specifications
●250W Series
Model No.
Voltage [V]
Current [A] (Max)
Motor Output [W]
Rated Time 1 hour (current=<30A)
Roller Revolution (speed) 50rpm (SLOW) 100rpm (FAST) 50rpm (SLOW)
Winch Max (instant) 280kg
Capacity
Normal (rated) 90kg
Winch Speed 6m/min
Weight [kg]
Dimensions [mm]
2 lead wires ―
SW-V2512 SW-V2524
DC12V DC24V
30A (90A) 15A (45A)
250W 250W
1 hour (current=<15A)
100rpm (FAST)
140kg 280kg
45kg 100kg
13m/min 8m/min
20kg 19kg
336×256×534（H）
●400WSeries
Model No.
Voltage [V]
Current [A] (Max)
Motor Output [W]
Rated Time
Roller Revolution (speed)
Winch
Max (instant)
Capacity
Normal (rated)
Winch Speed
Weight [kg]
Dimensions [mm]
◆Cautions
1. Read and understand the manual well before use. For safety, do not operate without knowledge of the manual.
2. Use within the winch capacity. Excessive load may burn the motor.
3. Keep the outboard engine started if the winch case power supply is not enough for the winch.
Otherwise it may cause battery exhaustion and the self-starter not to run.
4. Do not move the ship when the winch is pulling. Unexpected heavy load may damage equipment.
5. Check winch and rope conditions frequently to avoid accidents involving corroded or loose bolts.
6. Rope connects to drum as per right drawing:
Wind strongly: winch power increases
Weaken Rope: winch power decreases winch
power decreases, then start slipping,
contact shop and confirm before use if you do not
know how to connect rope to drum and how to use
our winch correctly
7. Never use to pull up and move the person.
8. Do not operate from extreme angles. Use guide
roller for fishing boats. Do not put unreasonable
burden on the rope.
9. Use guide roller and rope of the best-fit size,
suitable for winch capacity.
10. Never modify the winch. It may cause injury
140kg
11. Operate winch from battery power. It does not
50kg
support AC power source.
20m/min
12. Gear box lever: Before moving lever, loosen fixing bolt. After moving lever, tighten fixing bolt.
Don't move lever during operation.
SW-V4012
DC12V
45A (120A)
400W
1 hour (current=<45A) 1 hour (current=<25A)
50rpm (SLOW) 100rpm (FAST) 50rpm (SLOW) 100rpm (FAST)
400kg 180kg 700kg
140kg 70kg 140kg
18m/min 30m/min 20m/min
27kg
336×256×534（H）
SW-V4024
DC24V
25A (70A)
400W
350kg
70kg
33m/min
25kg
