Original Operating Instructions

Terminal HT100

for CFC 100

Type:

Document No.:

BFI Automation Mindermann GmbH

BFI Automatio

Eggerscheidter Str. 57

D-40883 Ratingen, Germany

Tel. +49 (0) 2102 9682-0

Fax +49 (0) 2102 9682-42

http://www.bfi-automation.de

HT 100

BA HT100 EN Rev2

Table of Contents

Need help?

Do you have a question about the HT100 and is the answer not in the manual?

Questions and answers

Summary of Contents for BFI Automation HT100

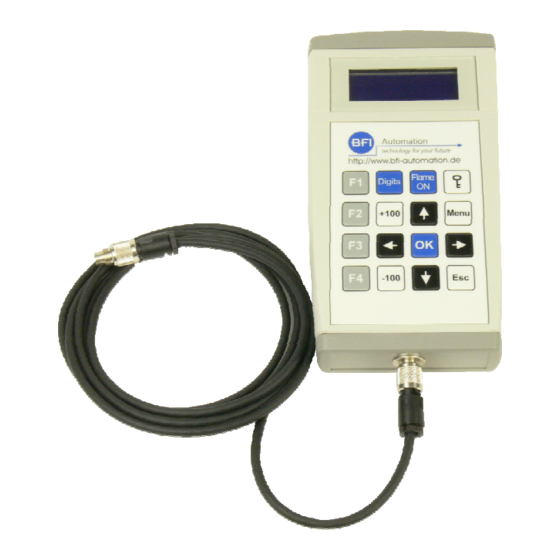

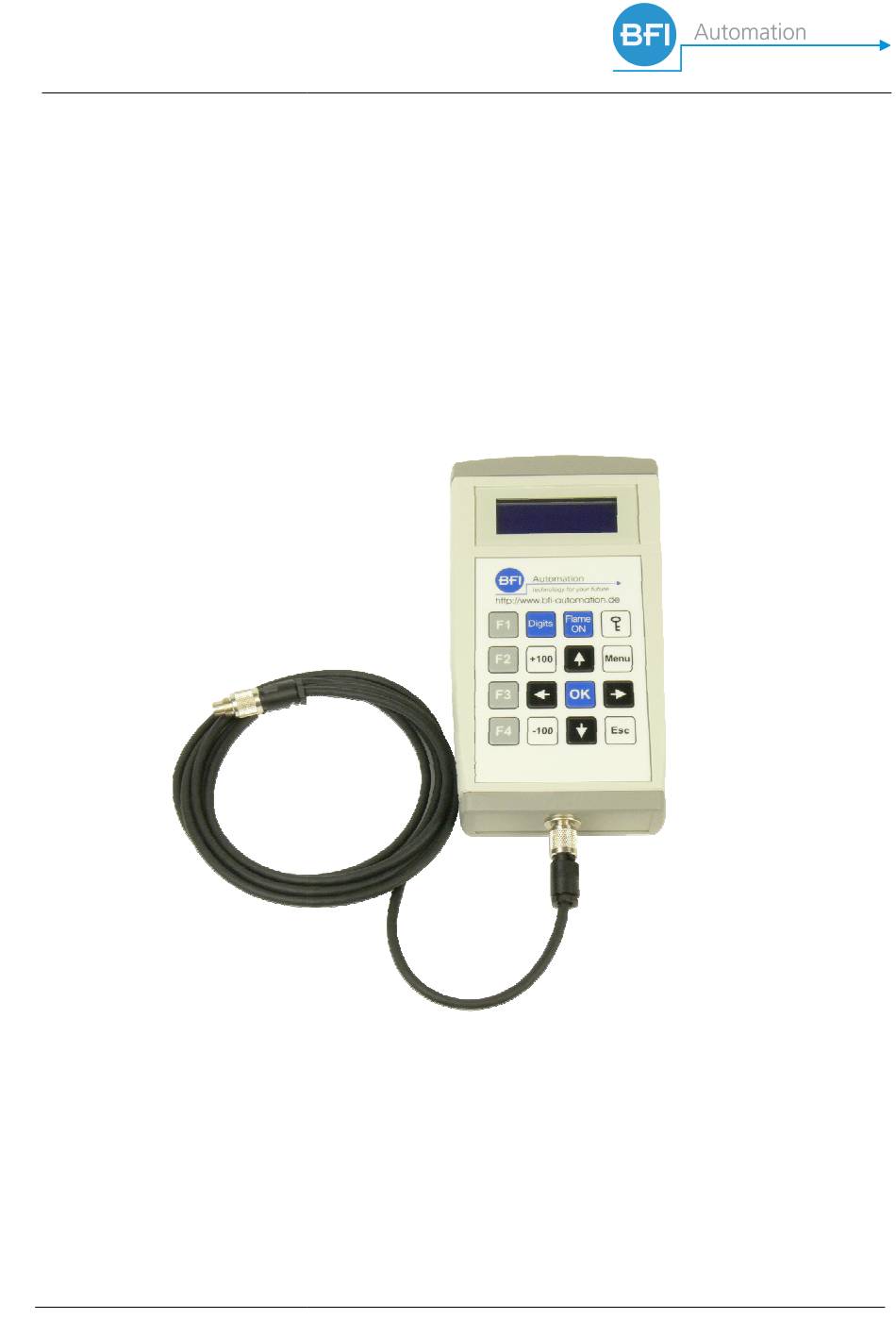

Page 1 Terminal HT100 for CFC 100 Type: Type: HT 100 Document No.: Document No.: BA HT100 EN Rev2 BFI Automatio BFI Automation Mindermann GmbH Eggerscheidter Str. 57 D-40883 Ratingen, Germany Tel. +49 (0) 2102 9682-0 Fax +49 (0) 2102 9682-42 http://www.bfi-automation.de...
Page 3: Table Of Contents
Intended Use Requirements Relating to Persons Safety Instructions Safety Equipment 2.4.1 Basic Points 2.4.2 Safety Equipment on the HT100 Operator Terminal Safety Instructions for Maintenance and Troubleshooting 2.5.1 Basic Points 2.5.2 Electric/Electronic Equipment 2.5.3 Check According to Industrial Safety Regulations 2.5.4...
Page 4 Contents 5.1.7 The “Language” Menu Item Menu Navigation Diagram Maintenance and Care Malfunctions Order Data Accessories Fehler! Textmarke nicht definiert.
Page 5: General Information
General information General information Foreword These operating instructions are an important aid to en- sure the successful and safe operation of the CFC 100 compact flame controller with the HT 100 operating ter- minal described here. They contain important instructions on how to operate the device safely, properly and effi- ciently.
Page 6: Warnings
General information Warnings These operating instructions use the following warnings: A warning of this hazard level indicates an impending ha- zardous situation. If the hazardous situation is not avoided, it will result in severe injury or death. Follow the instructions in this warning to avoid the danger of severe injury or death of persons.
Page 7: Copyright
They may only be made available to thorized to do so. They may only be made available to third parties with the written approval of BFI Automation. third parties with the written approval of BFI Automation.
Page 8: Warranty
• the failure to use genuine spare parts and accessories • modifications that are not agreed with BFI Automation • the failure to carry out prescribed maintenance work We recommend that the operator agrees a service con- tract with BFI Automation.
Page 9: Duties Of The Operator
General information Duties of the Operator The CFC 100 compact flame controller may present risks if it is operated improperly or in an improper state. The operator must only operate the device in a flawless condition. Hazard areas arising between BFI devices and on-site installations must be secured by the operator.
Page 10: Liability Disclaimer
BFI Automation for re- sulting damage. BFI Automation is liable for any faults or omissions on our part, excluding additional claims arising in the context of the warranty obligations outlined in the contract.
Page 11: Declaration Of Conformity
Low Voltage Directive 2006/95/EC EMC Directive 2004/108/EC This declaration of conformity is the result of a test con- ducted by BFI Automation in accordance with European requirements. In the event of a change to the system that is not agreed with us, this declaration shall be rendered invalid.
Page 12: Manufacturer's Address
General information Manufacturer's Address BFI Automation Mindermann GmbH Eggerscheidter Straße 57 D-40883 Ratingen, Germany Tel. +49 (0) 2102 9682-0 Fax +49 (0) 2102 9682-42 E-mail: info@bfi-automation.de Internet: www.bfi-automation.de...
Page 13: Safety
Safety Safety Intended Use The HT 100 operator terminal is used exclusively to pa- rameterize the CFC 100 compact flame controller. Danger from inappropriate use! Danger can result from the improper use of the device and/or use of the device for a purpose other than its in- tended purpose.
Page 14: Requirements Relating To Persons
Safety Requirements Relating to Persons Work on/with the device may only be carried out by per- sons who are authorized to do so based on their training and qualifications. In addition, these persons must also be authorized by the operator to carry out such work. Personnel to be trained, taught and instructed or person- nel undergoing general training must only be allowed op- erate the device under the continuous supervision of an...
Page 15: Safety Instructions
Safety Safety Instructions Note the following instructions regarding accident preven- tion when operating the HT 100 operating terminal: Only operate the device in a technically flawless state! • Do not remove or disable safety equipment. • Prior to use, check the device for external signs of damage and defects! Any changes that occur (includ- ing changed in operating behavior) must be reported immediately to the responsible office/person! If neces-...
Page 16: Safety Equipment
Observe these signs. Damaged or illegible warning/hazard signs must be re- placed immediately. 2.4.2 Safety Equipment on the HT100 Operator Terminal The compact flame controller is equipped with the follow- ing safety equipment: • Housing (protection against accidental contact)
Page 17: Safety Instructions For Maintenance And Troubleshooting
• The adjustment, maintenance and inspection activities and intervals prescribed by BFI Automation, including information concerning the replacement of parts/part components, must be observed! These activities may only be performed by authorized technical specialists.
Page 18: Electric/Electronic Equipment
Safety 2.5.2 Electric/Electronic Equipment Danger to life due to electric current Contact with live lines or components poses a danger to life! Before commencing work on electric installations, isolate the compact flame controller from the power supply! Work on electric/electronic components/groups may only be carried out by qualified electricians in accordance with the electrical engineering rules.
Page 19: Check According To Industrial Safety Regulations
If any questions or issues arise, contact BFI Automation. 2.5.4 Safety Test Prior to Commissioning Danger of injury and damage to property due to improper...
Page 20 Safety...
Page 21: Technical Data
Technical Data Technical Data General Features • Voltage supply via the CFC 100 compact flame control- • Menu-based operation • Bi-directional RS232 interface • Protective system IP 65 Electrical, Optical and Mechanical Sys- tems Display 3-row dot matrix LCD with 16 characters per row Display color White font against blue background...
Page 22: Weight
Technical Data Weight Operator terminal 0.220 Cable 0.060 Dimensions Length (without con- nection cable) Width Height Cable length 2000 (see Chapter 4.5)
Page 23: Transport, Installation And Connection
Transport, Installation and Connection Transport, Installation and Connec- tion All installation and connection work may only be carried out by qualified and authorized technical personnel! Observe the legal requirements as well as the setting in- structions of the plant operator! Scope of Delivery •...
Page 24: Packaging
Following the delivery of the device and accessories, any damage caused by defective packaging or transport must be reported immediately to the forwarding agent, the in- surance company and BFI Automation. Take steps to minimize the damage incurred and prevent further damage.
Page 25: Space Required
Transport, Installation and Connection Space Required See the illustration below.
Page 26: Installation
Transport, Installation and Connection Installation All installation and connection work may only be carried out by qualified and authorized technical personnel! Observe the legal requirements as well as the setting in- structions of the plant operator! The operator terminal is provided for the on-site parame- terization of the CFC 100 compact flame controller.
Page 27: Connection
Transport, Installation and Connection Connection The supplied cable is connected to the terminal and to the CFC 100. On the CFC 100, the metallic protective cap on the left beside the type plate must first be removed. Al- ways tighten the screw connection at the cable ends.
Page 28: Storage
Transport, Installation and Connection Storage Do not unpack the packaged compact flame controller and accessories. The following regulations apply to storage: • Store in a dry location. Maximum relative air humidity: 95 Make sure that the packages are not stored in the open air.
Page 29: Description
Description Description Operator Terminal Legend: 1. Digits hotkey -> display the flame intensity 2. Function key F1 -> generates random numbers to allow generation of substitute passwords by BFI Automation 3. Arrow key up -> menu navigation 4. Arrow key left -> menu navigation 5.
Page 30 If the password entered is lost, press and hold the F1 key (2) within these 3 seconds to generate a ran- dom number, which BFI Automation can use to calculate a substitute password. This substitute password is only valid until the terminal is switched off, but allows you to enter a new password.
Page 31: The "Detector" Menu Item
Description 5.1.1 The “Detector” Menu Item This menu item provides the following information about the CFC 100 compact flame controller: • Operating hours of the CFC 100 and the UV tubes • Startup counter • Firmware Menu structure > Operating hours Operating hrs.
Page 32: The "Measured Values" Menu Item
Description 5.1.2 The “Measured values” Menu Item All of the available measured values can be accessed here: • Current measured value in digits and as a progress bar • Average value of xx measurements (number can be edited) in digits •...
Page 33: The "Off Time" Menu Item
Description 5.1.3 The “Off time” Menu Item Select this menu option to display the current value in seconds for the factory-set shut-down time. Menu structure Meas. vals. Off time > Off time 1 sec. Thresholds 5.1.4 The “Thresholds” Menu Item You can display and edit the threshold values for both channels here.
Page 34: Limit Values Of The Individual Thresholds
Description 5.1.4.1 Limit Values of the Individual Thresholds The individual threshold values are subject to specific minimum clearances to one another. If these minimum dif- ferences are undershot, the error message “range over- lap” is triggered during the plausibility check. The diagram provides information about the connections and minimum differences: 20mA limit value...
Page 35: The "Shut Down" Menu Item
If you forget the entered password, you can press and hold the F1 (2) hotkey during the first 3 seconds imme- diately after you connect the HT100. The device gene- rates a maximum 10-digit random number that BFI Auto- mation GmbH can use to calculate a substitute password.
Page 36: The "Language" Menu Item
Description 5.1.7 The “Language” Menu Item The display on the operating terminal can be set to one of two languages that can be selected here: • German • English Menu structure Language Password >Language >German English Language German >English...
Page 37: Menu Navigation Diagram
Menu Navigation Diagram Menu Navigation Diagram Page 1 of 2...
Page 38 Menu Navigation Diagram...
Page 39: Maintenance And Care
Maintenance and Care Maintenance and Care The operator terminal is maintenance free. For cleaning, wipe the outside of the housing only with a damp cloth and clean the screen regularly. In the as-delivered condition, the screen is protected against scratches by a film. Do not scratch the screen!
Page 40 Maintenance and Care...
Page 41: Malfunctions
Malfunctions Malfunctions Problem: Cause: Remedy: Segments missing Faulty display or Send to BFI Automation for re- from the display display driver pair Key is not ac- Contact faulty Send to BFI Automation for re- cepted pair After 3 seconds, Shut down was Disconnect the cable briefly and the message “Re-...
Page 42 Malfunctions...
Page 43: Order Data
Order Data Order Data To order the operator terminal from BFI Automation, spe- cify the following order details: Type Order number HT 100 operator terminal 7040-2010-00...
