Summary of Contents for Renogy RBM500-CA

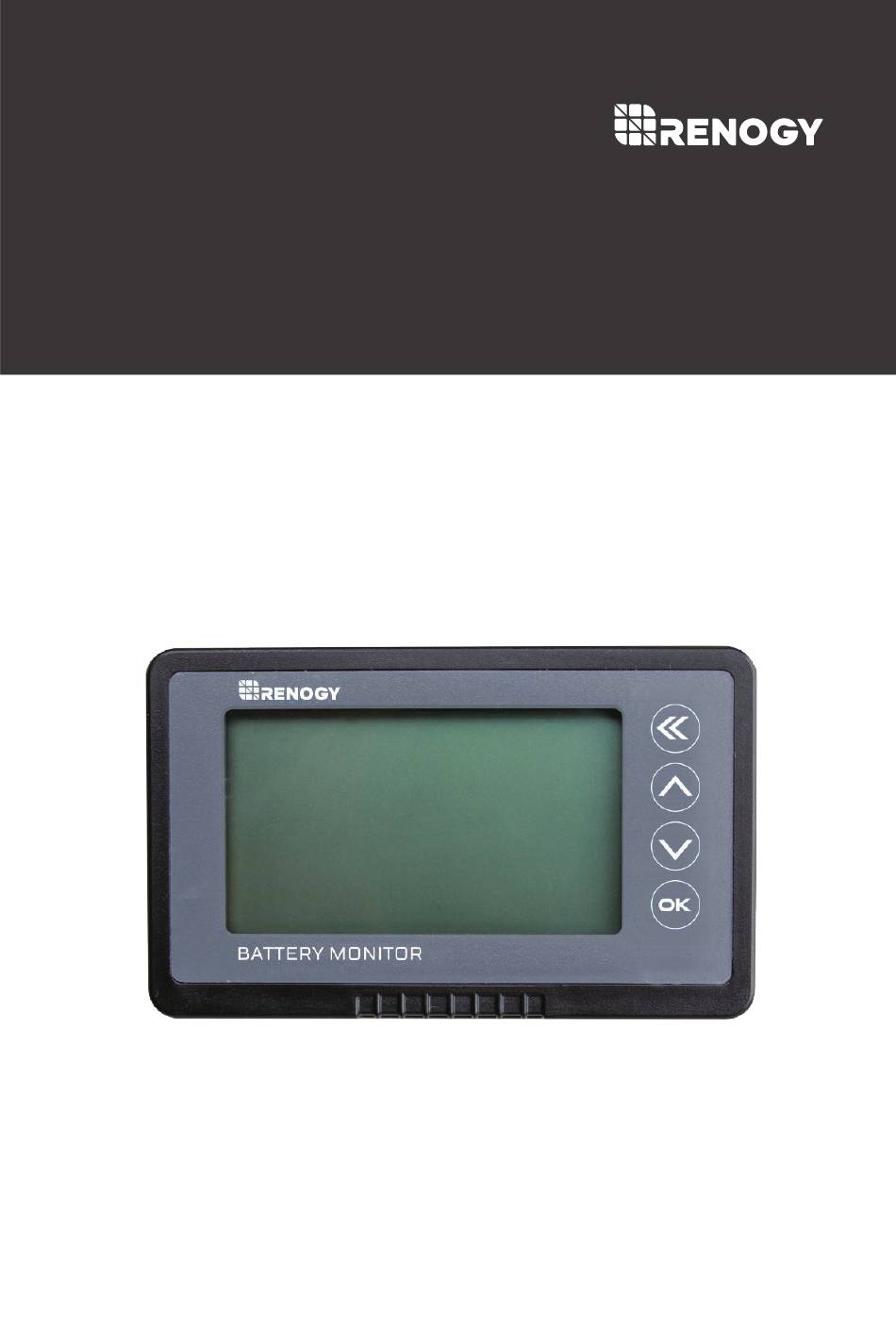

- Page 1 BATTERY MONITOR Version 3.0...
-
Page 2: Battery Safety
Disconnect the negative pole of the battery before installation. ★The Renogy Battery Monitor can't be exposed in the sun for a long time or in the environment with large amounts of ultraviolet radiation when using or storing, in winter (＜... -
Page 3: Identification Of Parts
Identification of Parts LCD Interface Shunt/Sampler Holder 500A Shunt/Sampler 20ft (6m) 3ft (1m) Shielded Wire 20 AWG B+ Wire... - Page 4 Dimension 3.9in 0.7in 99 mm 18 mm BATTERY MONITOR 3.3in 85mm φ0.1in φ3.1mm 1.7in 42mm 0.9in 24mm 0.2in M10, label the bolt size 1.3in 33mm 1.1in 27mm 2.9in 74mm...
-
Page 5: Installation
DO NOT connect to the positive circuit. Mounting The Renogy Battery Monitor is fixed by tabs, so it is easy to install. First, open a rectangular orifice on your equipment panel according to the size. Then put The Renogy Battery Monitor into the rectangular orifice, and make sure the tabs are locked. -
Page 6: Operation
Operation Interface description Charge-discharge Present capatity indicator Capacity percentage Dynamic indication Remaining time Present power Present voltage Present current Use steps 1. Wiring and checking the current： Power on after the connection as shown in the figure. The battery voltage, current and capacity percentage should be displayed on the screen. - Page 7 3. Capacity Homing（The battery capacity is cleared or full capacity setting.)： The capacity displayed on the electric meter is not the actual value of the battery after the first use or replacement of the battery. And zero or full capacity operation is required： A．Press and hold the button “...
- Page 8 Effective capacity of battery:The default is 100Ah.Please set according to the actual effective capacity of the battery pack, otherwise the capacity percentage display will be incorrect; Full V Full capacity voltage: When the voltage is higher than the set value, thecapacity will be automatically set to 100%.
-
Page 9: Troubleshooting
When connecting the load, if the backlight is blinking, the B- and P- of the shunt are wired inversely. When the battery current is low the Renogy Battery Monitor will enter a low power (sleep mode) and the backlight will turn off, press any button and the backlight will turn on for 10s. - Page 10 RENOGY.COM Renogy reserves the right to change the contents of this manual without notice. 2775 E Philadelphia St, Ontario, CA 91761, USA 909-287-7111 www.renogy.com support@renogy.com 苏州高新区科技城培源路1号5号楼-4 400-6636-695 https://www.renogy.cn support@renogy.cn https://www.renogy.jp supportjp@renogy.com https://ca.renogy.com supportca@renogy.com https://au.renogy.com supportau@renogy.com https://uk.renogy.com supportuk@renogy.com https://de.renogy.com supportde@renogy.com...
