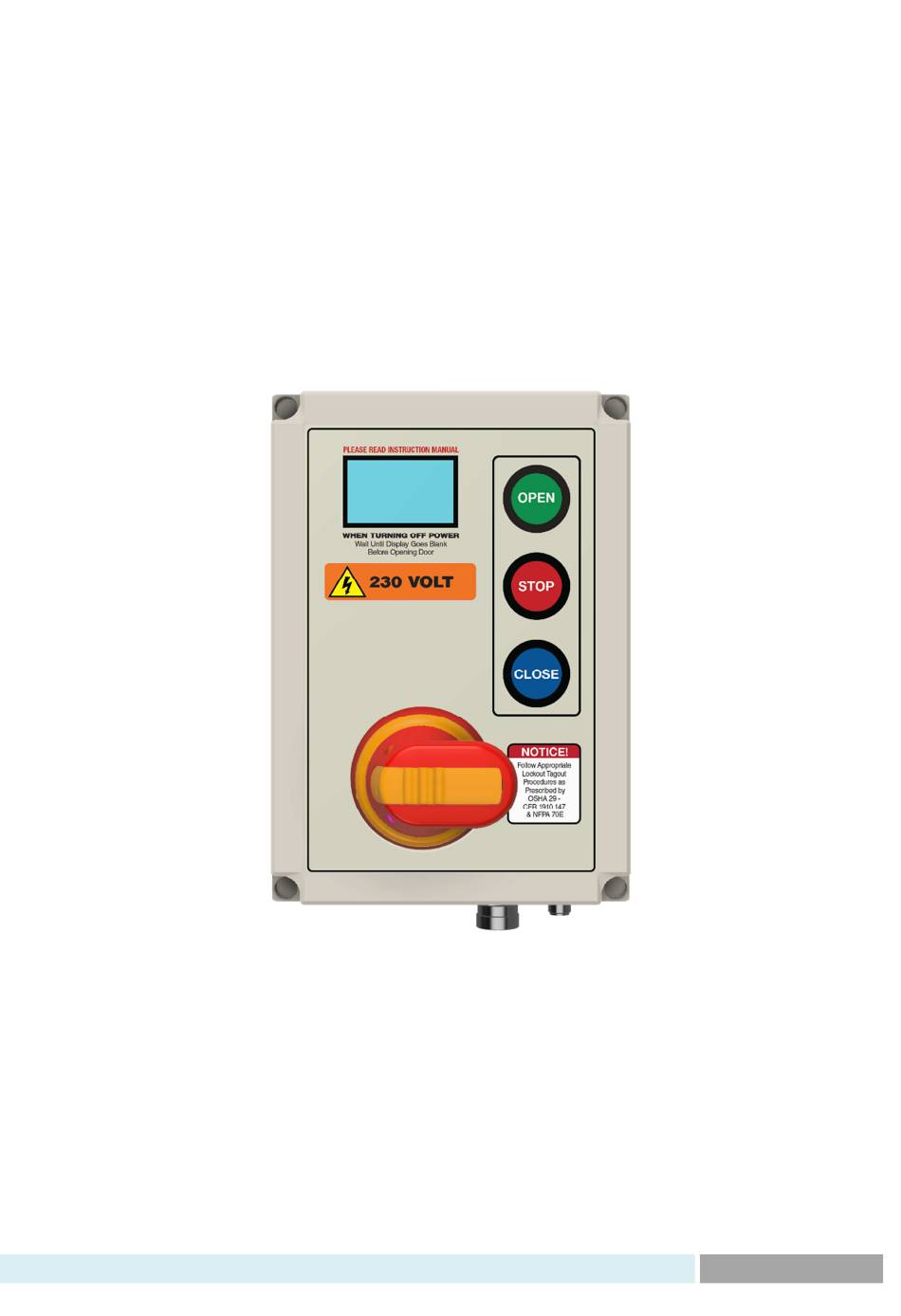

  • Page 1 DG-Mini Universal Door Control DG-Mini Rev. C Standard HW manual V 1.0.0...

  • Page 2: Table Of Contents

    Mains connection Motor connection Motor brake Encoder Reference limit Limit switches Safety edges Photoeye Programmable Inputs Front Panel Button Connections Power up sequence Screen Shots Menu Navigation Layout Button functionality Menus DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 3 Safety Edges Compatible Safety Edges Monitored Photoeyes Motor config Frequencies Ramps SeyWave System QUICK SETUP Screen Shots Troubleshooting Overview Error Messages Table of Error Codes Specifications Product label Model identification Mechanical dimensions DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 4 TABLE OF BTR Controls, Inc CONTENTS Technical specifications Appendix Repair and maintenance DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 5 BTR Controls, Inc. Furthermore, the purchase of BTR Controls, Inc. products shall not be deemed to grant either directly or by Implication, estoppel, or otherwise, any license under the copyrights, patents, or patent applications of BTR Controls, Inc., except for the normal non-exclusive, royalty-free license to use that arises by operation of law in the sale of a...

  • Page 6: Introduction

    INTRODUCTION ESCRIPTION The DG-Mini door controller has been specifically designed for industrial doors and gates. The controller provides variable motor speed and control as well as monitoring and response to external inputs. The DG-Mini door controller incorporates a comprehensive range of configurable parameters that allows the door/gate manufacturer and installer to configure for optimal performance.
  • Page 7 Do not mount the controller in direct sunlight or other sources of heat as this may cause the controller to overheat. WARNING There are no user- serviceable parts inside the DG-Mini. Repairs can only be done by BTR Controls Inc. WARNING Disconnect mains supply and follow all appropriate lock-out tag procedures when installing or servicing the controller.

  • Page 8: Controller Overview

    WIRELESS Speed Tech A/S SETUP ONTROLLER OVERVIEW OPTO EDGE CONNECTIONS ABSOLUTE ENCODER CONNECTIONS FRONT PANEL PUSH BUTTON CONNECTIONS PROGRAMABLE RELAY MAINS MOTOR CONNECTIONS CONNECTIONS INCREMENTAL POWER RELAY ENCODER SAFETY EDGE CONNECTIONS CONNECTIONS PHOTOEYE CONNECTIONS* PROGRAMABLE INPUTS NOTE Photoeyes may be connected to different terminals based on the type of photoeye.

  • Page 9: Basic Wiring

    Shielded 14 AWG, 600V, 75C or 90C RHH/RHW-2 (VFD rated cable required) Control Unshielded 16 AWG, 600V, 75C or 90C THHN/THWN or equivalent Communication 22AWG (0.8mm ) twisted pair, 100% shield with drain DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 10: Mains Connection

    120V Mains Connection (1 Phase) WARNING Grounding of the mains supply is essential to safety of personnel as well as the operation of the DG-Mini controller. A floating or ungrounded mains supply can create a hazardarous condition or permantely damage the controller.

  • Page 11: Motor Connection

    Connect both the ground and shield wires to the chassis on the motor side. Also connect both the ground and shield wires to PE terminals on the controller. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 12: Motor Brake

    The example shown uses the power relay to control an AC motor brake. NOTE Set the power relay to ‘Door Moving’ by using the menu: System Config Outputs Power Relay. This setting will activate the power relay activate when the door is moving. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 13: Encoder

    BTR Controls, Inc. WIRING NCODER It is possible to connect either a digital absolute encoder or an incremental encoder to the DG-Mini controller, however only one type may be used at a time. CAUTION! Care must be taken when connecting an encoder to the DG-Mini as digital absolute encoders are connected to different terminals than incremental encoders.

  • Page 14: Reference Limit

    The controller uses the state of the switch to determine the direction the door is to travel during the reference run. The illustration below shows the possible locations and states for the reference switch. Reference Limit Switch Connection DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 15: Limit Switches

    IMIT SWITCHES The DG-Mini controller can also support mechanical limit switches. The minimum requirement is two switches, four are preferable. NOTE Limit switches are not a standard feature, consult BTR Controls Inc. for details. Switch No.: DG Mini terminal: Description:...

  • Page 16: Safety Edges

    The value of the required termination resistor and contact type must match the setting in the DG-Mini. If no safety edge is connected, the door will only operate in jog mode. Note: Normally-Open type safety edge shown...
  • Page 17 Connect the receiver and transmitter wires with the same color into the same terminal (Parallel). Terminal No.: Type: X29 (0V) X27 (Signal) X28 (+12V) Fraba System White Green Brown Telco SG15-OSE Blue Black Brown DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 18: Photoeye

    0V, REC (input) and +24V. Refer to the photoeye manufacturor’s datasheet for specific wiring and mounting information. Wire colors shown on right are for example only. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 19 NC Switch type: The photoeye input is compatible with a standard N/C switch type output, such as a relay contact. This must be connected between 0V and the REC input as illustrated below. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 20 This menu is used to see the signal strength. The received signal strength is displayed as a number. Move the transmitter until the highest possible value can be achieved. The minimum value is 3. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 21: Programmable Inputs

    System Config Inputs See Input configuration section for details RONT ANEL UTTON ONNECTIONS The front panel buttons can be programmed to function as Open-Close-Stop, Open with Auto close, or Jog mode. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 22: Power Up Sequence

    When power is switched on, the display will show the model information i.e. power, voltage rating, serial number, software version and active profile. Screen Shots Product Serial Number Firmware Version Wireless Status Active Door Profile Final Splash Screen DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 23: Menu Navigation

    Menu navigation buttons UTTON FUNCTIONALITY Button: Short press Function Long Press Function (> 2 seconds) Enter selected menu Exit menu Navigate one step UP Scroll UP Navigate one step DOWN Scroll DOWN DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 24: Menus

    • A short press of the MENU/ENTER Button while inside of a submenu will confirm a selection. • A long press of the MENU/ENTER Button will exit the submenu or menu. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 25: Menu Tree

    MENU BTR Controls, Inc. NAVIGATION ENU TREE DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 26: Access Level

    Installer Tech Support NOTE The DG-Mini will automatically exit the menu after a short-period of inactivity. The Access Level code will need to be entered again to gain access to the menu. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 27: Values And Functions

    A Long press of the MENU/ENTER button will exit the menu without making any changes. An example of selecting the function for Relay 1 is shown below. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 28: Programming

    When an error is present the idle screen is replaced by a screen showing the error code and a description of the error. See the section on troubleshooting for further details. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 29: Express Menu

    While in this menu the controller will operate jog mode. WARNING ANY CONNECTED SAFETY Emergency Jog INPUTS WILL BE IGNORED TO ALLOW UNRESTRICTED MOVEMENT OF THE DOOR. Reset Shortcut to reset the controller. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 30: Main Menu

    Displays the current encoder count. If an incremental encoder is used information about the reference status Position is also shown here. This screen may also display the status of the encoder’s internal battery when supported. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 31 BTR Controls, Inc. Safety Edge Displays the current status of the wired safety edge. Displays the state of the controller’s digital inputs. Inputs Active inputs are indicated by a filled box. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 32: Profile Selection

    After a profile has been loaded the controller can profile! be further adjusted to meet a specific customer’s requirements as needed. (Such as timer settings, input configurations and other options) DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 33: Limit Setup

    Pre Closed The position at which the controller starts to slow down a closing door Closed Lowest position the door will travel to under normal operation DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 34: Limit Setup

    The door can be jogged by using the UP/DOWN buttons on the controller or Open Part 1 front panel buttons. Open Part 2 Edge OFF The MENU/ENTER key is used to save the position and to exit the submenu. Photoeye OFF Photoeye 2 OFF DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 35: System Config

    A submenu for configuring motor frequency ramps. DG-Xnet A submenu for configuring the DG-Xnet wireless options Options A submenu for configuring optional devices. System A submenu for configuring system level items. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 36: Timers

    Set to zero to disable. Run Timer A safety feature that stops door movement if the DG-Mini detects that the door is still in motion after the Run Timer period elapses. The Run Timer is automatically set after a Quick Setup has been performed.

  • Page 37: Outputs

    Resistive loads only. Configuration of the Power Relay. (See Relay Output Function table below) CAUTION Power Relay Do not exceed the relay’s maximum electrical ratings 5A @ 240V AC. Resistive loads only DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 38: Relay Output Functions

    Part open Light function should be used whenever door state signaling is required. Note: The Power Relay’s function is normally set to Door Moving and is used to control the parking brake. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 39: Input Functions

    PROGRAMMING BTR Controls, Inc. NPUTS The DG-Mini includes 8 user-programmable inputs. Each Input can be individually configured through a multilevel menu. Start by selecting the desired physical input using the Input Menu. Then select the desired configuration submenu as described below.
  • Page 40 If the Man 1 Timer is greater than zero, the controller will delay the door for the duration of the timer. Upon expiration of the timer, the door will close to the Fully Closed position. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 41 The Open button is treated like an Auto 1 input and the Auto 1 Timer is used Jog Only The Open and Close buttons function strictly as constant pressure (Jog) mode and the door will move only as long as a button is held. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 42: Position Sensor

    BTR Absolute Encoder is mounted directly to the motor shaft the Gear Ratio parameter would be set to 1. Conversely, if the BTR Absolute Encoder is mounted to a drum shaft driven by gear motor with a ratio of 10:1, the gear ratio would be set to 10.
  • Page 43 Since the controller is optimized for a Pulse Count setting of 32. Divide the encoder’s native resolution by A BTR encoder specific menu to set the number of pulses per revolution which is used in closed loop feedback. Pulse Output...

  • Page 44: Safety Edges

    AFETY DGES The DG-Mini has a dedicated Safety Edge Input. The Safety Edge input can be configured through a multilevel menu to configure the type, number of retries and operating mode. To configure the type of Safety Edge, select the Safety Edge 1 submenu and then select the type.
  • Page 45 Safety Edge is a Normally Closed NC with 8K2 contact in series with a 8.2k-ohm resistor. Safety Edge is a Normally Open NO with 1K2 contact in parallel with a 1.2k-ohm resistor. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 46 9.1V Zener diode and a capacitor. FRABA Radioband SeyWave Ext Lightcurtain Not supported in standard software, consult factory when using any of Opto 1 these safety edges. Opto 2 DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 47: Monitored Photoeyes

    PROGRAMMING BTR Controls, Inc. Monitored Photoeyes Description: NOTE The Monitored Photoeyes feature is not currently supported Monitored Photoeyes are disabled. Monitored Photoeyes are enabled. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 48: Motor Config

    The DG-Mini is compatible with a wide variety of AC induction motors. The motor must be a 3-phase asynchronous motor. The voltage rating on the nameplate of motor should match the model of the DG-Mini. The FLA rating of the motor should be less than the output current rating of the DG-Mini model.
  • Page 49 This sets the tolerance the controller uses when positioning the door. Example: If the Fully Open position is set at 700 and Position Position Tol. tolerance is set to 5,the DG-Mini will stop driving the motor when the position reaches 695 Continued on next page...
  • Page 50 Example: If the Fully Open position is set at 700 and Relay Relay Tol. Tolerance is set to 30, the DG-Mini will activate an appropriately programmed relay when the position reaches 670. DC braking is used to inject DC current into the motor windings which help stop the door within the position tolerance at the end DC Brake Cur.

  • Page 51: Frequencies

    This menu is used to adjust the various speeds used by the DG-Mini during operation of the door. Since the speed of the motor is directly proportional to the frequency of the voltage applied to it, the DG-Mini is able to control the door’s speed by controlling both the voltage and frequency during door movement.

  • Page 52: Ramps

    This ramp is the rate at which the motor will decelerate if a safety event occurs Dec Emergency during any door movement. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 53 Note: The DG-Xnet is an optional feature requiring a special hardware module connected that is connected to the controller’s RS485 port. The DG-Mini must detect this module during startup; therefore ensure required connections are made prior to startup. Refer to DG-Xnet documentation for further details.

  • Page 54: Seywave

    The Illumadoor® is an LED strip light that can be used to provide visible indication of status for industrial doors . Each strip has 30 individual Red, Amber and Green LED’s that can be wirelessly controlled from the DG-Mini when using the BTR Illumadoor®...
  • Page 55 This submenu is used to adjust the maximum amount of time the DG-Mini will wait for a valid motion check message from a SeyWave Molded Sensor during a closing cycle.
  • Page 56 The FLASH submenu enables or disables flashing for that particular output when it is active. This menu sets the flash rate of the output, if the Flash setting is Flash Rate enabled. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 57: System

    This submenu is used to set the display’s contrast. SW Update This submenu is used for updating the DG-Mini firmware. This submenu is used to identify the DG-Mini and includes Type, System Info Power Size , and Voltage Rating. SW Info This submenu displays the DG-Mini’s current software version.

  • Page 58: Quick Setup

    SETUP QUICK SETUP The Quick Setup procedure is a required step during the installation of the DG-Mini. A Quick Setup must be performed after all connections and programming, including profile selection, have been completed. The Quick Setup is used to set door positions and also validate the installation. If the Quick Setup encounters a problem it will abort and provide a corresponding error message.
  • Page 59 The menu will automatically exit and return to the Idle screen. The DG-Mini is now ready for operation. If an issue was encountered “Quick Setup Aborted” will be displayed followed by a corresponding error message. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 60: Troubleshooting

    BTR Controls, Inc ROUBLESHOOTING Overview This chapter provides information on error codes that may occur on the DG-Mini along with troubleshooting information and corrective actions. High-priority codes preempt the display of lower-priority error codes. Error Messages If an error occurs, the idle screen is replaced by a screen showing the error code and a description of the error. An example error code display is shown below.
  • Page 61 The reference switch If using an incremental encoder Ref. Switch Position operates in the wrong the reference switch has Medium Priority Error position. activated at the wrong position, DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 62 Seywave Wireless door range. Verify that the sensor’s Fault Specific Timeout sensor timeout battery is ok. Seywave DS Seywave Door Sensor Check wiring on the door Fault Specific Connection Fault Connection Fault sensor. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 63 Medium Stop, Monitored Stop or MENU/ENTER Can also be reset by higher priority Button pressed reset conditions. High MENU/ENTER Button pressed Fault Specific Auto-clears when fault no longer exists. DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 64: Specifications

    This label informs you of the model/type of the enclosed controller. number, serial number, test at factory date and relevant electrical/environmental specifications. ODEL IDENTIFICATION Mains Brake I out Mains input filter chopper DG-Mini 750G-120 DG-Mini 750G DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 65 SPECIFICATIONS BTR Controls, Inc DG-Mini 1500G DG-Mini V7 Rev. C Standard HW manual V 1.0.2...

  • Page 66: Mechanical Dimensions

    SPECIFICATIONS BTR Controls, Inc ECHANICAL DIMENSIONS DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 67 Photoeye / Light Curtain Input – Cat 2 /P.L. d Monitored stop Communications: RS485 communications. Internally terminated with 120 RS485 CH1 (Standalone connector) Ohms RS485 communications for encoder communications. 30, 31 (RS485 CH2) Internally terminated with 120 Ohms DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 68 APPENDIX BTR Controls, Inc APPENDIX DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 69 APPENDIX BTR Controls, Inc DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 70 This product should be disposed and treated as WEEE (Waste Electrical and Electronic Equipment). For additional technical assistance, contact: BTR Controls Inc. 1570 Todd Farm Road Elgin, IL 60123-1287 www.btrcontrols.com Phone (847) 608-9500 Fax (847) 608-9522 DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
  • Page 71 APPENDIX BTR Controls, Inc DG-Mini V7 Rev. C Standard HW manual V 1.0.2...
