Summary of Contents for Technologies Paving Innovation TC101

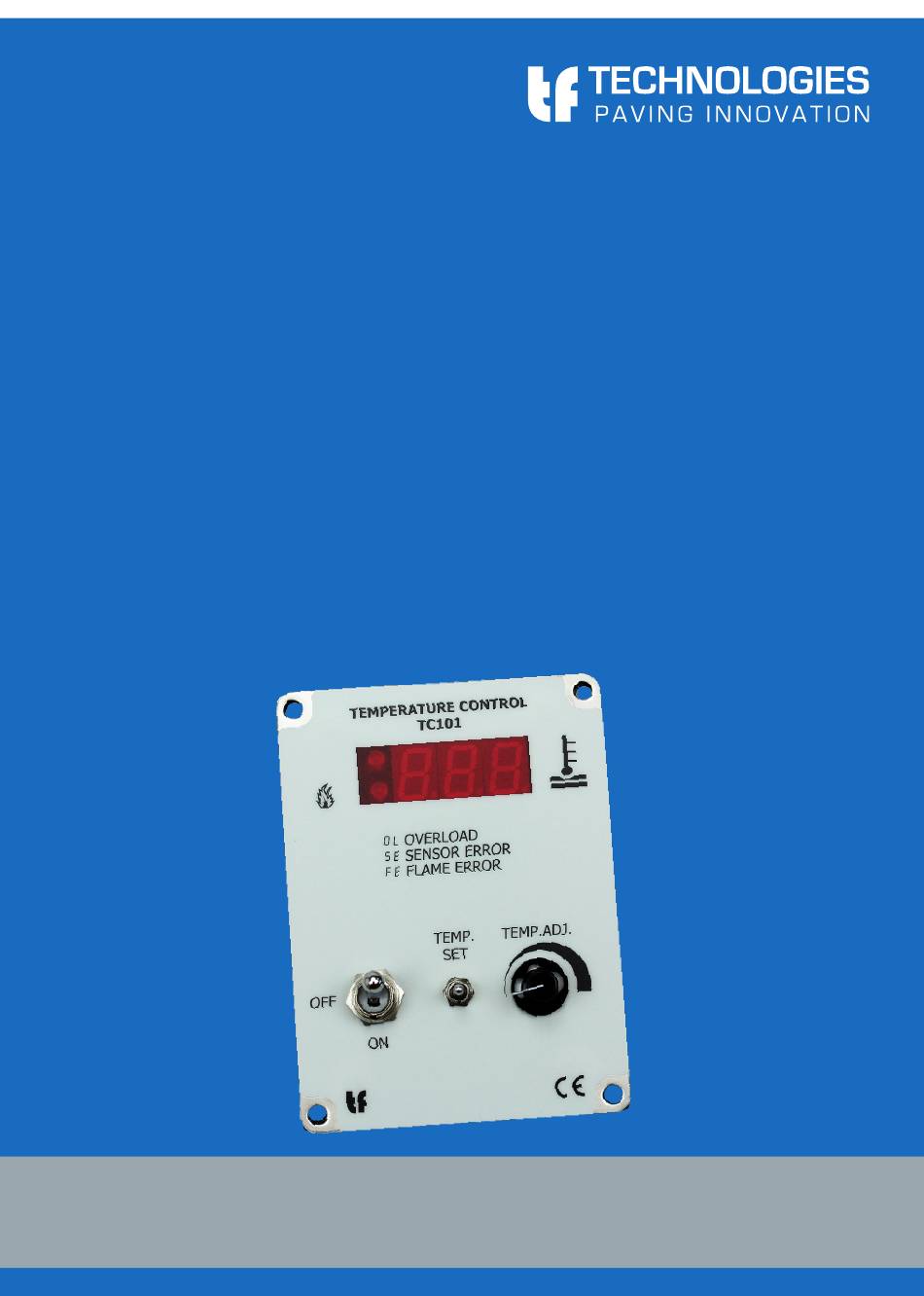

- Page 1 TC101 TEMPERATURE CONTROLLER User Manual...
- Page 3 TC101 TEMPERAURE CONTROLLER User Manual Kratbjerg 214 - DK 3480 Fredensborg - Denmark - Phone: +45 48 48 26 33 - Email: sales@tf-technologies.com www.tf-technologies.com...
- Page 4 About this manual About TC101 Temperature Controller User Manual Content and structure Copyright This User Manual for TC101 Temper- All information, text and pictures are the ature Controller covers specific part intellectual property of, and copyrighted numbers S-50153 and S-50168 has material of TF-Technologies A/S.
-
Page 5: Symbol Overview
About this manual TC101 Temperature Controller Symbol overview The TC101 is a Temperature Controller, This user manual uses a range of symbols which monitors and maintains a user de- and warning notifications throughout the fined temperature of material contained manual to make the operator aware of im- in hot-boxes and similar containers. -
Page 6: Operation
Operation Operation • Display • Burner LED This is a 3 digit LED display, which This LED indicates that the “BURNER” shows temperature and various error output is driven to ground(/turned on) codes • Power switch • Error chart The power switch has two positions. This is just a printed error chart, In the middle position (OFF), power is which shows possible error-codes. - Page 7 Operation • Mounting screws All mounting screws are 3 x 8 mm • Connector This is the Temperature Controller’s only international connector. The pin assign- ment is as follows: 0. Flame error input. 1. Sensor input. 2. Sensor input. 3. Burner output. 4.
-
Page 8: Description Of Operation
SET switch. The system will now operate automatically and burners will deactivate at the new Fig. 3 - TC101 Temperature Controller in a box preset temperature. Burners will reactivate when the temperature has dropped 2° C below the setpoint.r with... -
Page 9: Troubleshooting
Appendix Trouble-Shooting Symptom Probable Cause Appropriate Action • Check connector for sufficient coltage at the con- Fails startup Damaged nector. If this is OK, then the module is probably damaged. • Check system wiring and all connectors for correct Failes in operation Connection connections. - Page 10 • Display is disutbed TC101 This is probably because the TC101 and one or more of the gas-valves that it controls share a common power supply cable. As mentioned earlier the TC101 should have its own large cables directly connected to the battery •...
- Page 11 Appendix Technical Specification (data sheets)
- Page 12 Appendix...
- Page 14 Kratbjerg 214 - DK 3480 Fredensborg - Denmark - Phone: +45 48 48 26 33 - Email: sales@tf-technologies.com...
