SOUNDLink AID202 User Manual

Operation
Temperature : Press the thermostat selection button to select 40℃
and 50 ℃ . The default temperature is 40℃, so the red indicator light
at 40℃ is always on . If need 50 ℃, continue to press the thermostat
selection button again. The 50 ℃ green indicator light is always on,
and the 40℃ green light is off. Switch between 40℃ and 50 ℃.
Ending： The machine will stop heating automatically when the
setting time is reached. Accordingly, the corresponding heating
indicator red light turns off, and the corresponding timing green light
flashes at the same time. The drying process is finished and hearing
aids should be removed from the dryer.
Brush with loop & magnet :
The loop is used to remove foreign
matter in the tube . The magnet is used to remove the battery from the
hearing aid or load the battery to the hearing aid. The brush is used to
clean the surface of the hearing aid .
Two battery placement:
The magnetic suction force of the area
is used to suck the battery to avoid the loss of the battery drop.
Notes
1．Keep stains, watermarks away from the hearing aids before
drying.
2．Remove battery from hearing aids before drying.
3．Make sure hearing aids clean and no battery leakage before
drying.
4．Power specifications must be strictly observed with our
instructions to avoid serious consequences such as halting
problem or even burnt of machine.
5．Do not cover the machine when it is working.
6．The drying time must be less than 12 hours per day.
Notes:
7．Please pull out the plug after drying.
8．Do not try to disassemble or repair the machine by yourselves.
9．Keep away from children.
Common troubleshooting
No Symptom Cause Analysis Solution
1.The power adapter 1.Re-plug the power
1.If power-on, the 4 and socket are not adapter and socket
indicators do not plugged well. 2.Re-plug the power
flash 2.The power adapter adapter and USB
2.If press time and USB cable are cable
1
setting button are not plugged well. 3.Re-plug the power
not on 3.The power cord is strip and make
3.If press temperature not plugged well or sure the power
the power button on button is turned on
setting buttonare
not on the power strip is
not turned on.
Note:
1. Must turn off the power before checking the board inspection.
2. Repairing must be performed by professionals.
Packing list
No Item Model Quantity Remarks
1 Instruction manual AID202 1
With instruction
2 1
Certificate AID202
manual
3 1
Packing List AID202
4 Power Adapter 5.0V/1.0A 1
5 Adapter charging cable USB to DC3.5*1.35 1meter
Remarks
Board
inspection
and
repairing
should be
performed
by
profession
als
372012

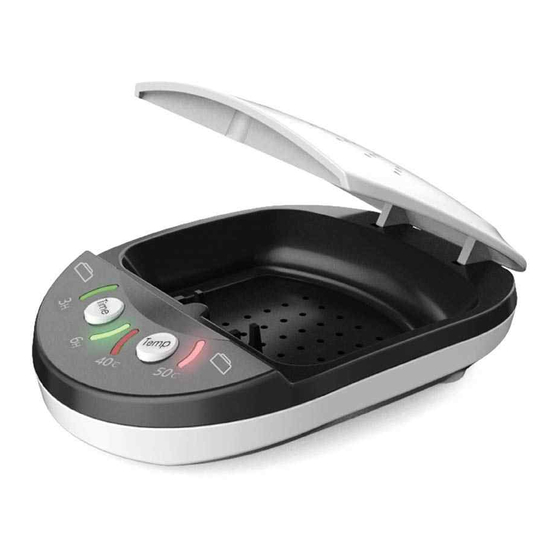

AID202 Electronic Dryer
User Manual
+86 512-69372012
