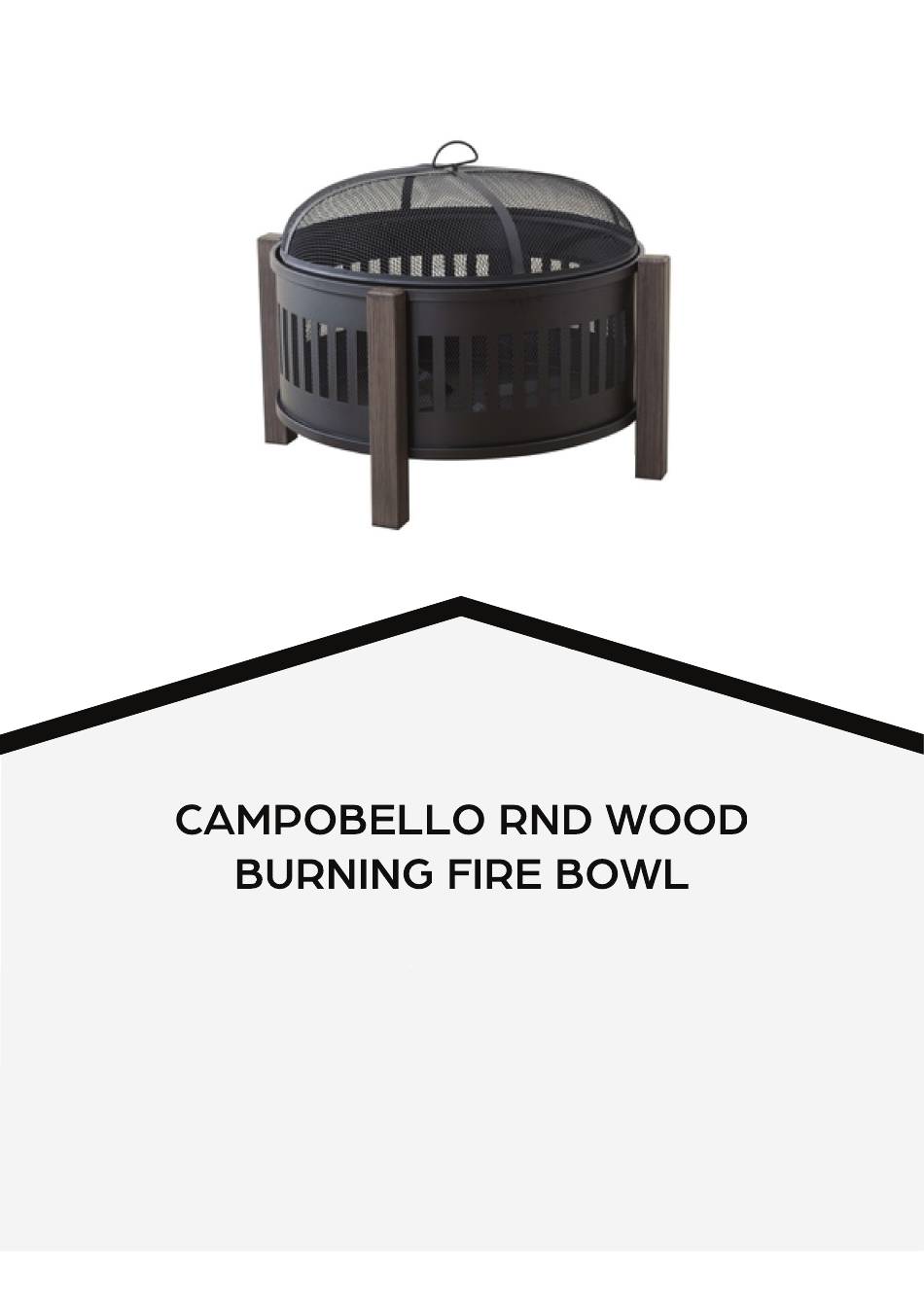

- Page 1 CAMPOBELLO RND WOOD BURNING FIRE BOWL ASSEMBLY INSTRUCTIONS ASSEMBLY INSTRUCTIONS ITEM#: A301019900 ITEM#: A301019900 SKU#: 810540922 SKU#: 810540922 Production Number: 2021200011 Production Number: 2021200011...
-
Page 2: Warranty
GENERAL BEST PRACTICES FOR ASSEMBLY: • Before beginning assembly of product, make sure all parts are present. Compare parts with package contents list and hardware contents list. If any part is missing or damaged, do not attempt to assemble the product. •... -
Page 3: Exploded Drawing
EXPLODED DRAWING... -
Page 4: Parts List
PARTS LIST Label Description Part Image Part Number... -
Page 5: Hardware List
HARDWARE LIST Label Part Number Description Part Image... -
Page 6: Helpful Hints
HELPFUL HINTS • Separating parts before starting Tool needed How many people needed for the installation... - Page 7 STEP 1 Assembled View: Attach Handle(A) to Mesh Screen(B) with Nut M6(BB), tighten Nut M6 with Wrench M6(Z1).
- Page 8 STEP 2 Assembled View: Attach Fire Bowl(C) to Leg(D) with Bolt M6*25(AA) and Flat washer M6(CC), tighten all the Bolts to 100% depth with Wrench.
- Page 9 STEP 3 Assembled View: Put the assembled Mesh Screen(A/B) on the Fire Bowl(C),then match the Poker(E).The product assembly is completed.
