Summary of Contents for Atreum Lighting HYDRA-3200

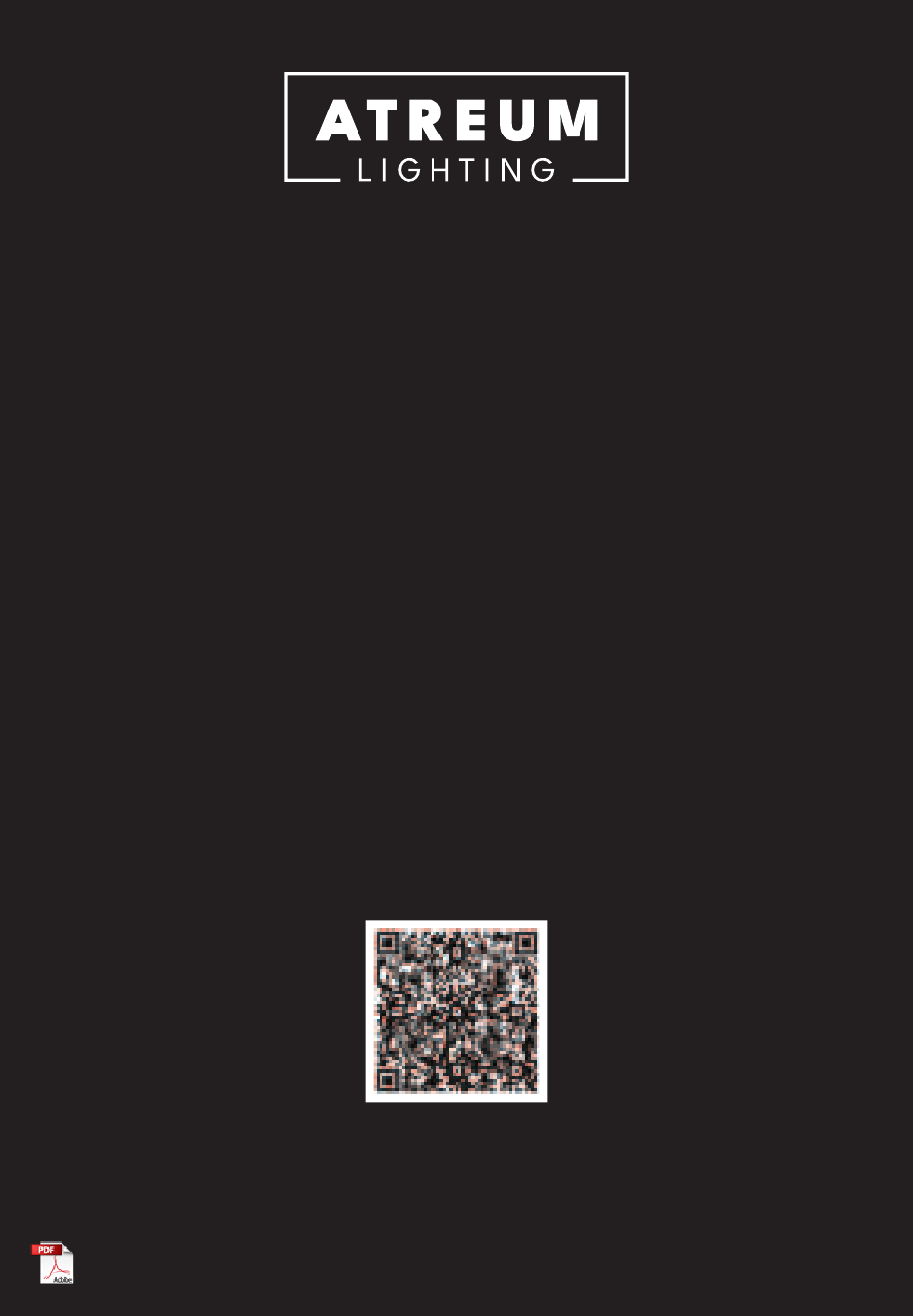

- Page 1 HYDRA-3200 GROW LIGHT USER MANUAL For instructions and product information, scan the QR code or visit atreumlighting.com...
- Page 2 4. The unit has been dropped, or its enclosure or chassis is damaged GENERAL CARE Atreum Lighting HYDRA Series systems are passively cooled with zero moving components. They are designed for years of maintenance-free performance. Some basic care will keep your system operating at peak performance cycle-after-cycle.

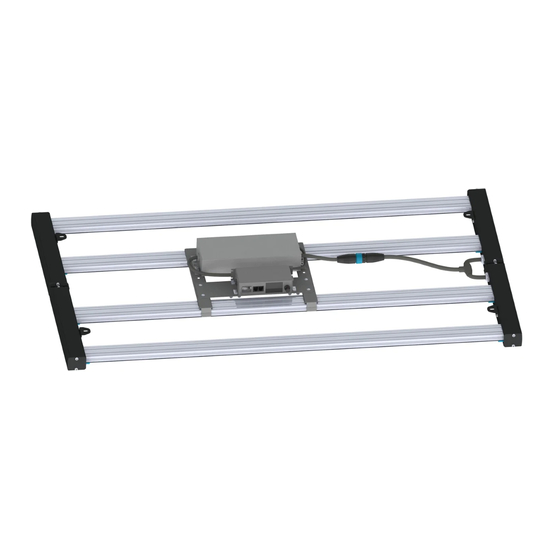

- Page 3 Dimensions 6.0kg (13.2lbs) 1033mm x 580mm x 78mm HYDRA-3200 40.7in x 22.8in x 3.1in SYSTEM HARDWARE & ACCESSORIES 1. HYDRA-3200 Light Fixture 2. Power Cable 3. DC Extension Cable 4. Stainless Steel 5. Adjustable 6. RJ11 Cable Cable Hangers Rope Hangers...
- Page 4 ASSEMBLY INSTRUCTIONS Attach 4 adjustable rope hangers, one Connect power supply to fixture at each attachment point. Hang the power cable light at the appropriate height. Plug the power cord into the control box. Plug the power cord into the wall socket. Turn on the light switch.
- Page 5 RECOMMENDED HANGING HEIGHT Hang at 48” Hang at 24” - 48” Hang at 12” - 24” SEEDING FLOWERING FUNCTION OVERVIEW Dimming Readout On/off Switch Dimming Knob (10%-100%) Dimming Signal Input Dimmer Signal Output Dimmer Lead/Follow Switch...
- Page 6 SINGLE LIGHT DIMMING OPERATION 1. Turn on light switch OFF ON 2. Set dimmer switch to Lead LEAD FOLLOW 3. Adjust light using Dimming Knob...
- Page 7 MULTI-LIGHT DIMMING OPERATION Connect multiple lights using the RJ11 cable, from the DIM Output of one unit to the DIM Input of the next unit. INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT INPUT OUTPUT Set one light as the primary by switching the dimmer switch to LEAD. Set all subsequent lights to FOLLOW.
- Page 8 Review our products, share your grow, and stay update-to-date on Atreum Lighting news and products. atreumlighting.com...
