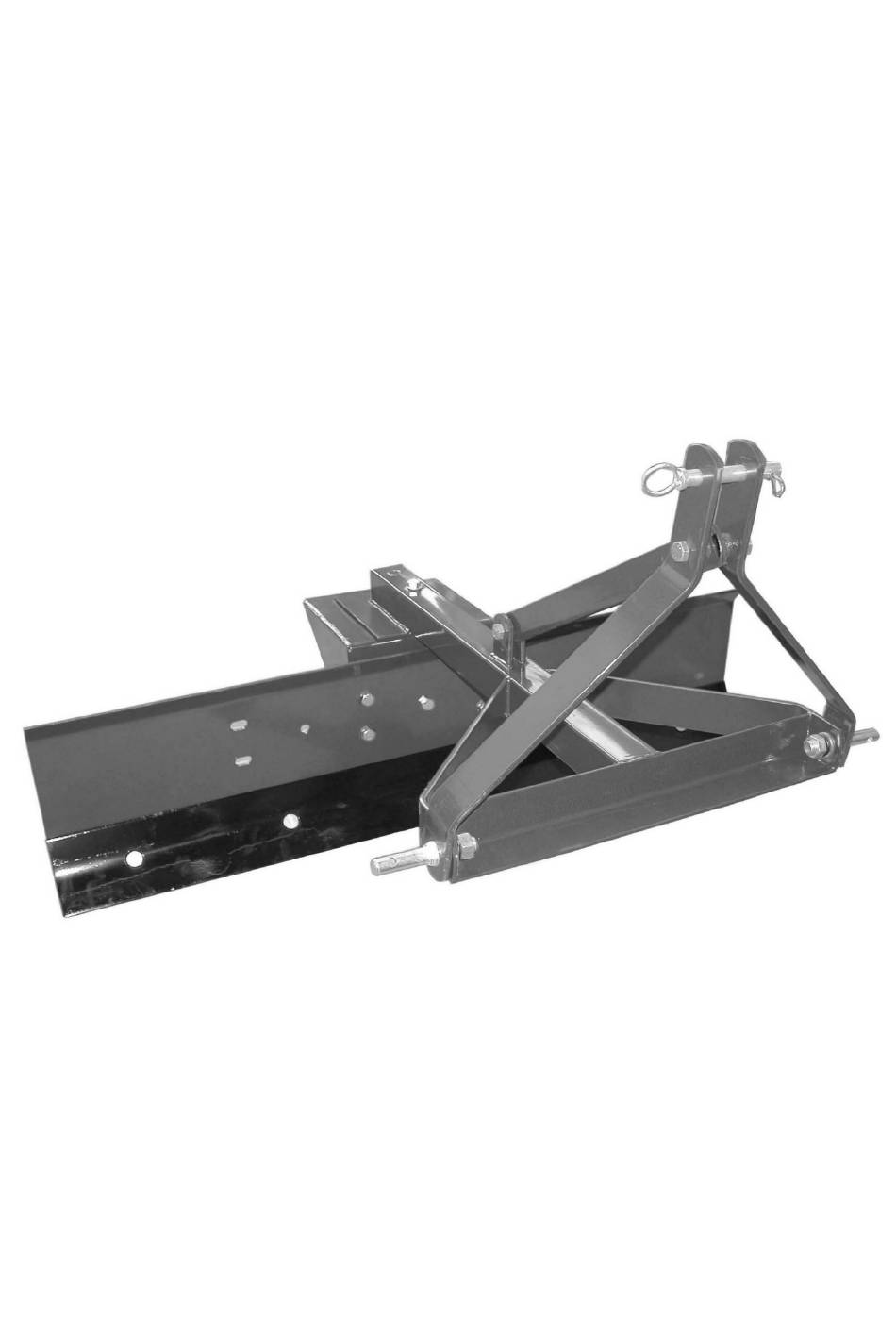

- Page 1 3 POINT GRADER BLADE Operation and Parts Manual Due to continuing improvements, actual product may differ slightly from product described herein...
- Page 2 CAUTION THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1. Select an area for assembly that clean and free of any debris which might cause persons working on the assembly to trip. 2. Do not lift heavy parts or assemblies. Use crane jack, tackle, fork trucks or other mechanical device.
- Page 3 ASSEMBLY 1.Take all the componets out from the packing crate. 2.Assembly the mounting weldment(part No.22) to the moldboard(part No.12), then Install main frame weldment(part No.1) to the mounting weldment Step 1 Step 2 Step 3 3.Assemble the side bars (lift arms) and braces with the main frame weldment. - 2 -...
- Page 4 3 Point Grader Blade Diagram - 3 -...
- Page 5 3 Point Grader Blade Parts List REF NO. Part NO. DESCRIPTION Q'TY 170401 4': 1 Main Frame Weldment 170501 5': 1 170601 6': 1 170402 4': 12 170502 Flat Washer,16 5': 13 170602 6': 14 170403 4': 12 Lock Washer,16 170503 5': 13 170603...
