Summary of Contents for Aetina DeviceEdge Mini Series
- Page 2 Document Change History Version Date Description Authors 2022/2/14 Initial Release. Rick Chiu...
- Page 3 Packing List Before setting up the system, please confirm that the following items are included with the product ： 1 x DB9 female to 15 pin-connector cable 1 x HDMI Type-D male to Type-A female cable 1 x 60W(12V @ 5A) power adapter ...
-
Page 4: Table Of Contents
Contents 1. Introduction ................................- 1 - 2. Product Features and Specifications ........................- 1 - 3. Product Overview ..............................- 3 - Front view ..............................- 3 - Rear view ..............................- 3 - External Connector Summary ........................- 4 - 3.3.1 External I/O Introduction ........................ -
Page 5: Introduction
With smart button for one-key recovery function to address critical system failure and real-time monitoring for status of device through the AIM (Aetina Intelligent Management), M1 is suitable for diverse applications such as smart city, AGV in intelligent warehousing and so on. - Page 6 1x Recovery button 1x Reset button 1x DB15 female connector (5x GPIO, 1x UART, 1x I2C, 1x CAN bus) 2x Antenna (optional) Power Input DC-in 12V~24V (DC Jack 4pin) Dimension 132.6 x 88.7 x 63.55mm (WxDxH) Mounting Deskmount Net Weight 970g Operating -20°C ~ +50°C...
-
Page 7: Product Overview
3. Product Overview 3.1 Front view 3.2 Rear view - 3 -... -
Page 8: External Connector Summary

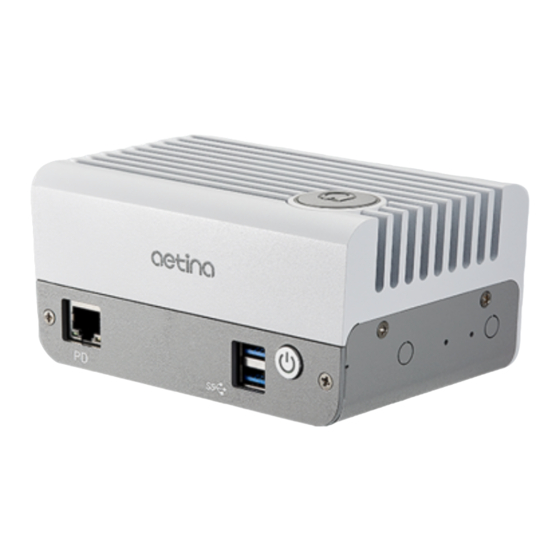

3.3 External Connector Summary Location External Connector Description - RJ-45 Gigabit Ethernet connector (PoE PD Front function) USB ports - Dual USB3.2 Gen1 Type-A connector Power on - Power pushbutton - USB Type-C OTG connector Expansion I/O - DB15 female connector Back HDMI - HDMI 1.4 with microHDMI Type-D connector... - Page 9 • Dual USB3.2 Gen1 Type-A connector Location Front Type Type-A USB connector Refer to USB Standard • Power pushbutton Location Front Type Pushbutton • HDMI 1.4 with microHDMI Type-D connector Location Rear Type HDMI horizontal connector Refer to microHDMI Type-D Standard •...
- Page 10 • USB Type-C (OTG only) Location Rear Type Type-C USB connector D- / D+ / VBUS / CC1 / GND (Refer to USB Type-C standard, but only use these five pin) • Power input connector Location Rear Type 12V to 24V 4-pin DC Jack •...
-
Page 11: Instruction
3.4 Instruction 3.4.1 Boot up a) Press the power button to power on the device and boot up when plugging in the power cable. 3.4.2 Recovery mode a) Press the iTons (AI button) first and hold it before the device is on. b) Press the power button to power on the device and boot up when plugging in the power cable. -
Page 12: Mechanical Dimensions
3.5 Mechanical dimensions - 8 -... - Page 13 - 9 -...
- Page 14 BIOS flashes, firmware upgrades, or the like. Aetina assumes no obligation to update or otherwise correct or revise this information. However, Aetina reserves the right to revise this information and to make changes from time to time to the content hereof without obligation of Aetina to notify any person of such revisions or changes.
