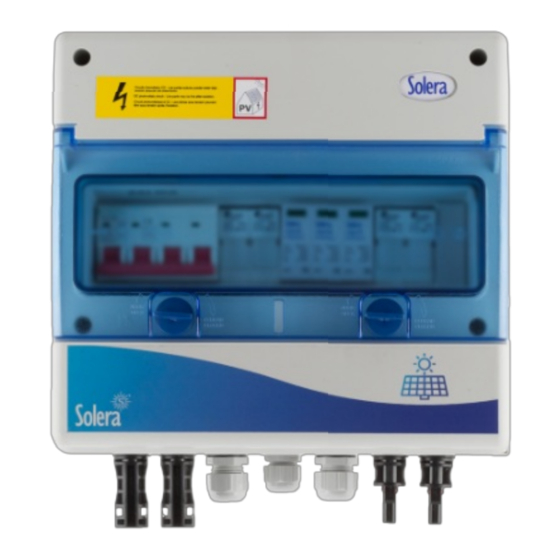

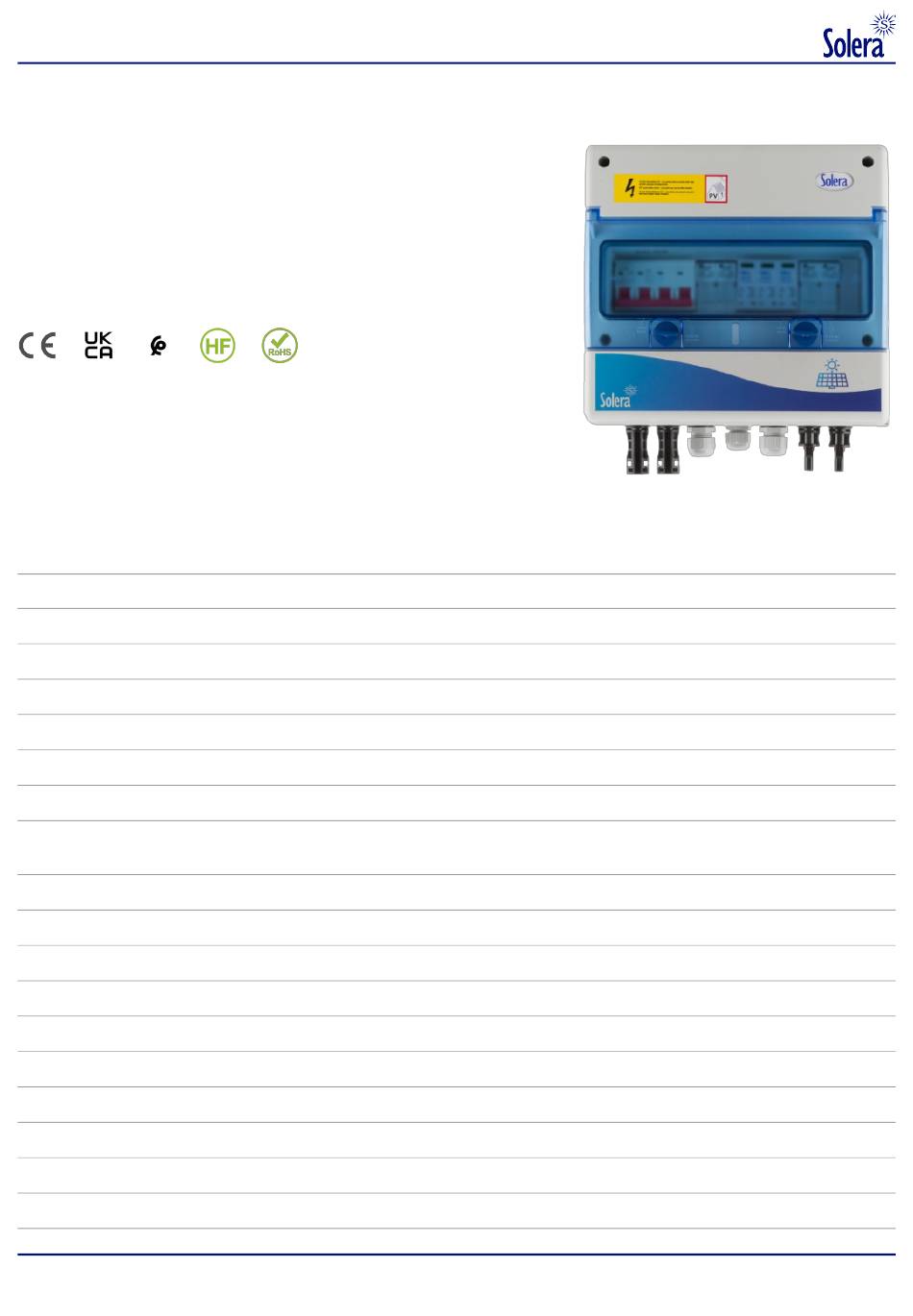

Connection and protection box for PV strings (2
inputs - 1 output)
DC connection and protection box for photovoltaic installations (2 inputs - 1
output). With 1250VDC transient surge protection, 16A 1000VDC fuses. Cut-off
switch-disconnector in 4P 63A 1000VDC output. Dimensions 270x250x160. With
MC4 multicontact connectors mounted for the input and cable gland mounted
for the output. Assembled grounding cable gland.
Common applications: Industrial environment

Features

Enclosure type
Installation method
Use
Location type
No. Modules (18 mm)
Modules per row
Metallic DIN profile
Dimensions outside (mm) (width x height
x depth)
Case material
Frame and door material
Case color
Cap color
Door color
Door opening
Ticket type
No. of inlets and size (mm)
Fixation System (For surface)
Sealable
Portalámparas y Accesorios Solera S.A. Pol. Ind. Fuente del Jarro C/ Villa de Madrid, 53 46988 Paterna (Valencia) España
+34 961 322 301 | solera@psolera.com
Box protection strings PV
Surface
Industrial
Exterior and interior
12
12
Yes
270x250x160
Insulation
Insulation
Grey (RAL7035)
Grey (RAL 7035)
Blue
Vertical
Pre-punched
SUP/INF: 4xØ20, 4xØ25, 6xØ40. LAT: 8xØ40
Inside with plug, outside with bracket or flange.
Yes
